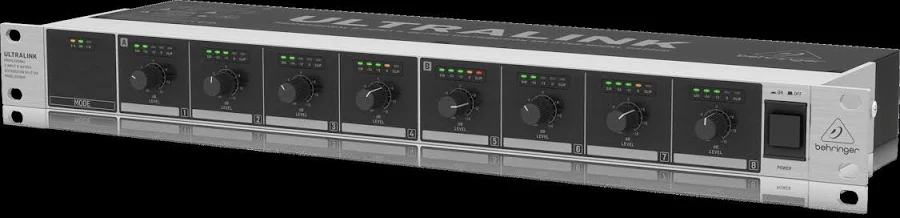

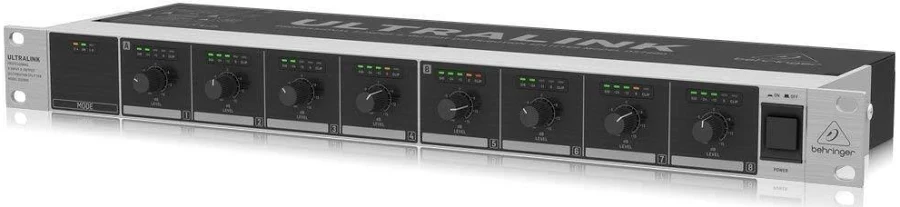

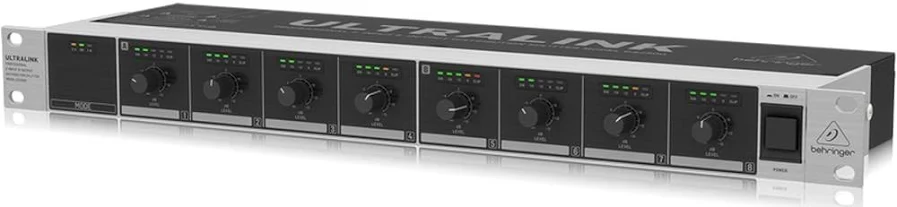

Behringer DS2800 2-In/8-Out Distribution Splitter

Behringer DS2800 2-In/8-Out Distribution Splitter
Behringer DS2800 is a line-level audio distribution unit with two inputs and eight outputs. It routes source signals to multiple downstream destinations in an installed or production system. Why Choose Behringer DS2800? DS2800 supports distribution of two source signals to four zones each, or a single signal across up to eight destinations in its documented modes. This makes it useful where several amplifiers, active speakers or other appropriate inputs need a controlled feed. It is not a power amplifier despite the inventory category, and its outputs do not drive passive loudspeakers directly. Choose the route and levels around the receiving equipment, label the destinations and test them independently before enabling the complete installation. Source distribution is different from selecting independent music for every zone. Key Features – Two source inputs: documented distribution arrangement. – Eight outputs: multiple downstream signal destinations. – Mode choice: dual four-zone or single eight-zone route. – Line-level role: separate speaker amplification required. Best Suited For
Line-level routing and loudspeaker-system configuration in an appropriately designed audio installation. Choose the device for its actual processing or distribution role before connecting downstream amplifiers. A rack processor can organise audio signals, while speaker-driving power still comes from the appropriate amplifier or active cabinet. Setup and Connection Guide
Turn down downstream levels and plan the signal flow before connecting the source. Use the documented balanced connections and select the required operating mode before testing individual outputs. Label each route, set initial levels conservatively and confirm the correct signal reaches the intended destination. Apply any crossover, delay or protection settings only around the actual speaker and amplifier requirements. Check the complete system quietly, then increase level while monitoring overload indicators. Keep a record of the working configuration for later setup and troubleshooting. Frequently Asked Questions
Can each DS2800 output power a passive speaker zone? No. It distributes line-level signals. Each passive speaker zone still needs suitable amplification and load planning. Feed an amplifier or other appropriate receiving input from the splitter. Can line-level processor outputs power passive loudspeakers directly? No. They supply an audio signal for appropriate downstream equipment. Use suitable power amplifiers or active speakers for loudspeaker-driving power, and keep line connections separate from amplified speaker wiring. Does more output level automatically improve the system sound? No. Excessive level can overload later equipment without increasing useful clarity. Set gain through the full signal path, leave headroom and resolve routing or placement problems before treating gain as the solution. Technical Specifications Specification
Detail Model
DS2800 Type
Line-level distribution splitter Inputs
2 Outputs
8 Modes
2 signals to 4 zones each, or 1 signal to 8 Speaker power output
No Downstream equipment
Suitable amplifier, active speaker or line input Installation
Match routing and levels to the system Explore Related Equipment
