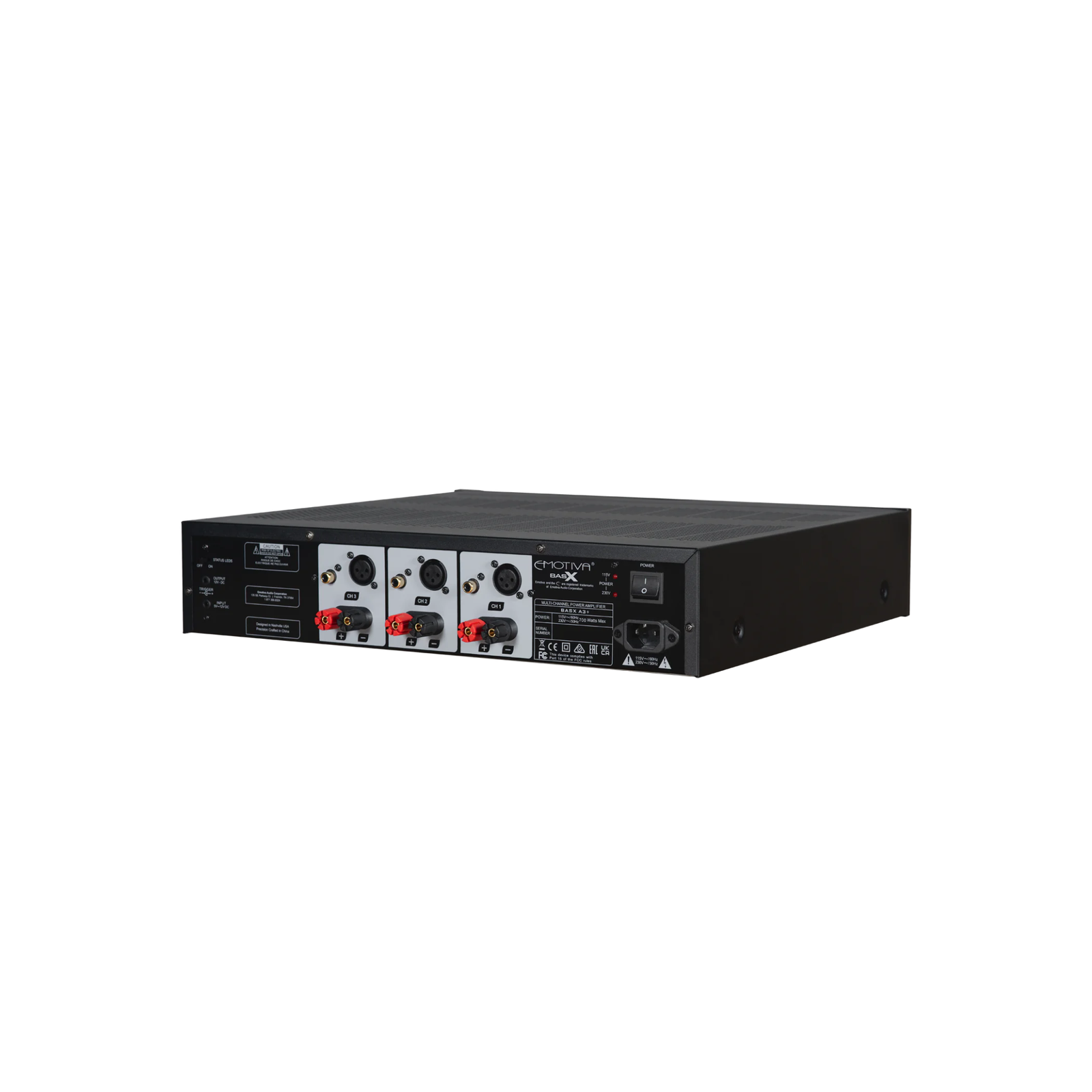

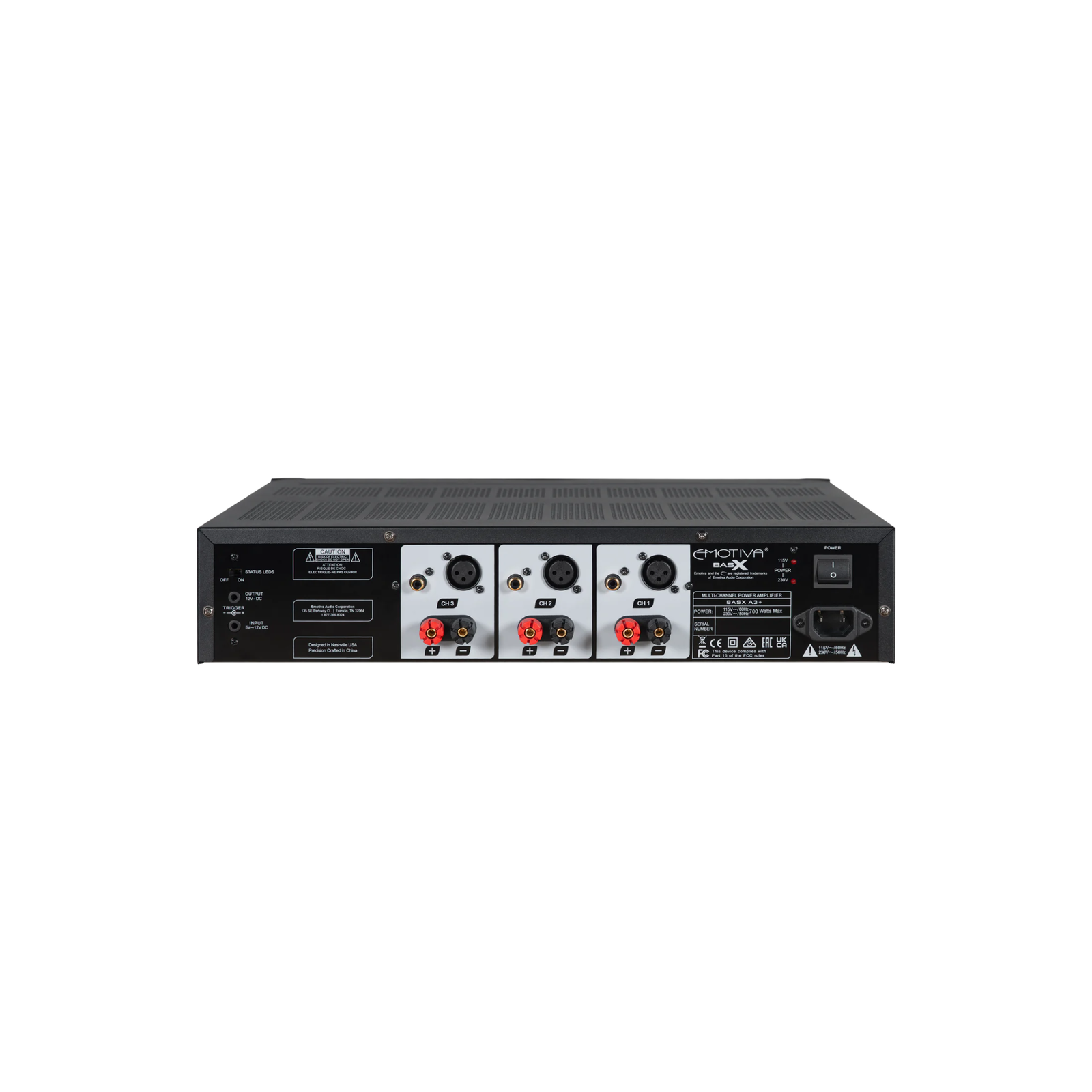

Emotiva BasX A3+ 3-Channel Power Amplifier

Emotiva BasX A3+ 3-Channel Power Amplifier

The Emotiva BasX A3+ is a three-channel power amplifier from the BasX Plus range, built for the front stage of a home theatre: left, centre and right. It delivers 140 watts per channel into 8 ohms, all channels driven, and adds balanced XLR inputs alongside the unbalanced RCA inputs of the standard BasX design. The intended role is straightforward. An AV receiver’s internal amplifiers are shared across every channel it drives; moving the three hardest-working channels to a dedicated power amplifier gives the front stage its own power supply and headroom, and frees the receiver to handle surround and height channels with less strain.

Key features

• 140 watts per channel into 8 ohms: Rated output with all three channels driven, for the front left, centre and right speakers.
• 200 watts per channel into 4 ohms: Higher output into lower-impedance speakers, all channels driven.
• Balanced and unbalanced inputs: XLR balanced inputs in addition to RCA, for connection to processors as well as receivers with pre-outs.
• Three dedicated channels: Matched amplification for the front stage, where dialogue and most soundtrack energy are concentrated.
• BasX Plus platform: Part of Emotiva’s updated BasX Plus line, positioned as an upgrade path from receiver amplification.
• Receiver-friendly integration: Connects to any AV receiver or processor with front-channel pre-amplifier outputs.
• Built for continuous theatre use: A power amplifier chassis designed to run the front stage through long, loud film sessions.
• Upgrade path: Pairs with other BasX amplifiers covering surround and height channels as a system expands.

Why a separate front-stage amplifier

In film soundtracks the centre channel carries almost all dialogue, while the left and right speakers handle music, effects and the widest dynamic swings. Those three channels therefore set the ceiling for how clean a system sounds at higher levels. When a receiver drives seven, nine or more speakers from one power supply, loud passages can compress and dialogue can harden. A dedicated three-channel amplifier removes the front stage from that shared budget. The audible result, in a correctly set up system, is dialogue that stays clear at reference-leaning levels and effects that retain their impact without the strained quality of an amplifier running out of current.

Connection and setup

Connection requires a receiver or processor with pre-amplifier outputs for the front channels: RCA or XLR cables carry the signal to the A3+, and speaker cables run from its terminals to the front three speakers. The receiver’s room calibration should be run again after installation so channel levels and distances reflect the new gain structure. Speaker sensitivity and impedance matter when judging any amplifier pairing; the A3+ ratings into both 8 ohm and 4 ohm loads make it suitable for the majority of home theatre front speakers, including lower-sensitivity designs that benefit most from external power.

Where it fits in a system

The A3+ is the natural step for owners who have upgraded their front speakers and feel the receiver has become the limiting factor, for projector-based theatres run at higher playback levels, and for systems planned in stages, where surround and height amplification can be added later with matching BasX models. It also serves a simple 3.1 music and film setup where only the front channels are used. Because it is a power amplifier only, it has no volume control, inputs switching or processing of its own; those functions remain with the receiver or processor feeding it.

Focused entirely on the three channels that matter most, the BasX A3+ is a single-box upgrade that continues to serve through receiver changes, since the front-stage power requirement of a room rarely shrinks as systems evolve.
