Behringer U-PHORIA UMC202HD USB Audio Interface

Behringer U-PHORIA UMC202HD USB Audio Interface

The Behringer U-PHORIA UMC202HD is a 2-in, 2-out USB audio interface that brings 24-bit and 192 kHz recording and Midas-designed microphone preamps to a home or project studio budget. Its two combo inputs accept microphones, line-level sources and instruments, each with its own gain control, pad switch and line/instrument selector, so a condenser microphone and a direct guitar, or a vocal and a keyboard, can be tracked at the same time. The HD suffix matters: unlike the entry-level models in the range, the UMC202HD supports sample rates right up to 192 kHz and a 110 dB dynamic range on its outputs, giving clean, detailed conversion for recording, mixing and high-quality playback through monitors or headphones.

Housed in an impact-resistant metal chassis, the interface is bus powered over USB and works with Mac and Windows recording software, making it equally at home as a first studio interface or as a portable recording front end for a laptop.

Key features

• 2 Midas-designed microphone preamps with switchable 48 V phantom power
• 24-bit conversion at sample rates up to 192 kHz
• Two combo XLR and TRS inputs for microphone, line and instrument sources
• Per-input pad switch and line/instrument selector
• Zero-latency direct monitoring with a dedicated switch
• Balanced stereo main outputs and a separate headphone output with level control
• USB bus powered with an impact-resistant metal chassis

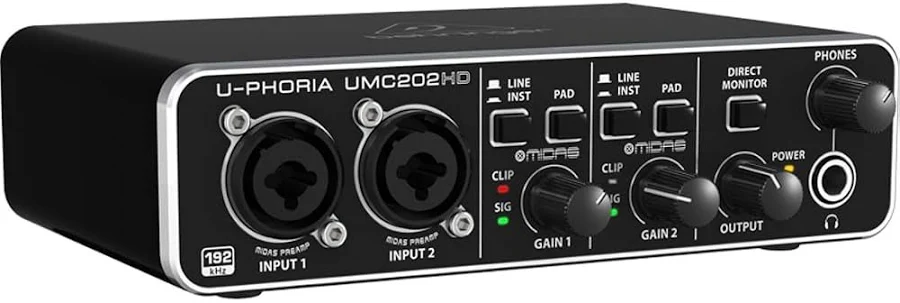

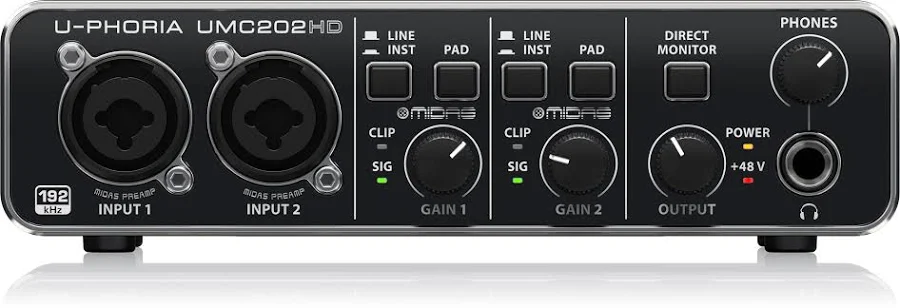

Inputs and preamps

Each of the two inputs uses a combination XLR and quarter-inch TRS socket, so an XLR microphone cable or a jack lead connects without adapters. The Midas-designed preamps present a 3 kilohm impedance to microphones and 1 megaohm to instruments, with maximum input levels of -4 dBu for microphones, +20 dBu for line sources and -3 dBu for instruments, and the switchable pad on each channel tames loud sources such as close-miked guitar amplifiers or drums. Input frequency response extends from 10 Hz to 50 kHz, comfortably beyond the audible band, so nothing in the recorded range is rolled off. Signal and clip indicators beside each gain control make level setting straightforward: play the loudest part of the performance, raise the gain until the signal light is active, and keep the clip light off.

Monitoring and outputs

The main outputs are a pair of balanced quarter-inch TRS sockets feeding powered studio monitors or an amplifier, with a maximum output level of +3 dBu and a dynamic range of 110 dB A-weighted, so playback stays quiet and clean between musical passages. A front-panel headphone output with its own level control covers tracking and late-night mixing. The direct monitor switch routes the input signal straight to the outputs and headphones with zero latency, which is the mode to use while recording so the performer hears themselves without the delay of a round trip through the computer; switch it off for mixing, when only playback should be heard. Separate output and phones level controls mean monitor volume and headphone volume can be set independently for comfort.

Compatibility and use in the studio

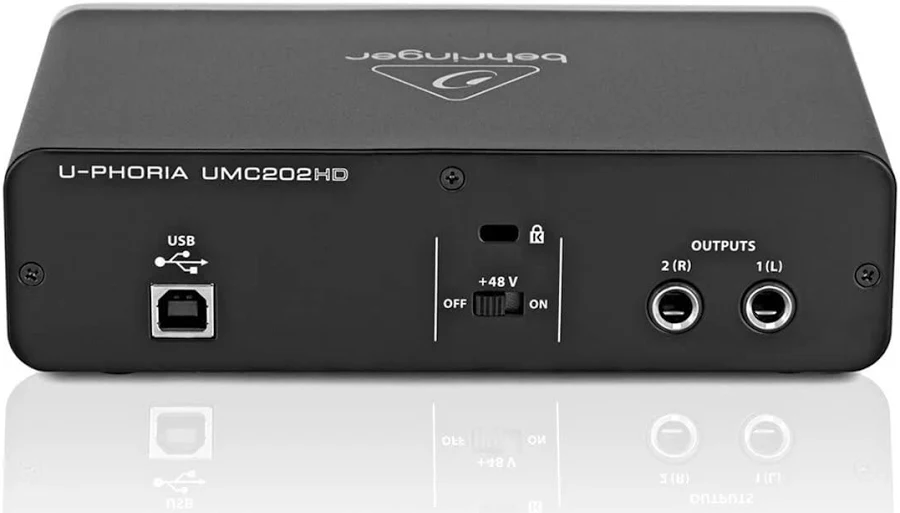

The UMC202HD connects over USB 2.0 with a Type-B socket and draws its power from the computer, consuming a maximum of 2.5 watts, so there is no separate supply to plug in. On Mac it works with the built-in Core Audio support, while Windows uses Behringer’s downloadable driver for low-latency performance in a DAW. Supported sample rates span 44.1, 48, 88.2, 96, 176.4 and 192 kHz, and there is no need to record at the maximum rate: choose the rate that suits the project, with 48 kHz a sensible default for video work and 44.1 kHz for music releases. A Kensington security slot is a thoughtful addition for shared spaces and classrooms. At 170 mm wide and about 0.54 kg, the metal-cased UMC202HD survives being moved between rooms and bags in a way plastic interfaces do not, and it remains one of the most direct routes to clean two-channel recording for singers, guitarists, podcasters and voice artists starting a studio.
