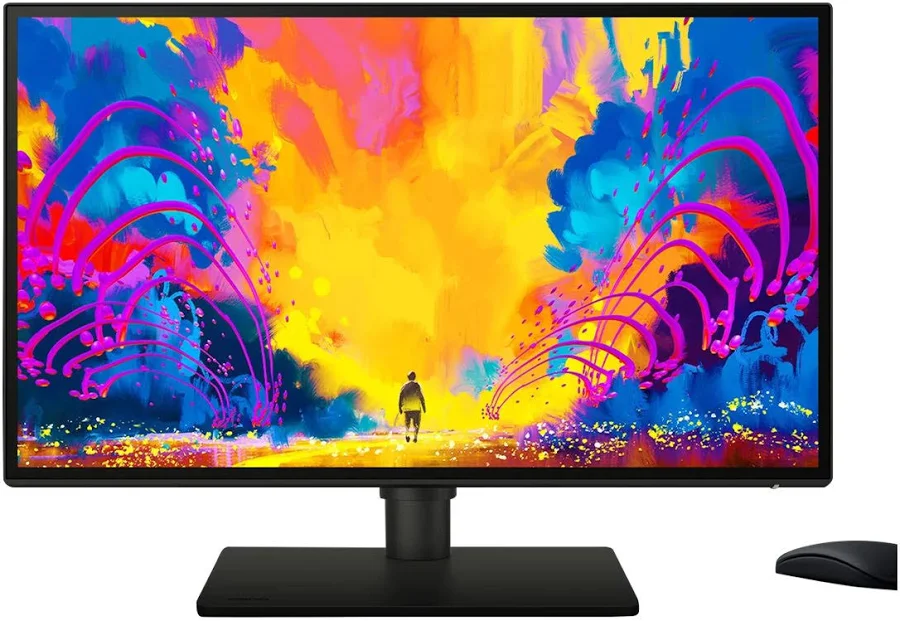

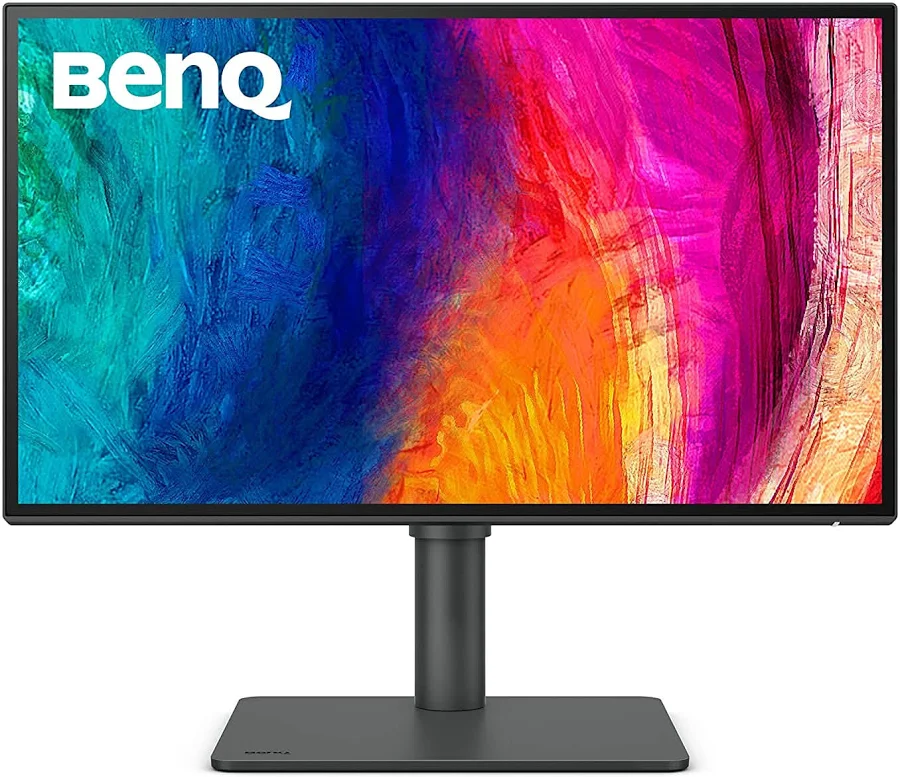

BenQ PD2506Q 25-Inch QHD USB-C Designer Monitor

BenQ PD2506Q 25-Inch QHD USB-C Designer Monitor

The BenQ PD2506Q is a 25 inch designer monitor in BenQ’s DesignVue PD series, built for photographers, graphic designers, video editors and CAD users who want colour-managed QHD resolution in a compact footprint. Its IPS panel runs at a native 2560 x 1440, which on a 25 inch screen gives a noticeably finer pixel pitch than the same resolution on a 27 inch display, so fine detail and small interface text stay sharp at normal desk distances. Colour coverage spans 100 percent sRGB, 100 percent Rec.709 and 95 percent DCI-P3, each unit leaves the factory calibrated with a Delta E average of 3 or less and a calibration report in the box, and the panel is Pantone Validated and Calman Verified. A single USB-C cable carries the picture, USB data and up to 65 W of charging for a connected laptop.

Key features

• 25 inch IPS panel with 2560 x 1440 QHD native resolution at 60 Hz
• 100 percent sRGB and Rec.709, 95 percent DCI-P3 colour coverage
• Factory calibrated, Delta E average of 3 or less, calibration report included
• USB-C with DisplayPort Alt Mode, data and 65 W power delivery
• HDR10 with VESA DisplayHDR 400, 350 nits typical and 400 nits HDR peak brightness
• DisplayPort output with MST for daisy-chaining a second monitor
• Built-in KVM switch for sharing peripherals between two computers
• Designer picture modes including CAD/CAM, Animation and Darkroom

Colour workflow

BenQ’s AQCOLOR approach ties the panel, the factory calibration and the software together. The PD2506Q ships with an individual calibration report, supports ICC profiles through ICCsync in the Display Pilot software, and works with BenQ’s calibration tooling when a hardware calibrator is added later. Picture modes matter in daily work: sRGB and Rec.709 modes lock the panel to the delivery standard, the M-Book mode approximates MacBook colour for designers working across both screens, CAD/CAM raises contrast on fine lines, Animation lifts shadow detail in keyframes, and Darkroom sets a low-brightness working point for grading and retouching in dim rooms. Uniformity technology keeps brightness and colour consistent across the panel, which is what makes soft gradients and flat brand colours trustworthy.

Connectivity and desk setup

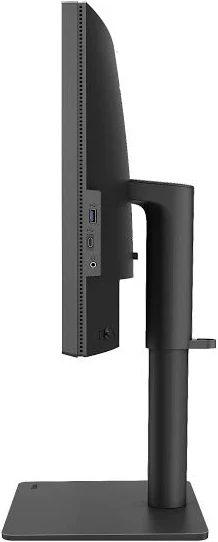

Inputs cover HDMI 2.0, DisplayPort 1.4, Mini DisplayPort 1.4 and USB-C, with a DisplayPort output for MST daisy-chaining where the host supports it. The USB hub and KVM switch let a keyboard, mouse and accessories follow whichever computer is active, which suits a laptop-and-desktop desk. Built-in 2 x 2.5 W speakers handle calls and reference audio. The stand adjusts through 110 mm of height, tilts from minus 5 to 20 degrees, swivels and pivots 90 degrees into portrait for long documents and vertical layouts, and the panel also accepts a 100 x 100 mm VESA mount.

Viewing comfort

The flicker-free backlight and low blue light modes reduce eye strain over long editing sessions, and Brightness Intelligence senses the room light and adjusts the screen to match. The matte anti-glare surface keeps reflections from windows and ceiling lights out of colour-critical work.

The PD2506Q is a QHD monitor, not a 4K one, and that is its point: it delivers a calibrated, wide-gamut designer panel, single-cable laptop docking and a fully adjustable stand at a size and resolution that many desks and graphics cards handle comfortably all day.
