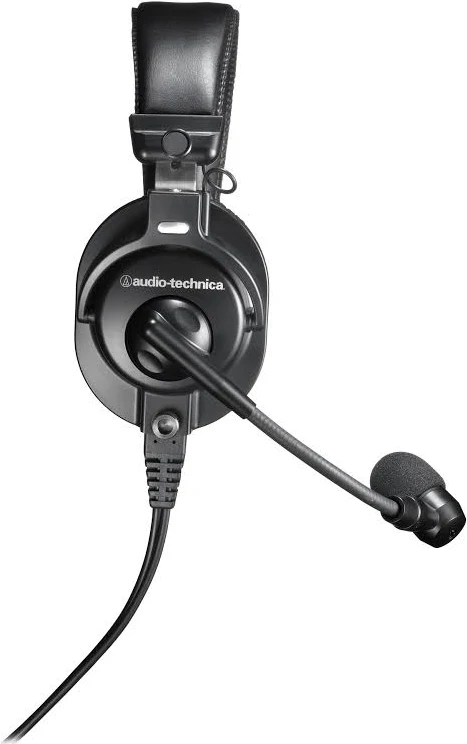

Audio-Technica BPHS1 is a closed-back over-ear broadcast headset with a cardioid dynamic boom microphone. It combines speech capture and stereo headphone monitoring for commentary, announcing, interviews and suitable production work.

Why Choose Audio-Technica BPHS1?

Its microphone boom can be positioned on either side, allowing the operator to keep a repeatable speech distance while listening to the programme feed. The 40mm headphone drivers provide the monitoring section, while a detachable cable separates the microphone and headphone connections. Select the headset around the console or interface inputs and outputs instead of assuming it behaves like a single-plug USB gaming headset. Fit and the earcup seal also influence isolation in a busy venue.

Key Features

• Cardioid dynamic boom: close speech capture for commentary.
• Closed-back over-ear cups: headphone monitoring arrangement.
• Reversible boom position: can be worn on either side.

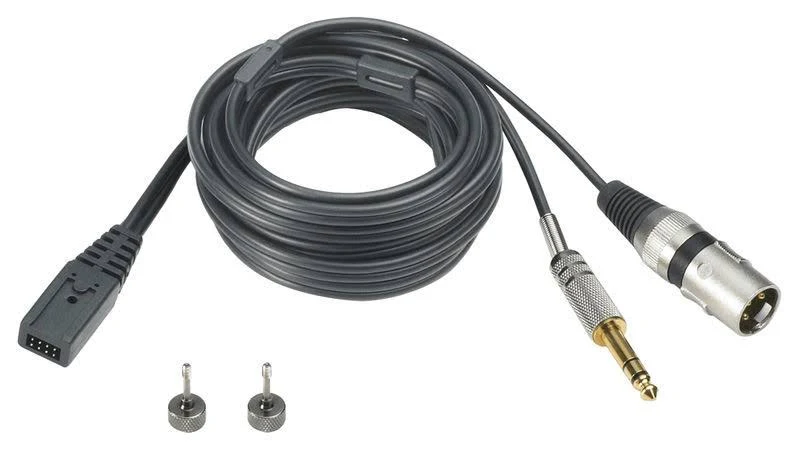

• Separate output leads: XLR microphone and 6.3mm headphone connections.

Best Suited For

Commentary, broadcast, interviews and voice production needing headphone monitoring and a close boom microphone. Choose the headset around the receiving equipment’s microphone input and headphone output, as these are separate audio paths. Stable microphone distance helps keep speech level consistent when the operator turns their head.

Setup and Connection Guide

Connect the microphone lead to a suitable mic input and the headphone lead to an appropriate monitoring output. Start both controls low, adjust the headband and position the boom beside the mouth rather than directly in the breath stream. Set microphone gain during normal and louder speech, then check headphone balance and talkback routing. Use the documented windscreen and support the cable so it does not pull on the headset. Record a short test and listen for plosives, unwanted room pickup and doubled monitoring.

Frequently Asked Questions

Is BPHS1 a direct USB headset for a laptop?

It uses separate analogue microphone and headphone connections. A laptop workflow needs suitable receiving equipment for both paths; a simple plug adapter does not provide microphone conversion or the required monitoring route.

Can the headset’s XLR microphone plug carry the headphone audio too?

The microphone and headphone leads serve separate functions. The XLR output feeds the mic input, while the headphone plug receives monitoring audio. A connector adapter alone does not merge these paths into a USB headset.

Does the dynamic boom microphone need phantom power?

A passive dynamic microphone does not require phantom power for normal operation. Follow the headset and receiving equipment guidance, especially when adapters or other powered accessories are introduced into the audio chain.

Technical Specifications
