Beyerdynamic M 90 PRO X Cardioid Condenser Microphone

Beyerdynamic M 90 PRO X Cardioid Condenser Microphone

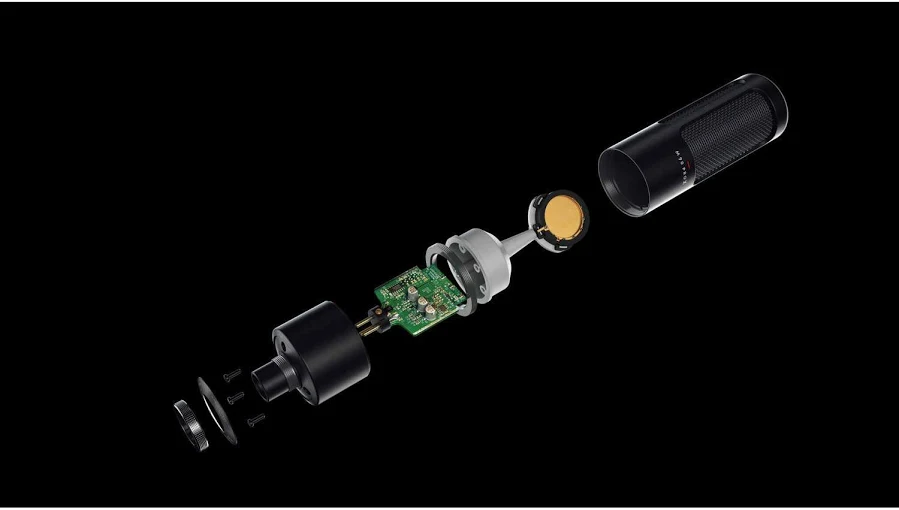

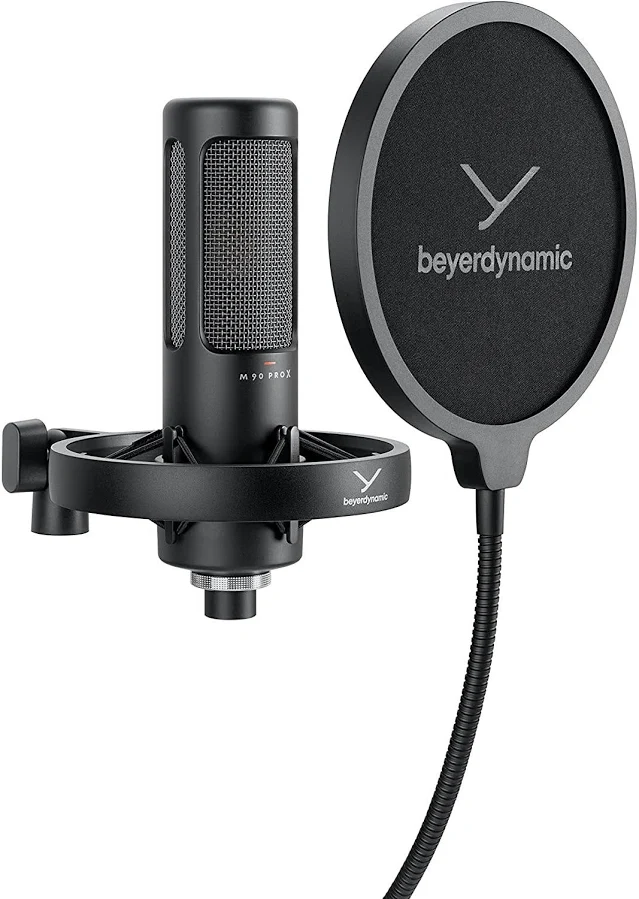

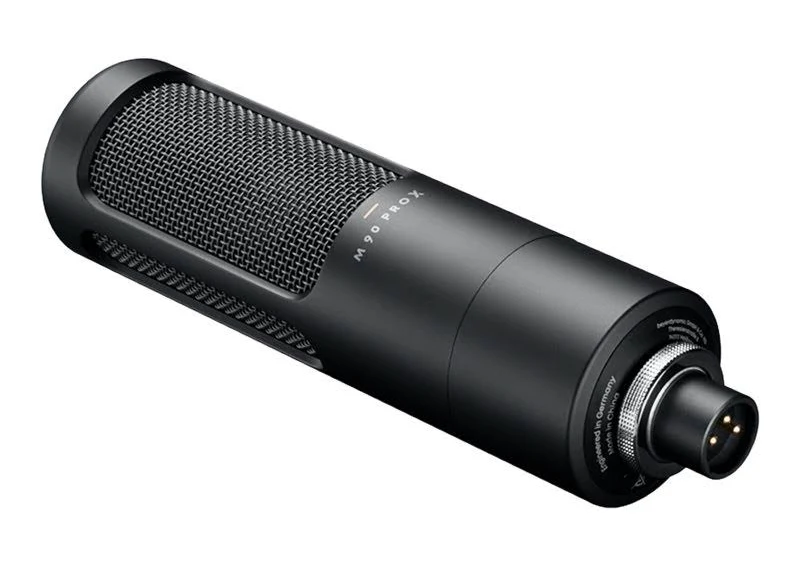

Beyerdynamic M 90 PRO X is a wired cardioid condenser microphone for studio speech and recording. Why Choose Beyerdynamic M 90 PRO X? The M 90 PRO X is a side-address condenser microphone for studio recording. It requires compatible phantom power and a suitable XLR input. Its electrical and positioning needs differ from the dynamic M 70 PRO X, even though the two share the PRO X family name. Match the holder and cable to the actual recording or performance position. Begin with clear, consistent microphone technique and an unclipped input signal before adding equalisation or dynamics processing. Key Features – Condenser microphone capsule. – Cardioid pickup pattern. – Balanced 3-pin XLR connection. – Phantom power required. Best Suited For
Capturing speech, vocals or the model’s specified sound source through a compatible recording or PA input. Microphone placement should be chosen before adding gain or equalisation: distance and angle change the balance between the wanted source, room sound and background noise. Match the pickup pattern to the working environment. A microphone is one part of the signal path; the preamplifier, cable, monitoring arrangement and room also affect the result. Setup and Connection Guide

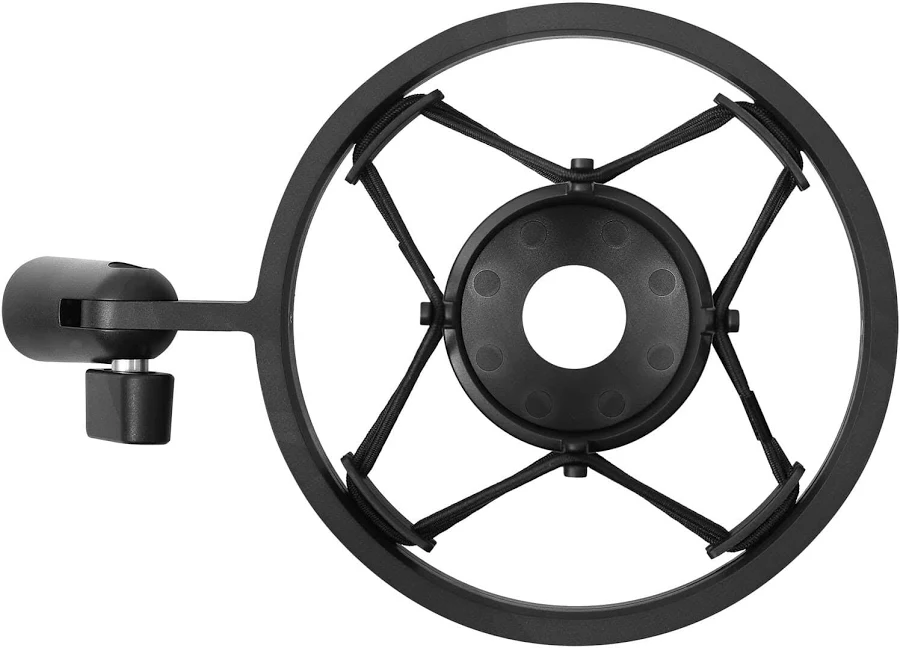

Reduce input gain and speaker levels before connecting a suitable balanced XLR cable. Secure the microphone with a compatible holder and keep the cable clear of the performer. Enable phantom power only when required by the exact model, after checking the connected equipment. Establish a repeatable source distance, then raise preamplifier gain while monitoring the loudest expected passage. Leave headroom and listen for plosives, handling noise and room reflections. Adjust position before relying on heavy processing. In a PA system, position monitors with reference to the microphone pickup pattern and raise levels gradually. Disconnect and store the microphone dry after use. Frequently Asked Questions
What input does M 90 PRO X need? Use a compatible XLR microphone input with appropriate gain. This condenser model also requires the documented phantom supply; connect it with levels reduced before enabling power. Does an XLR microphone connect directly to a computer USB port? Not with an ordinary passive cable. Use an appropriate microphone preamplifier and audio interface, or another supported device that provides the required input and power. Does a directional microphone eliminate all feedback and background sound? No. The pickup pattern helps manage unwanted sound, but source distance, speaker placement, room acoustics and system gain still determine the practical result. Technical Specifications Specification
Detail Model
M 90 PRO X Transducer
Condenser Polar pattern
Cardioid Manufacturer frequency reference
20–20000 Hz Connector
3-pin XLR Power
20–52V phantom power Explore Related Equipment
Compare Beyerdynamic M 70 PRO X Cardioid Dynamic Microphone when checking the model, connections and installation requirements for your system.
