AKG DST99 S Dynamic Desktop Paging Microphone

AKG DST99 S Dynamic Desktop Paging Microphone

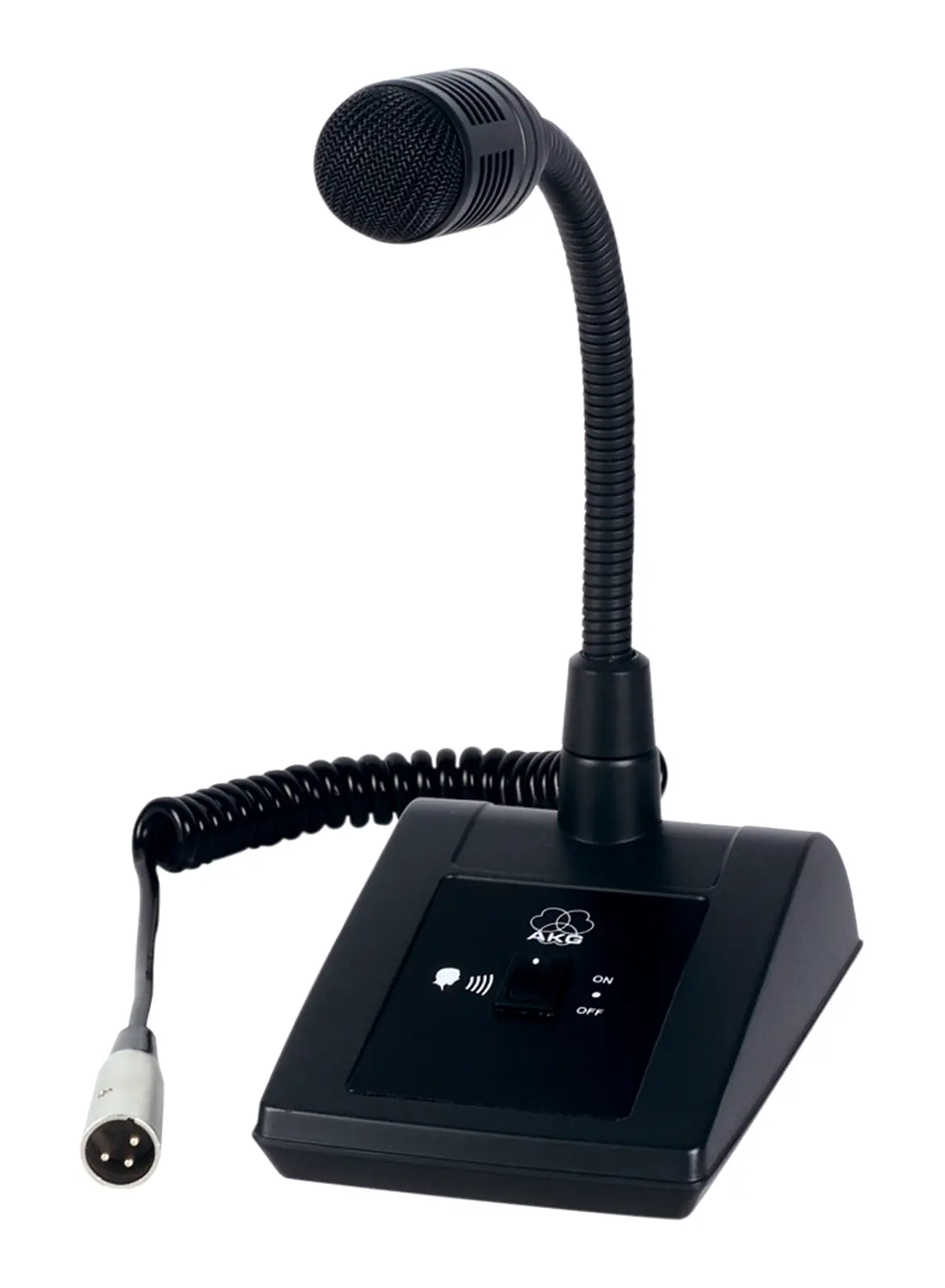

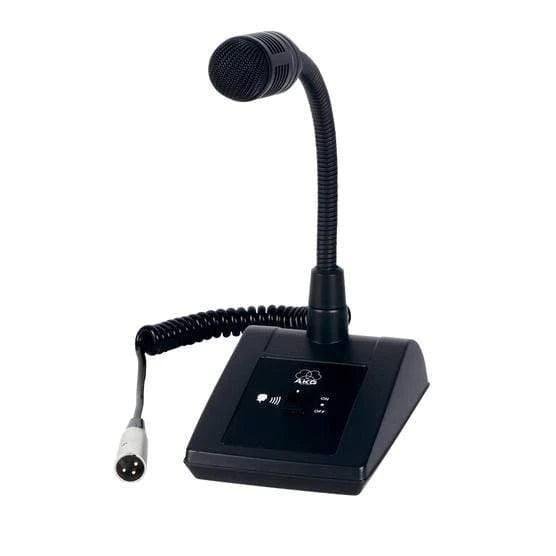

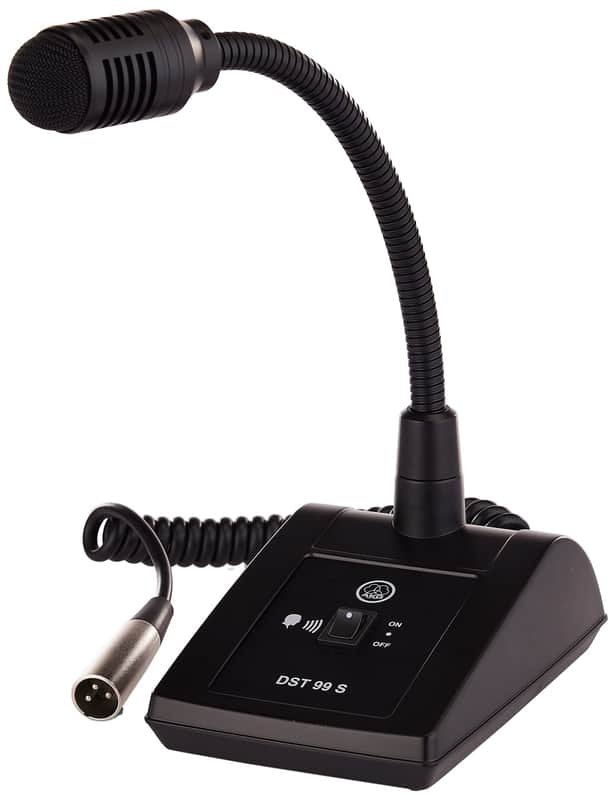

The AKG DST99 S is a dynamic paging microphone supplied as a complete desktop system: a cardioid gooseneck microphone on a weighted table stand with an on/off switch built into the base and a coiled cable with a 3-pin XLR connector. It is part of AKG’s 99-series installed sound range, designed for announcements and speech in public address applications. As a dynamic microphone it needs no phantom power or batteries, connects directly to a mixer or amplifier input, and is built with a rugged gooseneck and all-metal body for daily use at reception desks, service counters and announcement points.

Key features

• Dynamic cardioid capsule tailored for speech and paging
• Frequency bandwidth of 150 Hz to 15,000 Hz for clear announcements
• Complete desktop system with weighted table stand included
• On/off switch built into the table stand base
• Rugged gooseneck and all-metal body for daily installed use
• Coiled cable with balanced 3-pin XLR connector
• No phantom power or batteries required

Speech-focused sound

The DST99 S uses a dynamic transducer with a cardioid polar pattern. Its audio frequency bandwidth of 150 Hz to 15,000 Hz is shaped for the human voice, concentrating on the frequency range that carries speech intelligibility rather than extended musical bass or treble. Sensitivity is rated at 2.2 mV/Pa. The cardioid pattern picks up the announcer in front of the microphone while reducing sound from the sides and rear, which helps limit background noise and feedback in busy public spaces where loudspeakers may be nearby. Maximum SPL is rated at 133 dB, giving ample headroom for close, emphatic announcements.

Desktop stand and switching

The microphone is mounted on a gooseneck attached to its table stand, so the capsule can be positioned toward the speaker and adjusted as different users step up to make announcements. The stand provides a stable base on a desk or counter, and the on/off switch built into the base allows the microphone to be left connected and muted between announcements, reducing handling and background noise on the public address system when the microphone is not in use. This plug-and-use arrangement needs no assembly beyond positioning the gooseneck and connecting the cable.

Connectivity and powering

Output is balanced through a 3-pin XLR male connector on the supplied coiled cable, which stretches in use and retracts neatly on the desk. Electrical impedance is 530 ohms, with a recommended load impedance of 2,000 ohms, matching standard microphone inputs on mixers, amplifiers and paging processors. Because the capsule is dynamic, no phantom power, battery or external supply is required, which simplifies permanent installation and reduces maintenance at unattended announcement points.

Applications

Typical uses include paging and announcements in retail stores, warehouses, factories, schools, hospitals, transport facilities, houses of worship, offices and reception areas, as well as talkback and announcement duties in commercial and industrial public address systems. The matte black, all-metal construction is designed to withstand repeated daily handling in these environments.

If a fixed announcement point needs a microphone that is always ready, clearly reproduces speech and requires no powering or setup, the AKG DST99 S provides the microphone, stand, switch and cable as one purpose-built desktop paging solution.
