Milestone MP-DA2UHD-H2 HDMI Distribution Amplifier 1×2
The Milestone Pro MP-DA2UHD-H2 is a 1×2 HDMI distribution amplifier that sends one HDMI source to two displays simultaneously, at full quality on both. Built on the HDMI 2.0 platform with 18 Gbps bandwidth, it supports resolutions up to 4Kx2K at 60Hz with 4:4:4 chroma and 8-bit colour, and it complies with HDCP 2.2 and 1.4 so protected content from streaming boxes, consoles, players and PCs displays without handshake errors.
It is the straightforward solution wherever the same picture is needed in two places at once: a projector and a confidence monitor in a classroom, a TV and a second screen in another zone of a home, or duplicated displays in a small retail or signage setup.
Key Features
1 HDMI input distributed to 2 HDMI outputs at the same time
HDMI 2.0, 18 Gbps – up to 4K at 60Hz 4:4:4 8-bit on both outputs
HDCP 2.2 and 1.4 compliant, CEC supported
Built-in downscaling for systems mixing 4K and 1080p displays
EDID management via 4-pin DIP switch, with HDCP mode selection
Micro-USB port for firmware upgrades
Front-panel LEDs for power, input and output status
Why downscaling and EDID management matter

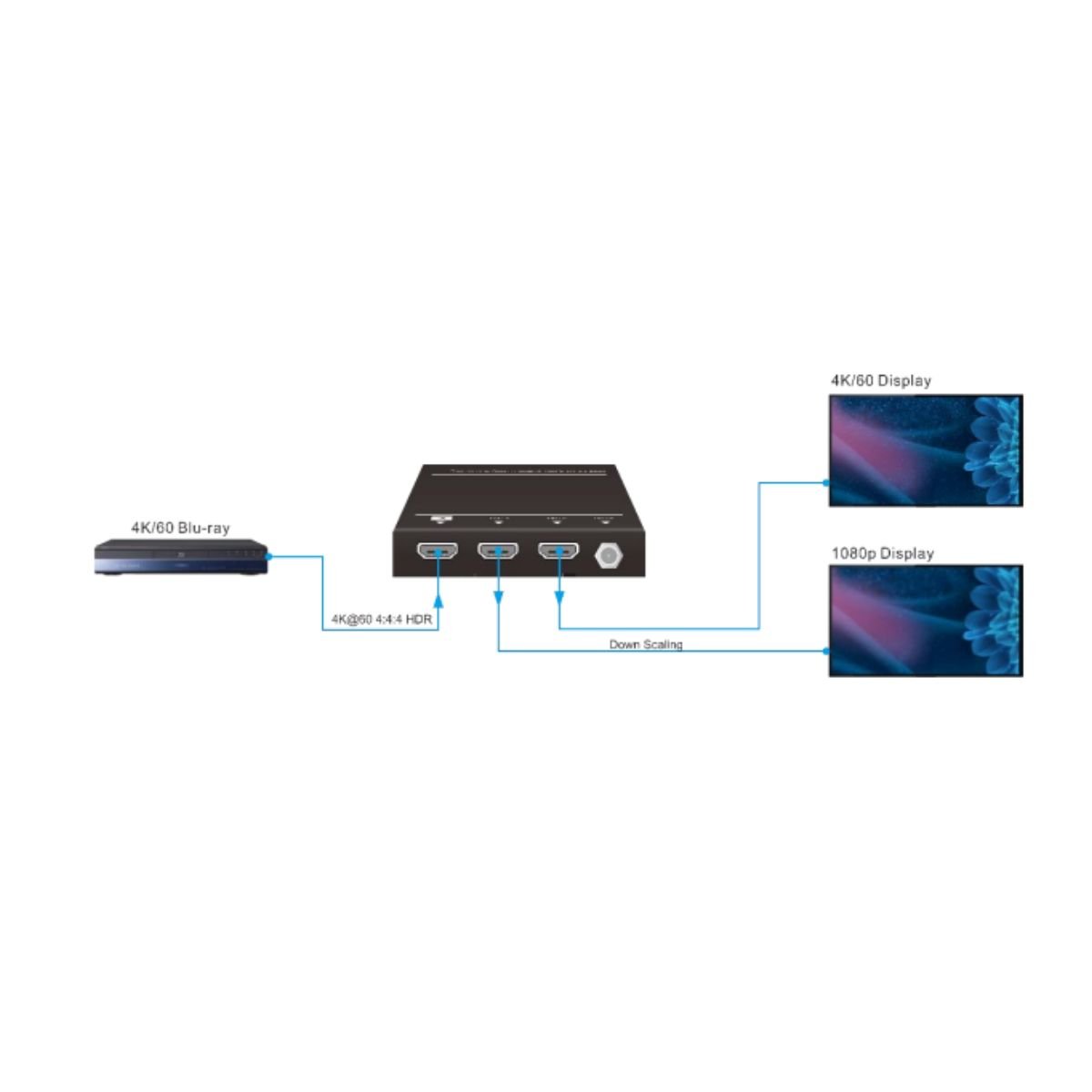

When two displays of different capability share one source, the source usually falls back to the lowest common resolution, so one older 1080p screen can hold back a 4K display. The MP-DA2UHD-H2 down-scales the output for the lower-resolution display while the 4K screen keeps its full signal. The DIP-switch EDID control complements this by letting the installer fix the EDID presented to the source, avoiding the blank screens and renegotiation flicker that occur when the source simply reads whichever display responds first.
Where it is used
Common applications include home theatre second zones, classrooms and meeting rooms with a main screen plus monitor, small digital signage pairs, showroom demos and control-room duplication. The amplifier supports HDMI cable runs up to 5 m at 4K 60Hz 4:4:4 and up to 20 m at 1080p, and it is powered by the included 5V DC adapter.
Complete technical data – resolutions, bandwidth, cable lengths, operating conditions and power – is given in the specifications table on this page.
Additional Information
Specifications
Brand
Milestone
Configuration
1 In 2 Out
Type
HDMI Distribution Amplifier
HDMI Inputs
1 x HDMI, Type-A female
HDMI Outputs
2 x HDMI, Type-A female
Max Output Resolution
Up to 4Kx2K at 60Hz, 4:4:4, 8-bit
Max Input Resolution
Up to 4Kx2K at 60Hz, 4:4:4, 8-bit
HDMI Standard
HDMI 2.0
HDCP Compliance
HDCP 2.2 and 1.4
Bandwidth
18 Gbps
CEC
Supported
Downscaling
Yes - per-output down-scale for mixed-resolution displays
EDID Management
4-pin DIP switch for EDID and HDCP mode selection
Firmware Port
Micro-USB port for firmware upgrade
HDMI Cable Length
4K at 60Hz 4:4:4 up to 5 m, 4K 4:2:0 up to 15 m, 1080p up to 20 m
Operating Temperature
-10 to +55 degrees C
Storage Temperature
-25 to +70 degrees C
Relative Humidity
10% - 90%
Power Supply
100-240V AC input, 5V DC 1A output adapter (included)
LED Indicators
Power, input and per-output status LEDs
Model / SKU
MILESTONE-HDMI-DISTRIBUTOR-MP-DA2UHD-H2
Category
Switchers
Condition
Brand new, sealed box
Warranty
Official manufacturer warranty (India)
GST invoice
Yes, input credit available
