Epson EB-992F Full HD 3LCD Projector

Epson EB-992F Full HD 3LCD Projector

The Epson EB-992F is a Full HD projector built on Epson’s 3LCD technology, designed for meeting rooms, classrooms and training spaces where the lights stay on and the image still has to remain readable. It produces 4,000 lumens of both colour light output and white light output, so brightness does not come at the expense of washed-out colour. With a native resolution of 1920 by 1080, a 16,000:1 contrast ratio and a lamp rated for thousands of hours, it is a practical, network-ready projector for daily presentation work as well as video playback.

Key features

• 4,000 lumens colour and white output: Equal colour and white brightness from the 3LCD system, keeping slides, charts and video vivid in lit rooms.
• Full HD 1920 x 1080 resolution: Native widescreen resolution for sharp text, detailed spreadsheets and clean video playback.
• 16,000:1 contrast ratio: Strong separation between dark and bright areas of the image for presentations and film content.
• Long lamp life: 230 W UHE lamp rated at 6,500 hours in normal mode and up to 17,000 hours in economy mode.
• Wireless and Miracast: Built-in wireless LAN with Miracast screen mirroring and Epson iProjection support for multi-device presenting.
• Flexible keystone correction: Automatic vertical and manual horizontal correction of plus or minus 30 degrees, plus a horizontal slide keystone control.
• 16 W built-in speaker: Integrated sound for presentations and video in rooms without a separate audio system.
• Large image range: Projects from 30 inches to 300 inches with a 1.32 to 2.14 throw ratio and 1.6 times optical zoom.

Image quality in lit rooms

Many projectors quote a single brightness figure that describes white output only, leaving colour looking muted. The EB-992F specifies 4,000 lumens for colour as well as white, which is the direct benefit of the three-chip 3LCD design: red, green and blue are produced continuously rather than sequentially. Colour reproduction extends to up to 1.07 billion colours with 10-bit processing, and colour modes include Dynamic, Presentation, Cinema, sRGB and Blackboard, so the image can be matched to the room and the material being shown, from data-heavy slides to video.

Installation and positioning

The lens offers a focal length of 18.2 to 29.2 mm with an F-number of 1.51 to 1.99 and manual focus. A 60-inch screen can be filled from 1.76 to 2.86 metres, giving useful placement flexibility on a table or a ceiling mount. Automatic vertical keystone, manual horizontal keystone and the sliding horizontal keystone corrector make it easier to square the image when the projector cannot sit perfectly on axis. Quick Corner, split-screen display and direct power on and off functions further suit shared spaces where different users set up quickly throughout the day.

Connectivity and network use

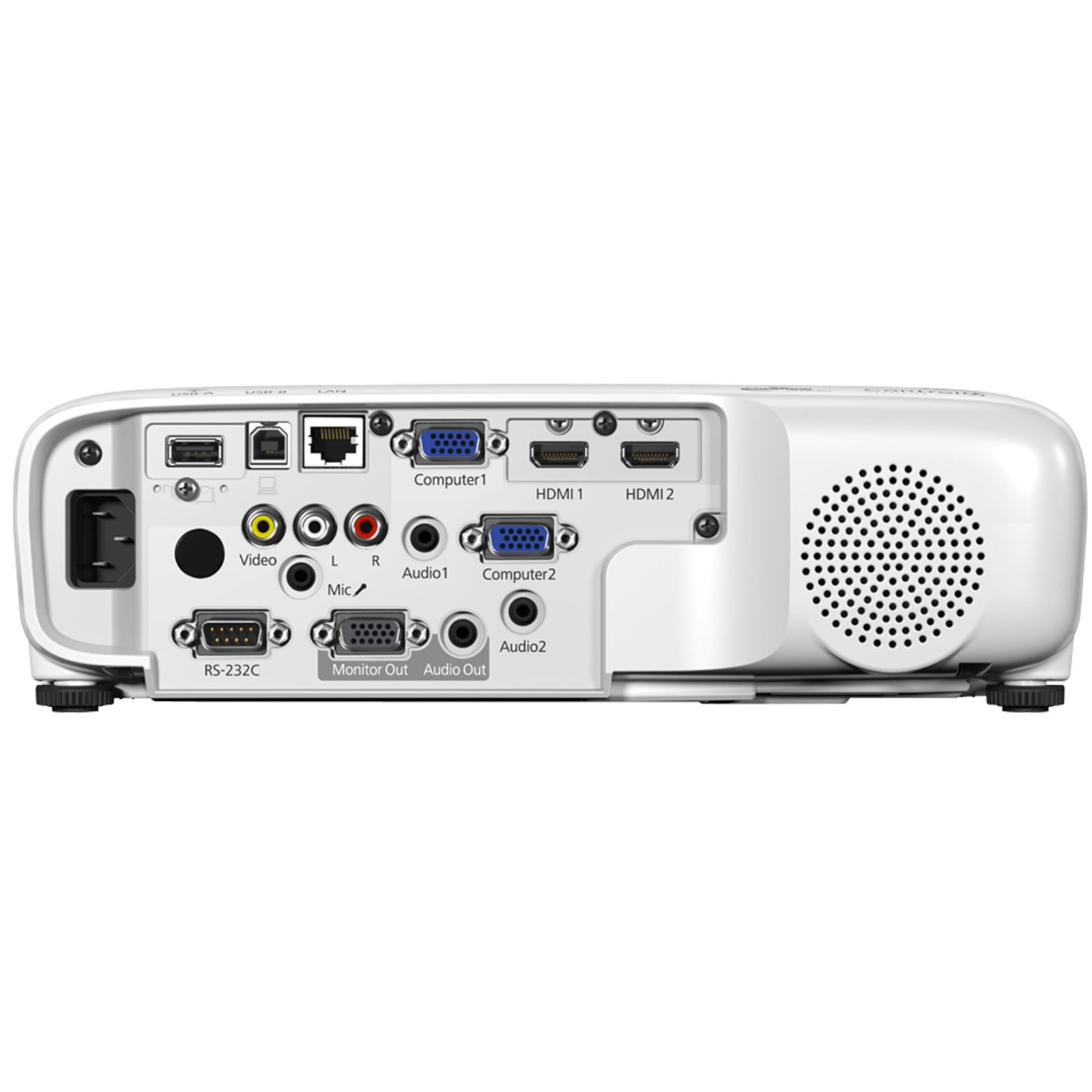

Connections include two HDMI inputs, two VGA computer inputs with a VGA monitor output, composite video, stereo audio inputs and output, a microphone input, USB Type A and Type B, RS-232C control and an RJ45 Ethernet port. Network projection and Epson Projector Management allow the unit to be monitored and controlled as part of an installed fleet, while wireless LAN with enterprise security support fits managed IT environments. At 309 by 293 by 105 mm and 3.1 kg, the chassis remains portable enough to move between rooms when a fixed installation is not planned.

For organisations that need one projector to handle documents, design reviews, video calls and occasional film playback without darkening the room, the EB-992F combines honest Full HD resolution, equal colour and white brightness, and the connectivity that modern meeting spaces expect.
