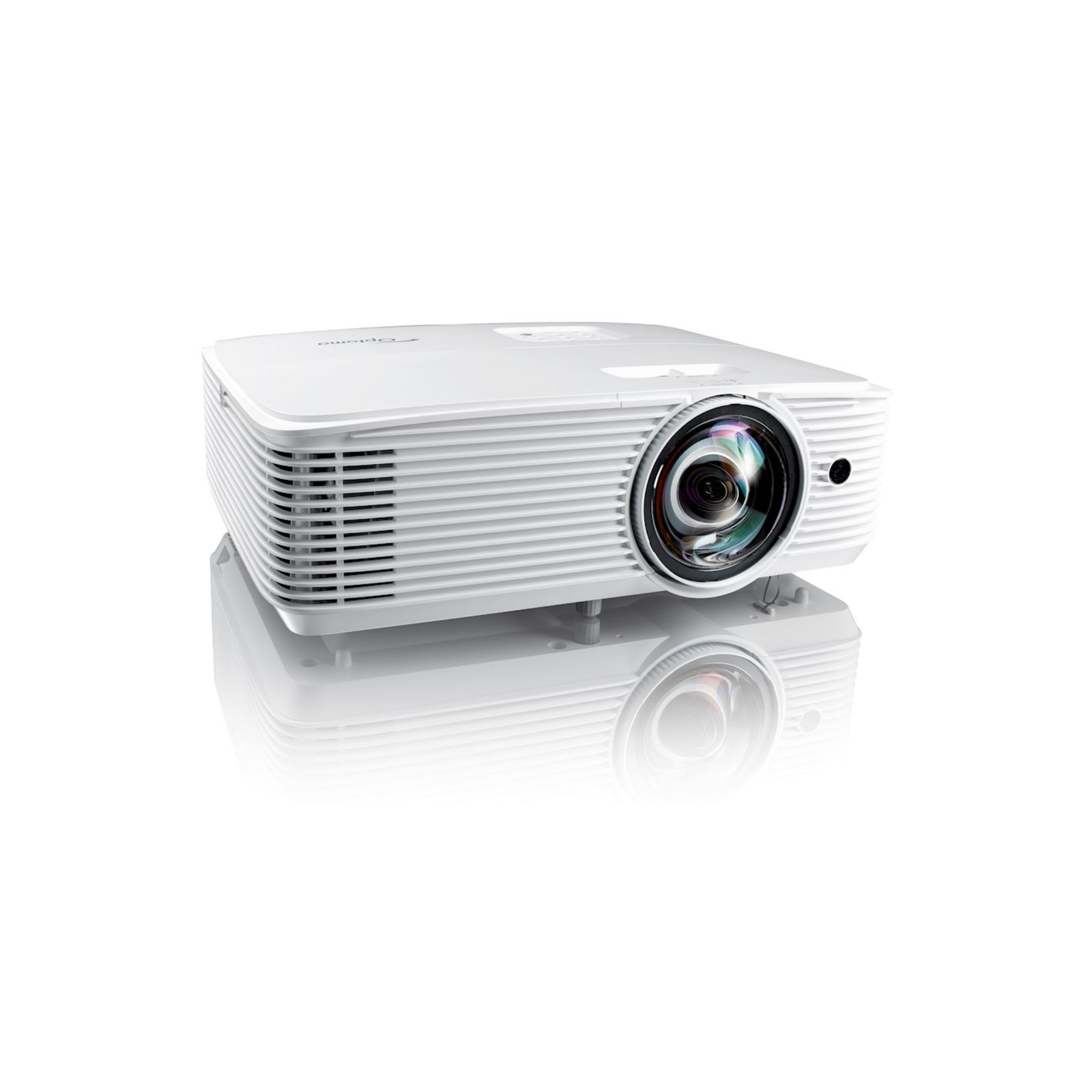

Optoma X309ST XGA Short Throw DLP Projector (3700 Lumens)

Optoma X309ST XGA Short Throw DLP Projector (3700 Lumens) – Big Images from Close Up

The Optoma X309ST is a short throw DLP projector built for classrooms, training rooms and meeting spaces where the projector has to sit close to the screen. Its short throw lens produces a large image from a short distance, which removes the oldest problem in presentation rooms: the presenter standing in the beam, casting a shadow over the slides and staring into the light. With 3700 lumens of brightness, it holds a clear, readable image with the room lights on.

XGA resolution remains the working standard for slides, documents and educational content, and matches the laptops and legacy systems these rooms actually use. For schools and offices equipping several rooms, the X309ST is easy to standardise and dependable in daily use.

Key features

• Short throw lens with a 0.617:1 throw ratio
• 3700 lumens brightness for lights-on presentations
• XGA resolution of 1024 x 768 with 4:3 native aspect ratio
• 25,000:1 contrast ratio for legible text and charts
• DLP technology with Full 3D support
• Lamp life up to 15,000 hours in Eco Plus mode
• HDMI, VGA and composite inputs for modern and legacy sources
• Built-in 10 W speaker for audio without external equipment
• Vertical keystone correction of 40 degrees
• Low 26 dB typical noise level in Eco mode

Projection and setup

The short throw design is the defining feature. Mounted close to the screen on a wall bracket or ceiling mount, the X309ST fills screens from about 32 inches up to 247 inches diagonal from projection distances between 0.4 and 3.1 metres, and the presenter can stand beside the image, use a pointer or interactive pen, and never block the picture. In classrooms this also keeps the projector away from above students' heads and keeps cables off the floor, which is a safety benefit as much as a convenience.

Short throw lenses reward accurate positioning, so the mount distance should be worked out for the screen size before installation. Once placed, vertical keystone correction tidies the geometry, and the fixed lens means there is no zoom drift to correct later. It is a fit-and-forget installation by design.

Image quality and running costs

The 3700 lumen output and 25,000:1 contrast keep text sharp against white slide backgrounds and give video enough punch for training material and lessons. DLP imaging is well suited to this duty cycle, with consistent colour and no filter maintenance. Lamp life stretches to 15,000 hours in Eco Plus mode, and energy-saving features can cut consumption substantially, which spreads replacements across years of school terms rather than months and keeps the total cost of a multi-room rollout predictable.

Connectivity and everyday use

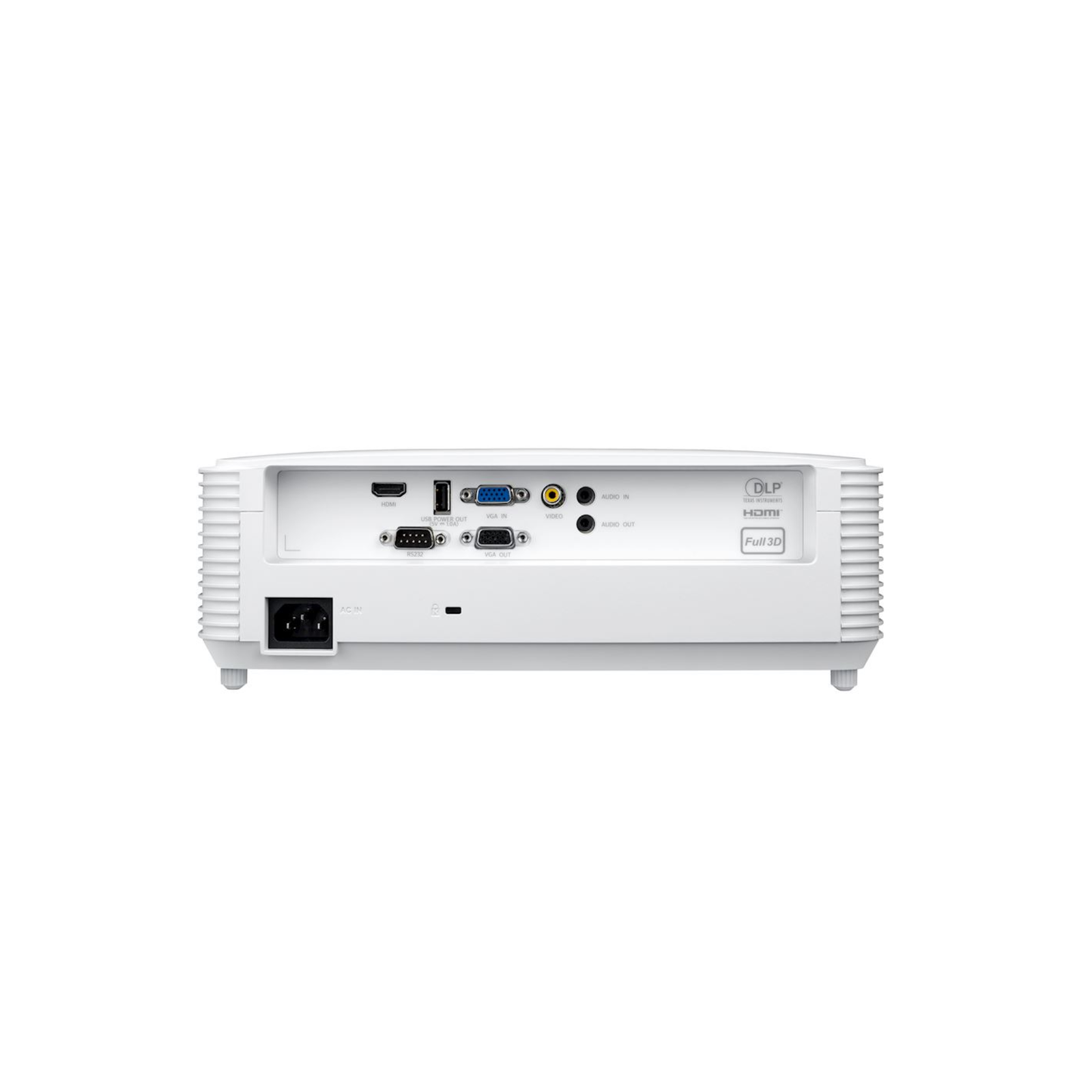

Inputs cover the real world of presentation rooms: HDMI for current laptops and media players, VGA for older machines, composite for legacy video, plus audio in and out, a VGA monitor output, RS232 control for integrated room systems, and a USB power output that can run an HDMI streaming dongle. The integrated 10 W speaker handles speech and video audio in small rooms without a separate sound system.

The X309ST is the right choice for schools, coaching institutes, training providers and offices that present in bright rooms with limited space. If your presenters keep walking through the picture, this projector is the straightforward fix.
