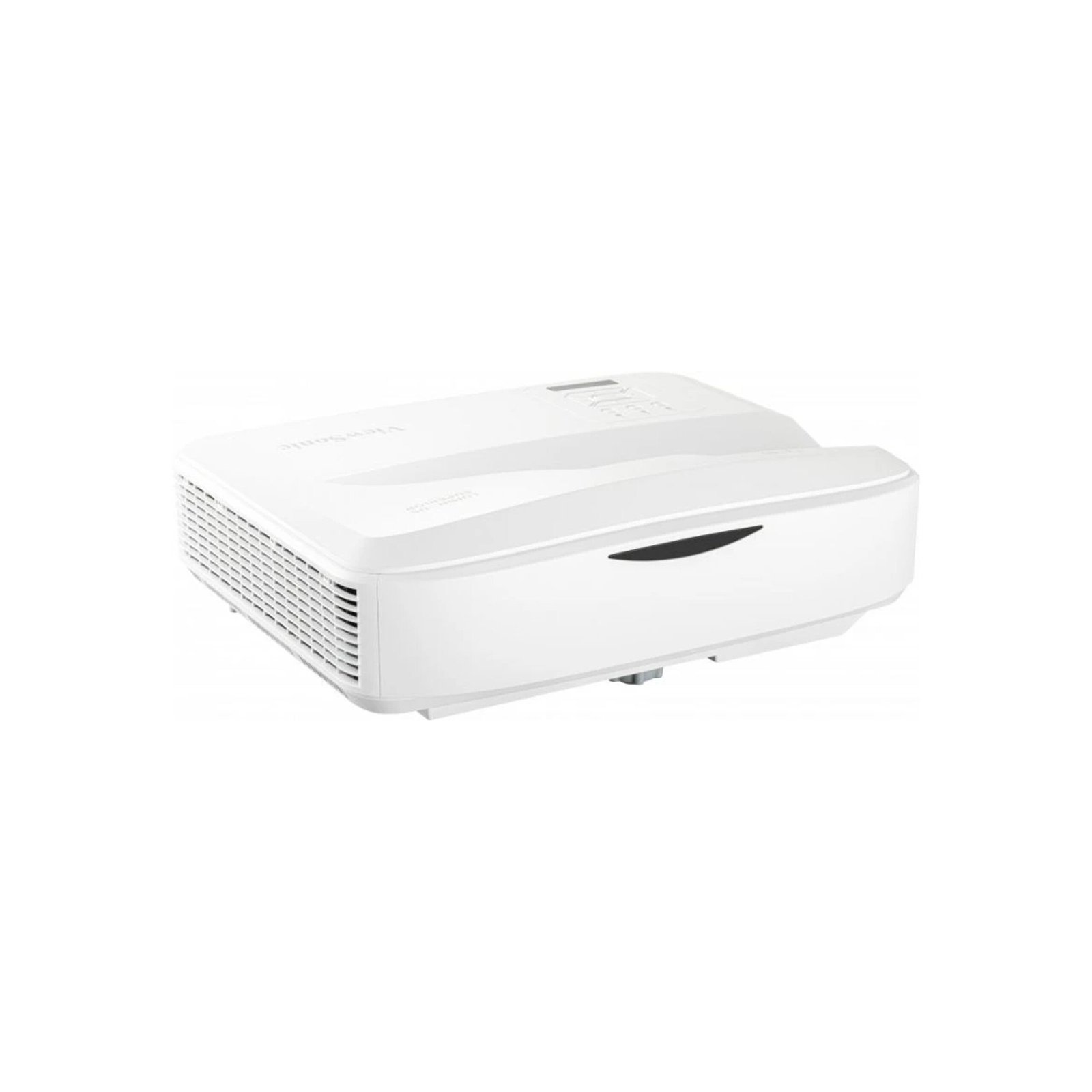

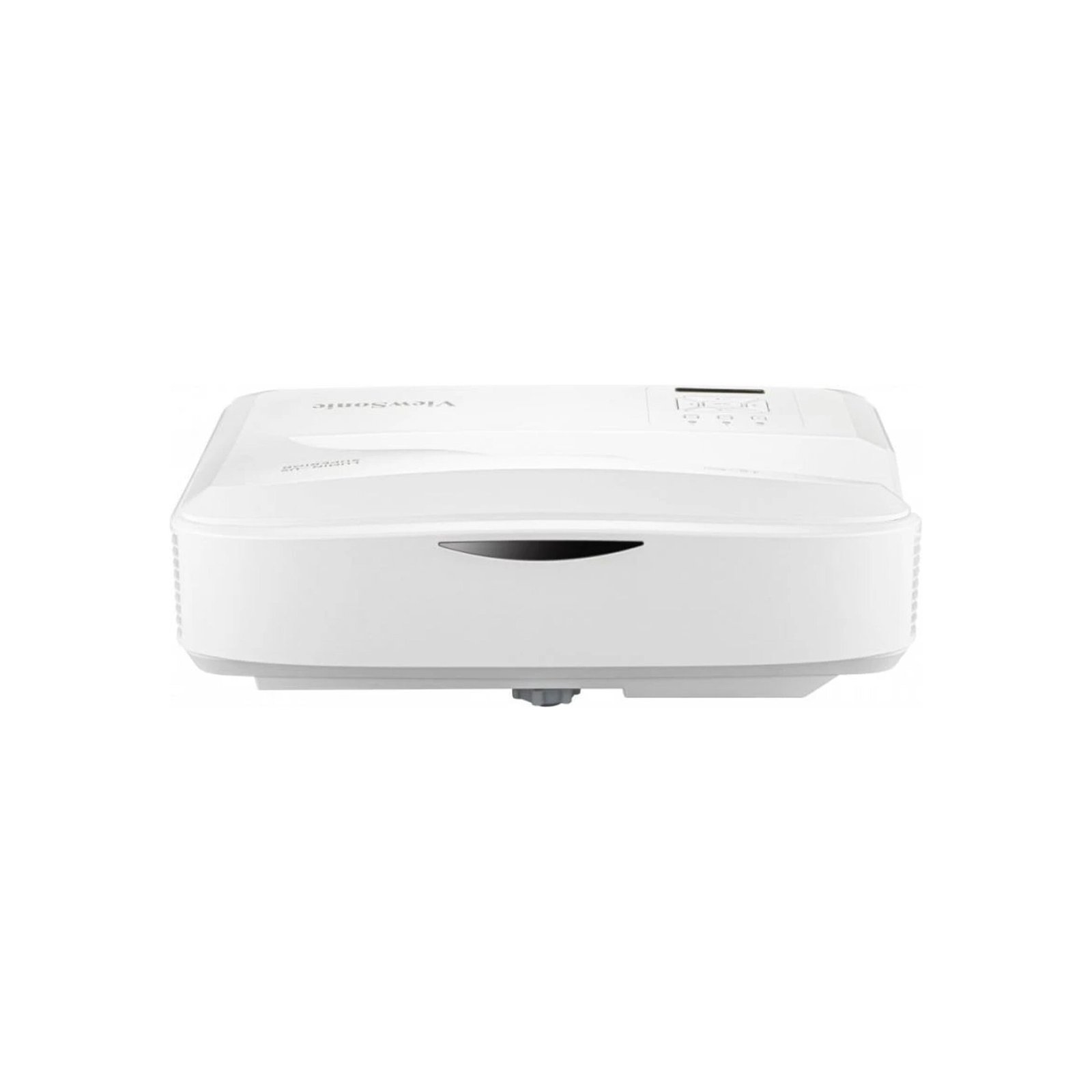

ViewSonic LS832WU 5000 Lumens WUXGA Ultra Short Throw Laser Projector

ViewSonic LS832WU WUXGA Ultra Short Throw Laser Projector

The ViewSonic LS832WU is an ultra short throw laser installation projector for classrooms, meeting rooms, signage and simulation spaces where the projector must sit almost against the wall it serves. Its native WUXGA resolution of 1920 x 1200 gives more vertical space than Full HD for documents, spreadsheets and design work, and the 0.253 throw ratio produces a 100-inch image from just 0.28 metres away. A laser phosphor light source rated at 5,000 ANSI lumens and up to 30,000 hours of life keeps maintenance visits rare.

Key features

• WUXGA native resolution: 1920 x 1200 with input support up to 4K 3840 x 2160
• 5,000 ANSI lumens: laser phosphor light source for bright rooms and large images
• Ultra short throw: 0.253 ratio, 100-inch image from 0.28 m, image sizes from 80 to 170 inches
• Long light source life: 20,000 hours in normal mode and 30,000 hours in SuperEco mode
• High contrast: 3,000,000:1 contrast ratio with 1.07 billion display colours
• LAN control: compatible with Crestron, AMX, Extron and PJ Link management systems
• Built-in speaker: 10 W internal speaker for meeting and classroom audio

Ultra short throw in practice

Mounting the projector centimetres from the screen changes how a room can be used. Presenters can stand at the board without blocking the beam or staring into a lens, shadows across the image largely disappear, and interactive teaching becomes practical. The fixed lens has a projection offset of 133 percent, and image size runs from 80 to 170 inches depending on the small distance adjustments available, with digital zoom from 0.8x to 2.0x for fine fitting. Keystone correction of plus/minus 10 degrees horizontally and vertically and four-corner adjustment help square the picture on real-world walls.

Laser engine and operating costs

The laser phosphor source reaches full brightness quickly, switches off without a cool-down wait, and holds its output far longer than a lamp. Rated life is 20,000 hours in normal mode and 30,000 hours in SuperEco mode, which for a projector used eight hours a day covers many years of service without a lamp budget. Power consumption is 328 W in normal use and under 0.5 W in standby, and noise is rated at 34 dB normally and 28 dB in eco mode, quiet enough for small meeting rooms where the projector sits close to the audience.

Connections and management

Two HDMI 2.0 inputs with HDCP support handle modern sources, alongside a computer VGA input, monitor output, analogue audio in and out, a microphone input and a USB Type A port supplying 5 V power for accessories such as streaming sticks. Control connections include RS-232, a USB service port and an RJ45 LAN connection, and the projector works with Crestron, AMX, Extron and PJ Link systems so facilities teams can monitor and manage it centrally with the rest of an estate. Firmware can be updated over USB without a service visit.

Physical details

The LS832WU uses a 0.67-inch WUXGA DLP system in a chassis measuring 382 x 318 x 132 mm and weighing 5.8 kg net, compact for its brightness class and straightforward to mount above a board or place on a short credenza. A single 10 W speaker covers speech and video soundtracks in typical rooms, with the audio output available for larger spaces that need external reinforcement. Input lag of 33.2 ms is also low enough for the simulator and interactive applications that ultra short throw projectors are often chosen for.

For organisations standardising on bright, low-maintenance projection in space-limited rooms, the LS832WU combines WUXGA detail, extreme short throw geometry and network management in one installation unit.
