Behringer EUROLIVE B212D 12-Inch Active PA Speaker

Behringer EUROLIVE B212D 12-Inch Active PA Speaker

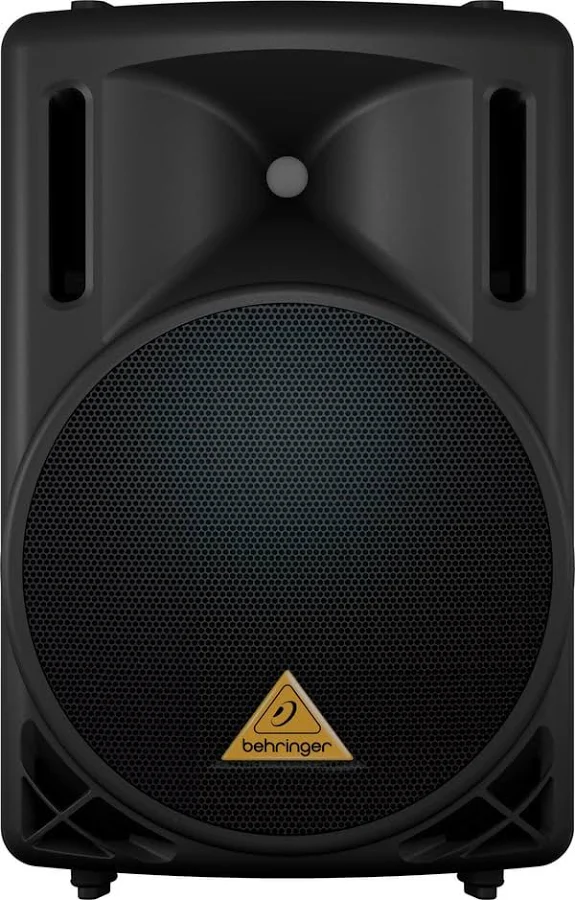

Behringer EUROLIVE B212D is a powered two-way PA loudspeaker with a twelve-inch woofer and 1.35-inch high-frequency compression driver. Its built-in amplification supports a compatible live or playback source.

Why Choose Behringer EUROLIVE B212D?

B212D is the active model in this comparison, so it receives an appropriate microphone or line signal rather than power from an external speaker amplifier. The documented 550W designation is the model’s headline peak-power figure, not a continuous output promise at every frequency. Input level and two-band EQ provide practical local control, while an external mixer suits more involved source routing. Choose stable pole or floor-monitor placement according to the manual and test coverage before raising level. A powered cabinet still needs its specified mains connection.

Key Features

• Powered two-way design: internal speaker amplification.
• Twelve-inch woofer: low-frequency driver.
• Compression driver: 1.35-inch high-frequency unit.
• Local controls: input level and two-band EQ.

Best Suited For

Live speech, rehearsal, music playback and event sound where a powered PA cabinet suits the space. Choose the loudspeaker position and coverage before increasing volume. The cabinet includes its own amplification, while a mixer can provide the source channels, control and routing needed for a larger system.

Setup and Connection Guide

Place the cabinet on secure support in its documented orientation and connect the specified mains supply. Start input and master controls low, connect the appropriate microphone or line source and choose the correct input sensitivity. Test the loudest expected signal while leaving headroom and checking clip indicators. Keep live microphones away from the main loudspeaker coverage and mute unused inputs. Where multiple cabinets or subwoofers are used, follow the supported link and crossover arrangements, then walk the listening area before the event.

Frequently Asked Questions

Can I drive B212D from a power amplifier’s speaker outputs?

Use its supported microphone or line input instead. Its internal amplifier drives the speaker units. An external amplifier’s speaker-power output is not the same signal level and should not be connected as a line source.

Does an active PA speaker need an external power amplifier?

Its internal amplifier drives its loudspeaker units. Feed the supported input signal from the source or mixer and supply mains power. Do not connect a separate amplifier’s speaker-power output to a line-level input.

Will adding more gain always fix microphone feedback?

No. Feedback depends on microphone and speaker placement, room reflections and the open audio paths. Improve positioning, mute unused microphones and set sensible levels before adding equalisation or raising gain.

Technical Specifications
