Jbl Arena 6IC

JBL Arena 6IC In-Ceiling Speaker

The JBL Arena 6IC is a two-way in-ceiling loudspeaker from JBL’s Arena architectural series, sold as a single speaker. It is built to bring full, room-filling JBL sound to custom installations while remaining nearly invisible once fitted: a 6.5-inch polycellulose woofer and a 1-inch silk-dome tweeter behind a zero-bezel magnetic grille that sits flush with the ceiling. It is a speaker for homes where the system has to be heard rather than seen, covering stereo music zones, multi-room audio and the surround and height channels of a home theatre with equal ease.

Key features

• 6.5-inch (165 mm) polycellulose woofer
• 1-inch (25 mm) silk-dome tweeter with waveguide
• Frequency response of 38 Hz to 20 kHz
• Recommended amplifier power of 80 W, 8-ohm impedance
• XL-2 mounting mechanism for fast, secure installation
• Zero-bezel magnetic grille for a near-invisible finish
• Paintable grille to match the ceiling

Woofer and tweeter working together

The low end comes from a 6.5-inch polycellulose woofer, a material JBL uses across the Arena range for its balance of stiffness and damping in architectural applications. It gives the 6IC a rated response down to 38 Hz, which is deep for a ceiling speaker and enough for music to sound full-range in most rooms without a subwoofer. High frequencies are handled by a 1-inch silk-dome tweeter mounted in a waveguide. The waveguide is not decoration: it shapes the tweeter’s dispersion so coverage stays smooth and even across the listening area instead of beaming straight down, which keeps dialogue clear and stereo imaging stable for listeners seated off to the sides.

Power, sensitivity and matching

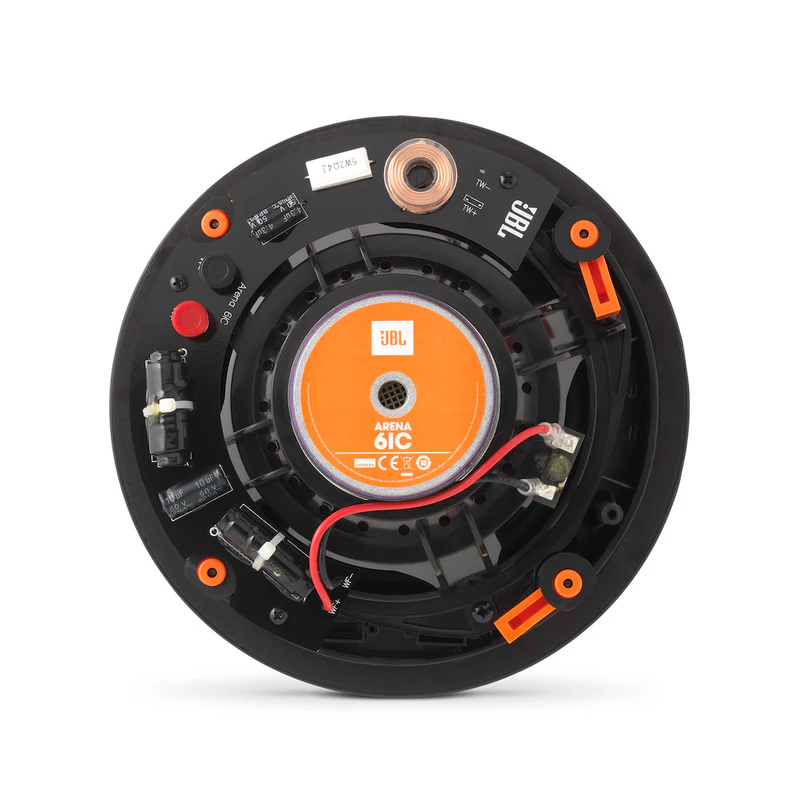

JBL rates the Arena 6IC at 86 dB sensitivity (2.83 V at 1 m), with 8-ohm impedance and 80 W recommended amplifier power. That specification suits the AV receivers and multi-zone amplifiers used in custom installations, and the speaker’s internal network uses high-order filters with steep cutoffs, which protect the individual drivers and help the speaker hold its composure at higher playback levels. Run one pair for a stereo room, add more pairs for whole-home coverage, or mix the 6IC with other Arena architectural models, in-ceiling and in-wall, to build a matched theatre system around the same voicing.

XL-2 installation

Installation uses JBL’s XL-2 mounting mechanism, designed to make fitting simple and quick and to work with ceiling material from 0.5 to 2.0 inches (12 to 51 mm) thick, which covers standard drywall through to doubled-up or backed ceilings. The speaker needs an 8-inch (203 mm) diameter cutout and 4 11/16 inches (119 mm) of mounting depth; the grille’s finished diameter is 9 3/32 inches (231 mm). A printed mounting template is included in the box, along with the magnetic grille, owner’s manual and warranty card. For new construction, the PCK6C pre-construction bracket is the matching accessory.

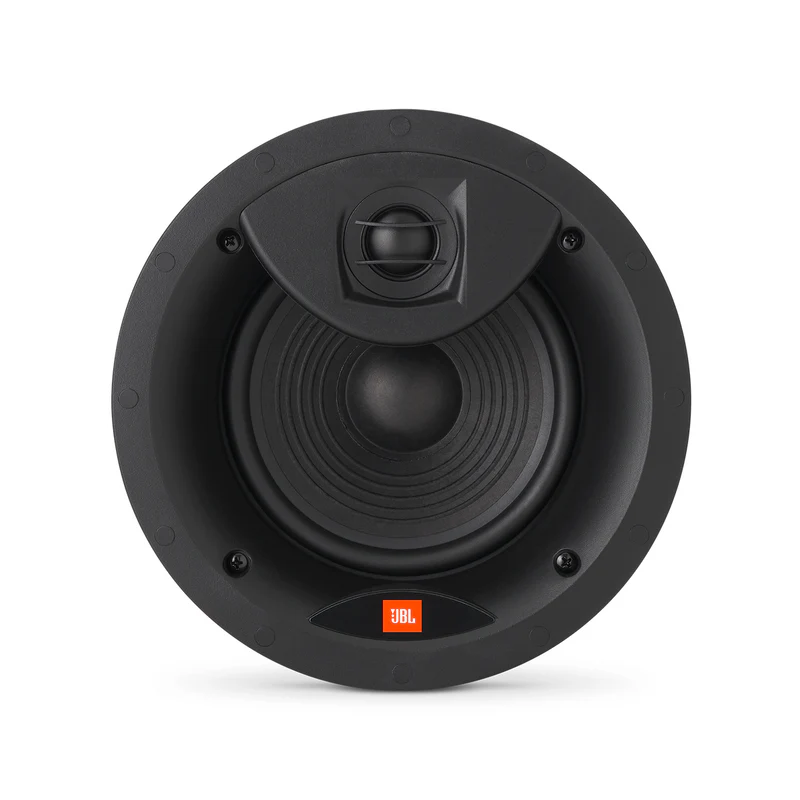

The zero-bezel finish

The grille attaches magnetically and has no bezel, so once it is on there is no frame line around the speaker, just a flat disc level with the ceiling. It can be painted to match the ceiling colour, scrim cloth and all, following the method in the manual. In a finished room the 6IC effectively disappears, which is why the Arena series is chosen for living spaces where visible speakers are not acceptable but sound quality still matters.

For discreet ceiling audio with genuine low-frequency reach, even coverage from a waveguide-loaded silk dome and an installation system built for speed, the JBL Arena 6IC is a complete single-speaker solution that scales from one room to a whole house.
