Monitor Audio C2M-CP 6.5 inch In-Ceiling Speaker (Each)

Monitor Audio C2M-CP In-Ceiling Speaker (Each)

The Monitor Audio C2M-CP is a medium-sized Tier 2 in-ceiling loudspeaker from the Creator Series, in Monitor Audio’s Controlled Performance form: it adds a fully sealed integrated back box, so performance is consistent wherever it is installed and sound leakage into the ceiling void is contained. The drive units are a 7-inch (178 mm) RST II mid-bass driver and a 1-inch (25 mm) C-CAM tweeter with UD Waveguide II, in a 2-way design crossing over at 2.5 kHz. Installed frequency response is 70 Hz to 35 kHz (-6 dB), with 87 dB sensitivity (2.83 Vrms at 1 m, installed) and a maximum peak SPL of 116 dB from a single speaker. This listing is for a single speaker, sold individually.

Two Creator Series installation systems make fitting fast and repeatable: the patented Quik-Link speaker cable connector lets the installer terminate the cable and simply click the speaker onto it, and Tri-Grip II dog-leg clamps give a stronger, more reliable fixing than conventional clamps. Tuning switches are on board: an HF switch (- / 0 / +) to trim the tweeter level to the room, and a corner (boundary) switch to compensate when the speaker sits near a wall junction. The cut-out diameter is 212 mm and the mounting depth is 177.5 mm because of the back box; the CM-B pre-construction bracket is the matching accessory.

Key Features

• Creator Series Tier 2 medium in-ceiling speaker with sealed back box (Controlled Performance)
• 7-inch RST II mid-bass driver and 1-inch C-CAM tweeter
• Installed frequency response 70 Hz to 35 kHz (-6 dB)
• 87 dB sensitivity, 116 dB maximum peak SPL
• Recommended amplifier power 35 to 130 W (8 ohms); continuous handling 65 W
• Patented Quik-Link cable connector and Tri-Grip II fixing
• HF level switch (- / 0 / +) and corner/boundary switch
• Cut-out 212 mm; mounting depth 177.5 mm; sold individually

Why the sealed back box matters

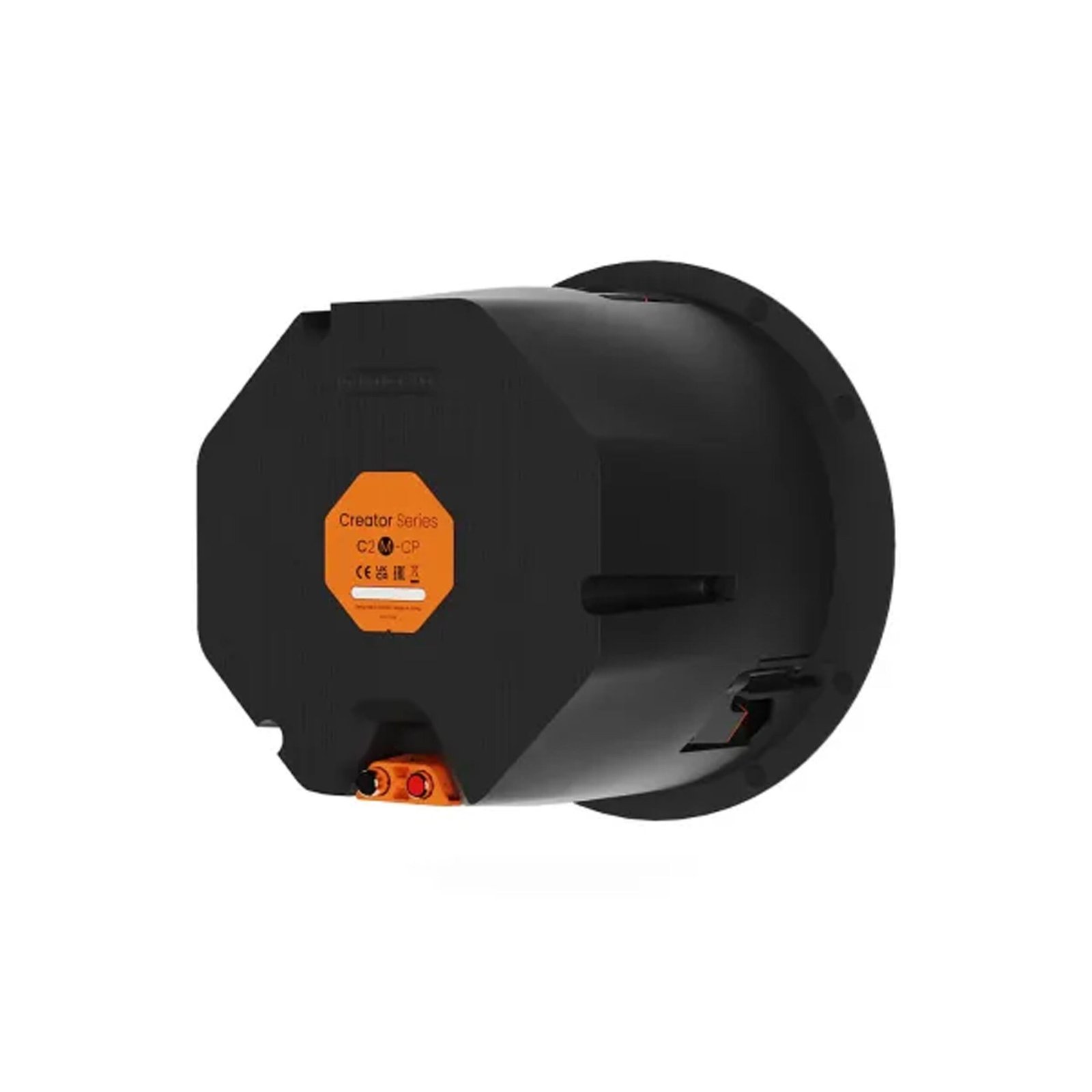

An open-backed in-ceiling speaker uses the ceiling cavity as its enclosure, so its bass and tonal balance change with cavity volume, insulation and nearby joists — and sound escapes into the room above. The C2M-CP’s sealed back box fixes the enclosure volume at the factory, so every speaker performs as measured, installation to installation, and transmission to adjacent spaces is reduced — valuable in apartments, offices and multi-room homes where sound travelling between floors is a real complaint.

Placement and pairing

With 8-ohm nominal impedance (6.4-ohm minimum) and a 35 to 130 W amplifier window, the C2M-CP runs from AV receivers and multiroom amplifiers alike. Use pairs for stereo zones and single speakers for Atmos height channels. Set the HF switch to lift the treble (+) in a dull, heavily furnished room, or cut it (-) in a bright, reflective space; the corner switch compensates for bass lift near wall junctions.

Where it fits

Premium whole-home audio, home cinema height channels and commercial spaces where consistent, contained performance matters more than the lowest possible mounting depth. Full technical specifications are listed in the Additional Information tab on this page.
