Jbl Professional Jbl LSR310S 10-inch Powered Studio Subwoofer Monitor

JBL LSR310S 10-inch Powered Studio Subwoofer

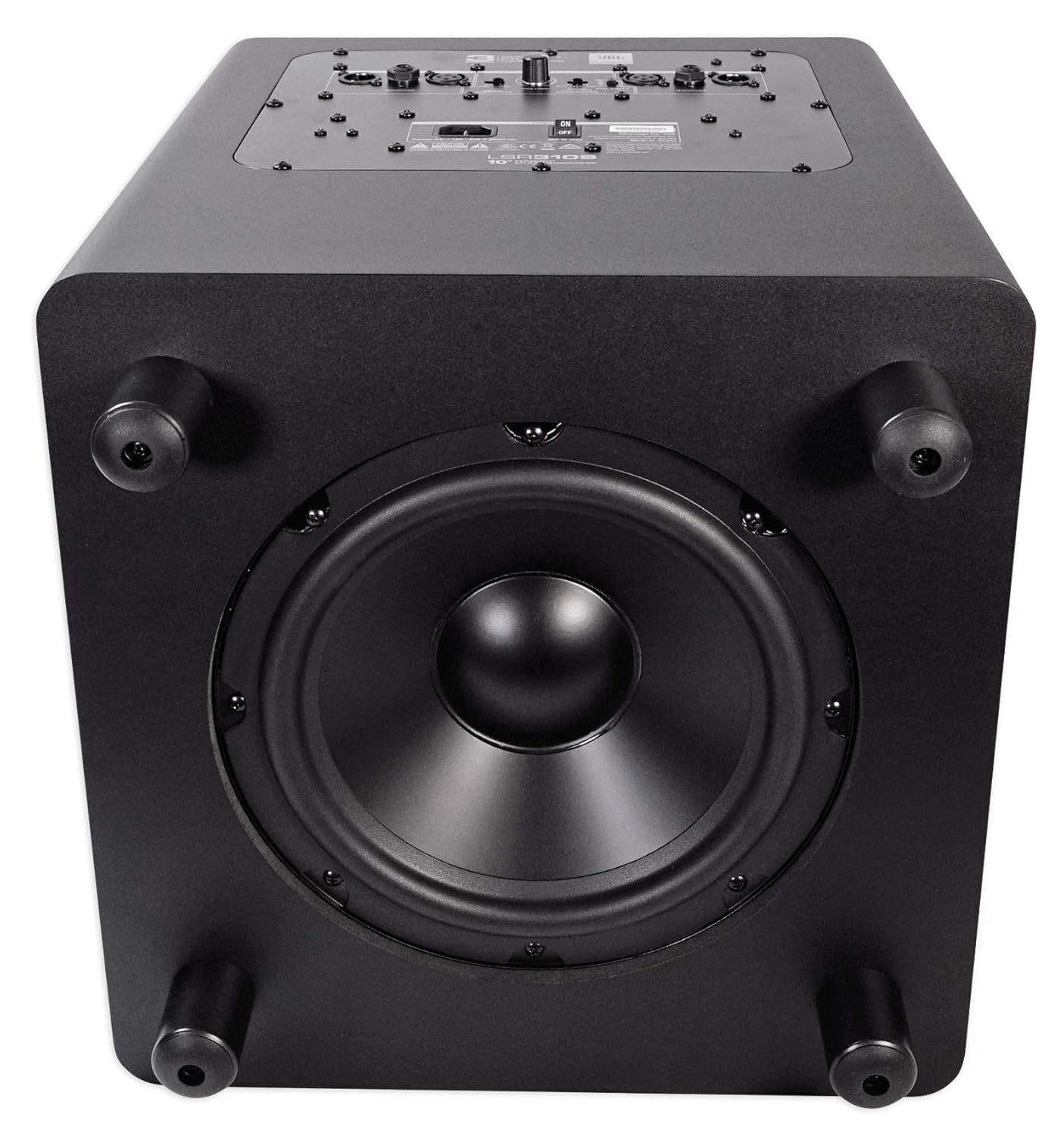

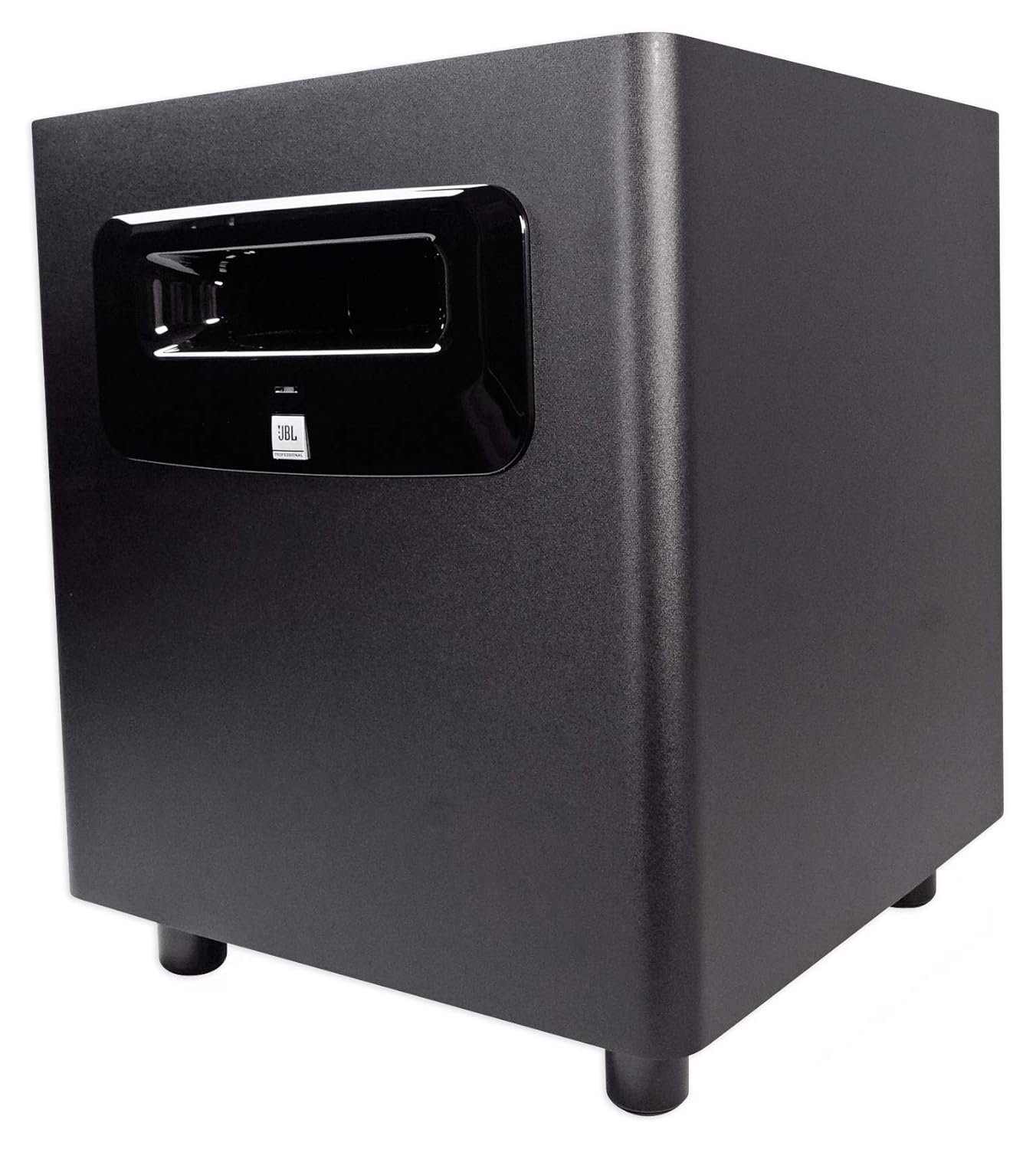

The JBL LSR310S is a powered studio subwoofer built to extend the low-frequency reach of small and mid-sized monitoring systems. Its custom 10-inch down-firing woofer and 200-watt Class-D amplifier take playback down to 27 Hz, so kick drums, bass lines and synth sub content are heard and felt rather than guessed at. It was designed as the matching low-end partner for JBL 3 Series studio monitors, but its balanced connections and flexible crossover settings let it slot into almost any nearfield setup that needs accurate, controlled bass.

Key features

• Custom 10-inch down-firing, high-excursion woofer
• 200W Class-D amplifier with generous dynamic headroom
• Low-frequency extension down to 27 Hz
• Maximum peak SPL of 113 dB
• Three crossover settings: 80 Hz, XLF and External
• JBL Slip Stream port for clean bass at high levels
• Balanced XLR and TRS inputs with XLR outputs to the main monitors
• Input sensitivity switch for +4 dBu professional or -10 dBV consumer sources

Low end you can mix against

Small nearfield monitors typically roll off well above the deepest octave of modern music, which leaves the most error-prone part of a mix unchecked. The LSR310S fills that gap with extension to 27 Hz and a long-excursion driver that stays composed when sub-heavy material pushes it. The patented Slip Stream port is shaped to reduce air turbulence at the port opening, which keeps low notes tight and defined instead of chuffing or compressing when the level rises.

Output is substantial for a cabinet of this size: 113 dB maximum peak SPL means the subwoofer keeps up with the main monitors at realistic control-room levels without strain. A protective circuit allows sustained low-frequency output at high levels, so long sessions with bass-heavy programme do not force the system to back off.

Three crossover modes, three jobs

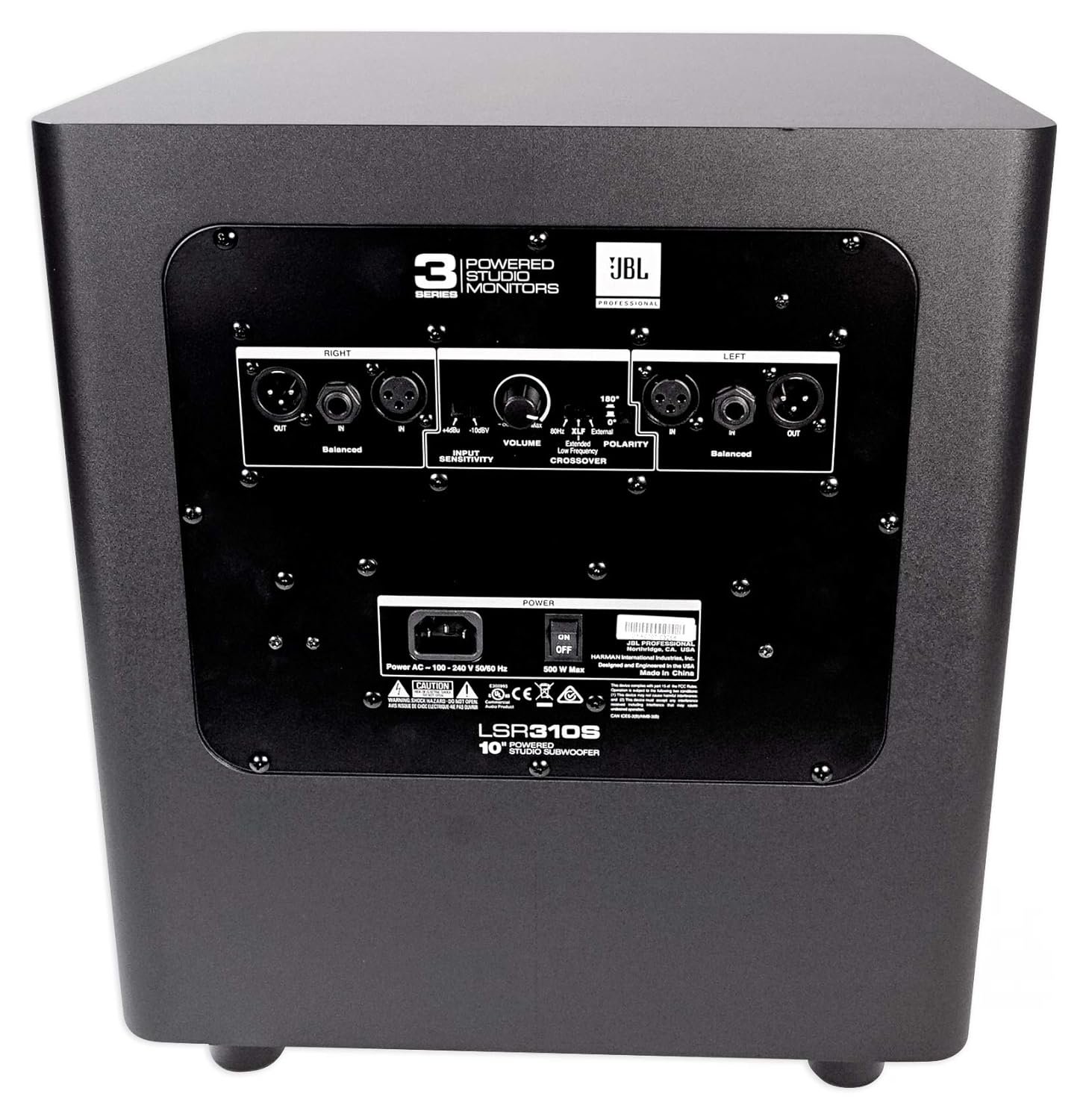

The rear-panel crossover selector offers three behaviours. The 80 Hz setting applies high-pass and low-pass filtering for a seamless blend with the main monitors, creating the impression of one full-range system with no audible subwoofer location. The XLF setting is different in intent: it pairs a 120 Hz high-pass filter with a low-frequency tuning that approximates the enhanced bass response of a club playback system, letting dance and hip-hop producers audition how their low end will translate where it matters most. The External setting hands crossover duties to an outside processor and is the right choice for bass-managed or surround configurations, where the LSR310S can also carry the LFE channel.

Simple, professional connection

Left and right signals route through the subwoofer first, then out to the monitors, so bass management needs no extra hardware. Balanced XLR and quarter-inch TRS inputs accept professional and project-studio sources alike, and the sensitivity switch matches the input stage to +4 dBu or -10 dBV equipment so gain staging stays clean either way. A detented volume control makes it easy to set the subwoofer level against the mains, return to a known balance later, and keep left-right system calibration repeatable.

For producers working in rooms where the main monitors stop short of the bottom octave, the LSR310S adds the missing information without taking over the mix: deep extension, three well-judged crossover behaviours and enough clean output to trust what the low end is really doing.
