Electro-Voice EVID 4.2 Surface-Mount Loudspeaker Pair (White)

Electro-Voice EVID 4.2 Surface-Mount Loudspeaker Pair (White)

The Electro-Voice EVID 4.2 is a compact two-way surface-mount loudspeaker, supplied here as a matched pair in white, from the EVID installed-sound range that equips restaurants, retail spaces, hotels, offices and houses of worship. Each cabinet packs two 4-inch low-frequency drivers and a 1-inch titanium dome tweeter into an enclosure barely larger than a hardback book, yet it is rated for 200 watts of programme power and coverage wide enough to fill a room from a single pair of mounting points. Mount it, aim it, wire it once, and it delivers even, intelligible sound every day.

Key Features

• Dual 4-inch woofers with a 1-inch titanium dome tweeter per cabinet
• 65 Hz to 20 kHz frequency response and 200 W programme power handling
• 90 dB sensitivity and 8 ohm impedance for easy amplifier matching
• Wide 120 x 80 degree coverage from the Coherent Coverage waveguide
• Strong-Arm-Mount bracket for fast, precise aiming
• Weather resistant to IP34 and MIL Spec 810 for sheltered outdoor use

Dual woofers and the Coherent Coverage waveguide

Two 4-inch drivers flank the tweeter in a three-dimensional elliptical baffle, an arrangement Electro-Voice calls a line-array-inspired layout. Doubling the cone area in a small cabinet raises output and extends bass far beyond what a single small driver manages, which is why the 4.2 reaches 65 Hz at the -10 dB point instead of fading out in the low midrange. Between the woofers, the 1-inch titanium dome sits in a Coherent Coverage waveguide that shapes its output into a broad, even 120-degree horizontal by 80-degree vertical pattern. Voices stay intelligible at the far tables, music keeps its balance off-axis, and there are no hot spots under the speaker and dead zones two metres away. A 2.2 kHz crossover and full-system overload protection for both drivers complete the design.

Power, sensitivity and system matching

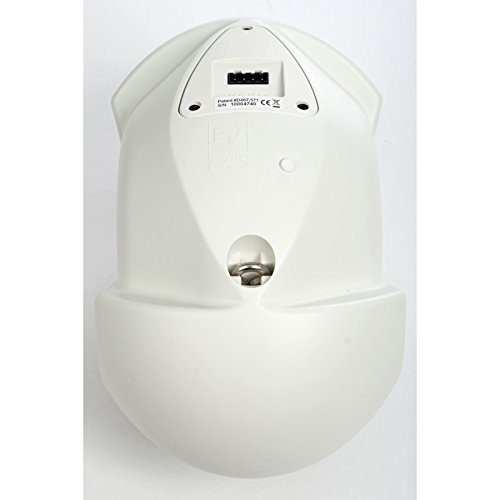

With 90 dB sensitivity at one watt and one metre, the EVID 4.2 reaches working background and foreground levels on modest amplifier power, while its 200 watt programme rating, 400 watts peak, leaves headroom for announcements and livelier playback without strain. The nominal 8 ohm load is an easy match for install amplifiers and AV receivers alike. A pair covers a cafe, boutique or boardroom in stereo; spread across a larger floor on a distributed system, multiple pairs give the even, overlapping coverage that commercial spaces are judged on. Connection is by a 4-pin Phoenix plug-in terminal, so cabinets can be wired on the bench and clicked into place on the wall.

Mounting, finish and durability

The included Strong-Arm-Mount bracket fixes to the wall first, then lets the cabinet swing and rotate through a wide range so the coverage lands exactly where the seats are; a hex key is in the box. The ABS enclosure is paintable, and the white finish of this pair blends into light walls and ceilings, with a zinc-plated, powder-coated grille restrained by a safety leash. Weather resistance to IEC 529 IP34 and MIL Spec 810 humidity testing means sheltered patios and covered outdoor areas are within its working territory, not just interiors. Each cabinet measures 310 x 175 x 216 mm and weighs 3.9 kg.

For installers and venue owners who want compact speakers that disappear visually but not sonically, the EVID 4.2 pair remains the benchmark small-format install box in the Electro-Voice catalogue.
