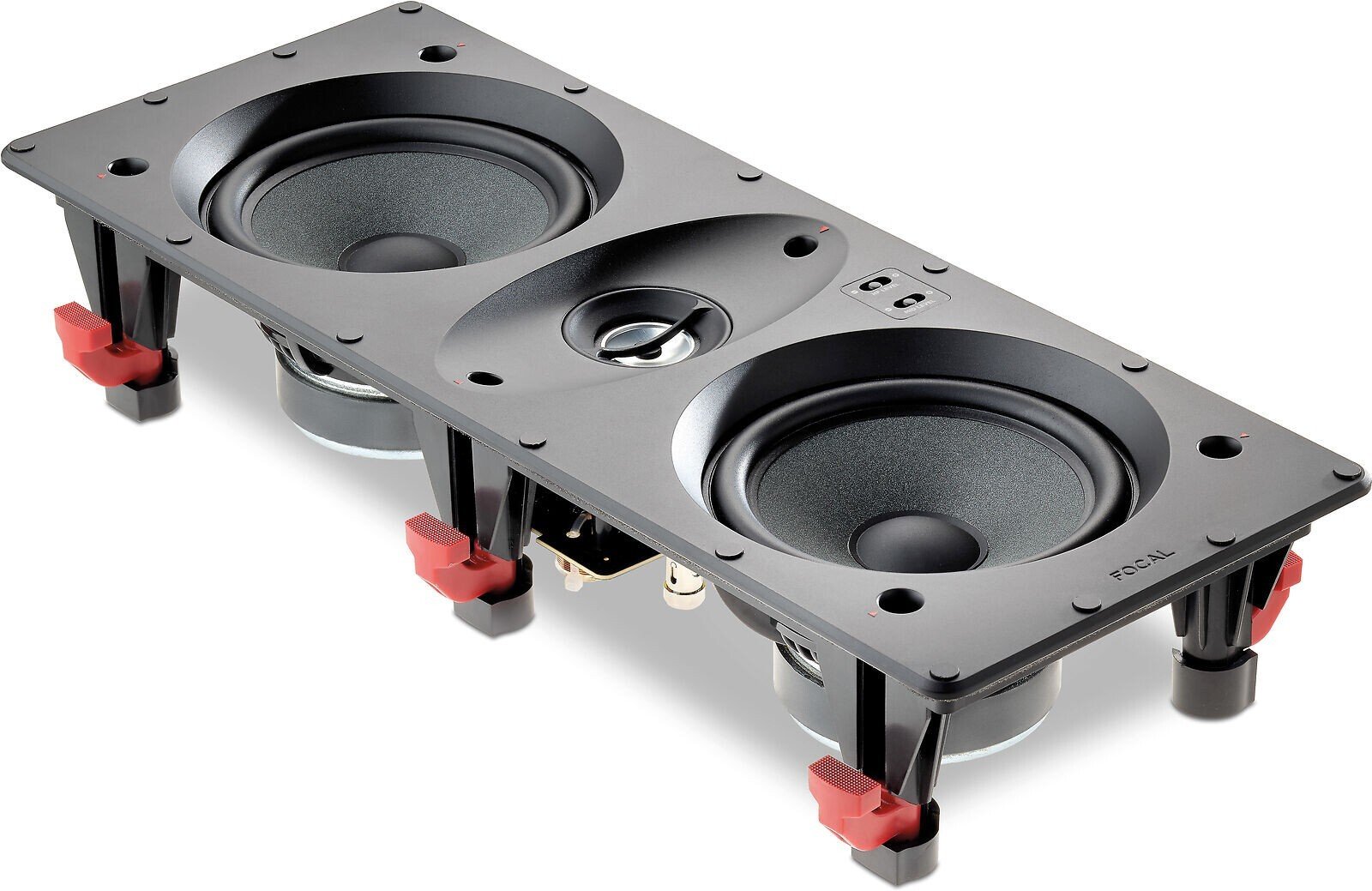

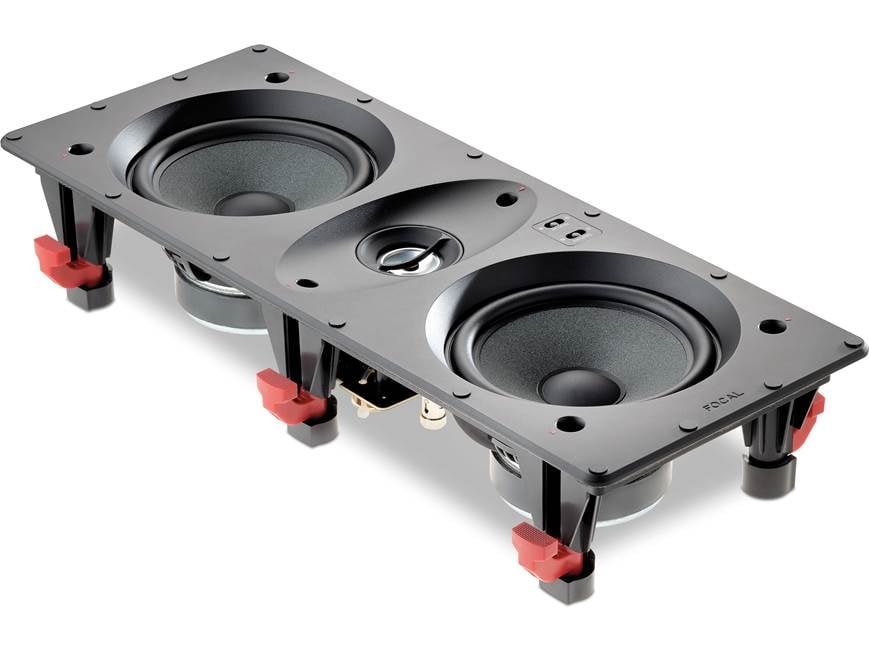

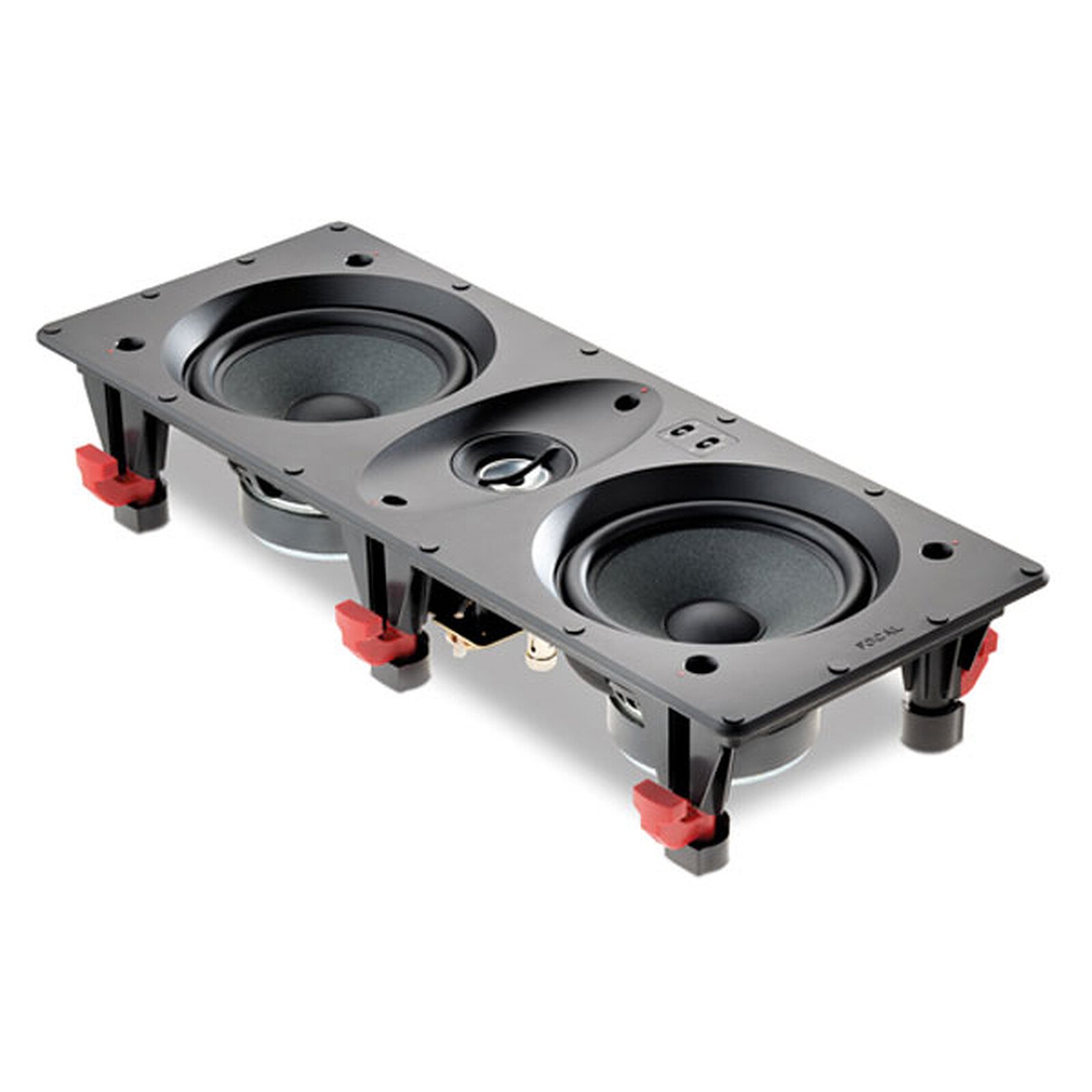

The Focal 100IWLCR5 In-Wall LCR Speaker is a dedicated in-wall loudspeaker for home cinema front channels, using a two-way D’Appolito layout with two 5 and 1/8 inch Polyglass woofers flanking a 1 inch aluminium inverted dome tweeter. It can be mounted vertically for left and right channels or horizontally as a centre channel, and switches for tweeter level, woofer level and left, centre or right role let the installer match it to the room and the system. The Focal 100IWLCR5 In-Wall LCR Speaker is built for small to medium rooms where the front speakers must disappear into the wall without giving up cinema impact.
Why Choose This Product?
The Focal 100IWLCR5 In-Wall LCR Speaker stands out because its D’Appolito arrangement keeps dialogue and effects coherent across the seats, while the dual woofers give it more output and control than a single-woofer in-wall speaker. The tweeter pivots 360 degrees for aiming, and the three-position level switches for treble and mid-bass tame bright or dull rooms without an equaliser. A frameless magnetic grille, ready to paint, finishes the wall cleanly, and tropicalisation means it also suits humid rooms. With 90.5 dB sensitivity and 25 to 120 watts of recommended power, it is easy to drive from a normal AV receiver.
Key Features
Dual 5 and 1/8 inch Polyglass woofers: Two rigid, well-damped woofers in a D’Appolito layout for coherent, controlled cinema sound.
Adjustable aluminium tweeter: 1 inch inverted dome tweeter with 360 degree pivot and three-position level switch.
Left, centre and right switch: The Focal 100IWLCR5 In-Wall LCR Speaker adapts its balance to whichever front-channel role it plays.
Woofer level switch: A separate three-position switch trims the mid-bass to the room’s acoustics.
Vertical or horizontal mounting: Use it upright for left and right channels or on its side as a centre channel.

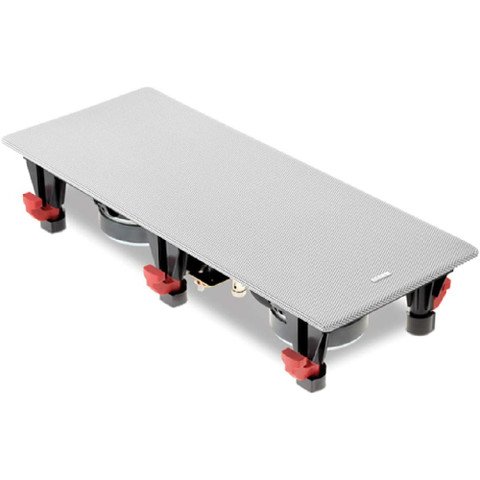

Discreet finish: Frameless magnetic grille, paintable, with tropicalisation for humid rooms.
Best Suited For
The Focal 100IWLCR5 In-Wall LCR Speaker suits home cinemas and media rooms in small to medium spaces, where three matching front speakers are wanted without visible cabinets. It is ideal behind or beside a screen wall, in living rooms with a projector or large TV, and in multi-room systems that need a serious front stage.
Setup and Connection Guide
Cut a 415 by 147 mm opening using the template, wire the speaker from an AV receiver or amplifier rated 25 to 120 watts into 8 ohms, and mount it at 83 mm depth from the wall. Choose vertical orientation for left and right channels or horizontal for the centre, set the left, centre or right switch and the level switches for the room, and fit the paintable magnetic grille. Use three matching units for the front stage and matching Focal surrounds for a consistent sound.
Frequently Asked Questions
Can the Focal 100IWLCR5 In-Wall LCR Speaker be used as a centre speaker?
Yes. It is an LCR design: mount it horizontally as the centre channel and set its imaging switch to the centre position, or vertically for left and right channels.
What amplifier does the Focal 100IWLCR5 In-Wall LCR Speaker need?
Any AV receiver or amplifier rated 25 to 120 watts into 8 ohms. At 90.5 dB sensitivity it is easy to drive and does not need a high-power amplifier.
What size hole does the Focal 100IWLCR5 In-Wall LCR Speaker need?
The cut-out is 415 by 147 mm, the external size is 440 by 173 by 86 mm, and it needs 83 mm of depth from the wall.
Technical Specifications
Type
2-way D'Appolito in-wall LCR loudspeaker
Woofers
2 x 5 and 1/8 inch (13 cm) Polyglass
Tweeter
1 inch (25 mm) aluminium inverted dome, 360 degree pivot
Frequency response
55 Hz to 23 kHz (within 3 dB); 43 Hz at minus 6 dB
