JBL AC118S 18 inch Passive Subwoofer

JBL AC118S 18 inch Passive Subwoofer

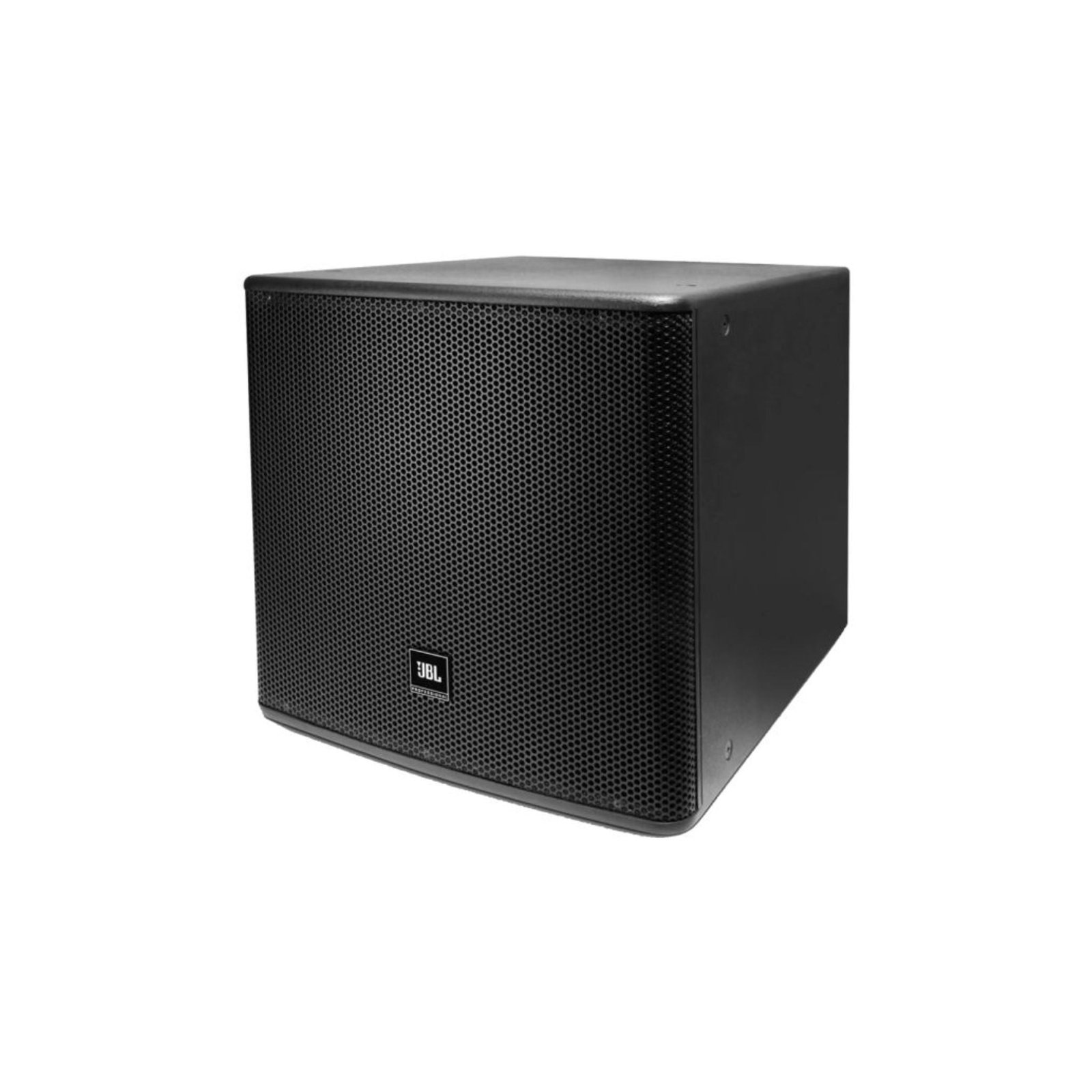

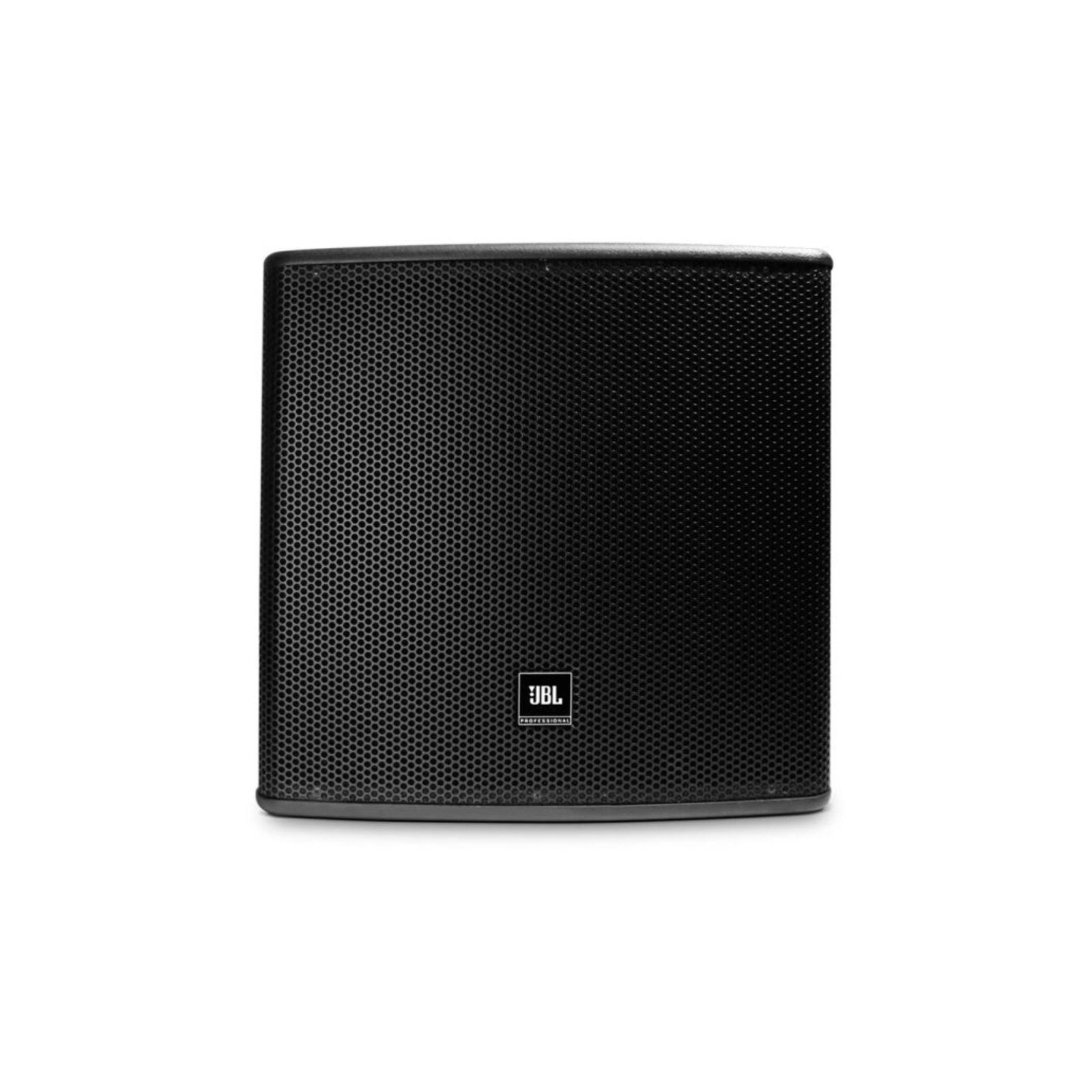

The JBL AC118S is a passive 18-inch subwoofer from JBL Professional’s AE Application Engineered series, built for fixed installation and sound reinforcement in venues such as auditoriums, houses of worship, clubs, theatres and performance spaces. It is a front-loaded, vented enclosure housing a single 18-inch low-frequency driver with a 3-inch (75mm) voice coil. As a passive design it contains no amplifier of its own: it is driven by an external power amplifier and system processing, which is the normal arrangement in professional installations where amplification is centralised in a rack. Its power ratings should be read in professional terms — 450 watts continuous, 900 watts program and 1,800 watts peak — rather than the single inflated figure sometimes used in consumer marketing.

Key features

• 18-inch low-frequency driver: A 457mm driver with a 75mm voice coil in a front-loaded vented enclosure, built for high output at low frequencies.
• 450W continuous power handling: Rated 450 watts continuous, 900 watts program and 1,800 watts peak into a nominal 8 ohm impedance.
• Low-frequency extension: Frequency range of 32Hz to 250Hz at -10 dB, with a plus or minus 3 dB response of 40Hz to 250Hz.
• 95 dB sensitivity: Sensitivity of 95 dB at 1 watt at 1 metre, with maximum SPL of 122 dB continuous and 128 dB peak.
• Installation mounting points: Twelve M10 attachment points allow the enclosure to be suspended or mounted as a venue design requires.
• Professional connections: Dual Neutrik NL4MP connectors plus covered screw terminals give flexible, secure wiring options for installers.
• Plywood enclosure: An 18mm multi-ply plywood cabinet with a textured black finish and a perforated steel grille backed by acoustically transparent foam.

Role in a professional system

A subwoofer of this type supplies the lowest octave that full-range loudspeakers in a venue system cannot reproduce at useful levels. That foundation affects more than film effects or electronic music: kick drums, bass instruments, organ pedal notes and the general sense of scale in a large room all depend on clean output below the range of the main loudspeakers. The AC118S is designed to be crossed over from the system processor, time-aligned with the main array and level-matched to it, so the crossover work belongs to the installation design rather than to controls on the cabinet. Multiple units can be deployed together where a venue needs higher output or more even low-frequency coverage across a wide seating area.

Construction and installation

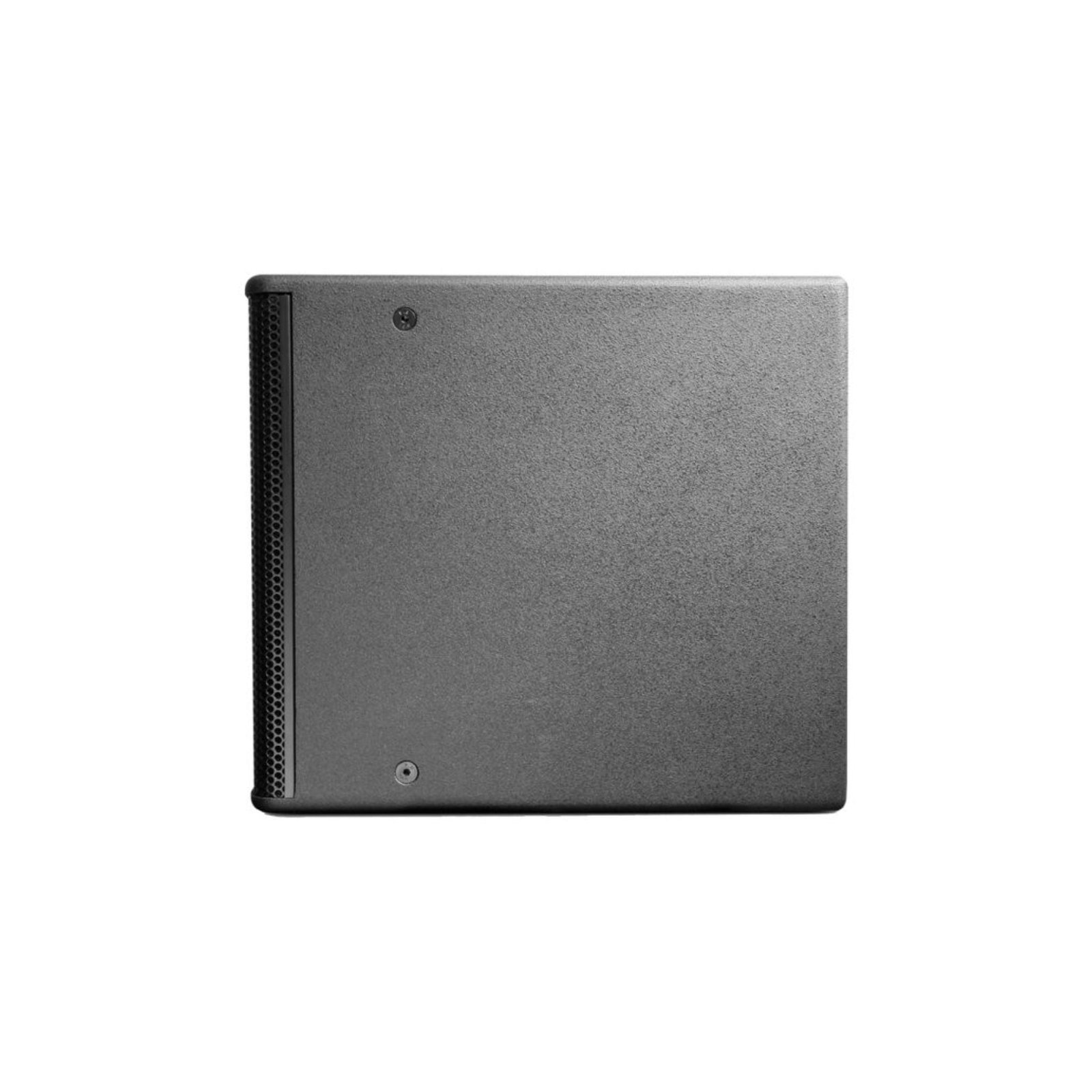

The enclosure measures 548 x 561 x 720 mm and weighs 32.3 kg, dimensions that reflect an 18-inch driver and the internal volume low-frequency reproduction requires. The 18mm plywood construction, steel grille and textured finish are intended for working venues rather than domestic display. Twelve M10 points give riggers options for flown or mounted placement, subject always to proper rigging practice and rated hardware. JBL also lists a white version available on request, which matters in venues where loudspeakers must blend with light interiors; this listing is for the standard black finish model described by its SKU and name.

Amplification considerations

Because the AC118S is passive, amplifier choice is part of the specification. An amplifier comfortably able to deliver the subwoofer’s program power into 8 ohms, with appropriate limiting set in the processor, protects both the driver and the sound quality. Running an undersized amplifier into clipping is a common cause of driver failure in subwoofers, and it also audibly compresses the very dynamics the subwoofer was installed to provide. Venue designers normally also apply a high-pass filter below the useful range to prevent wasted excursion on inaudible infrasonic energy.

For installers building a JBL AE series system, the AC118S provides the series’ dedicated high-power 18-inch low-frequency component: substantial, predictable and designed to be engineered into a venue rather than simply placed in one.
