Polk Audio Monitor XT10 10-inch Powered Subwoofer

Polk Audio Monitor XT10 10-inch Powered Subwoofer

The Polk Audio Monitor XT10 is a 10-inch powered subwoofer from the Monitor XT series, built to give music and home theatre systems the low-frequency foundation that bookshelf and compact tower speakers cannot produce on their own. A long-throw, high-excursion Dynamic Balance woofer fires downward into the floor, driven by a Class D amplifier rated at 50 watts continuous and 100 watts peak, inside a critically braced ported cabinet. The result is extension down to 24 Hz from a box that still fits beside a media unit or in a corner of a modest room.

The XT10 is timbre- and design-matched to the Monitor XT speaker range, but its job is universal: reproduce the LFE channel of film mixes, fill in the lowest octaves of music, and take low-bass load off the main speakers so they play cleaner at a given volume. A subwoofer also improves the rest of the system — with bass handled separately, midrange clarity and soundstage focus typically improve, because the main drivers are no longer straining at frequencies they reproduce poorly.

Key features

• 10-inch long-throw woofer: The down-firing Dynamic Balance driver uses the floor as a loading surface, spreading bass energy evenly through the room.
• 50W RMS / 100W peak Class D amplifier: Efficient amplification with the headroom to handle film peaks without strain or excess heat.
• Extension to 24 Hz: Overall frequency response of 24 to 160 Hz reaches the lowest effects in modern soundtracks.
• Down-firing port: The bass-reflex port fires alongside the woofer, increasing output and making placement against a wall more forgiving.
• Variable low-pass crossover: Adjustable from 40 to 160 Hz, with an LFE position for receiver-managed bass, so the XT10 blends with large towers or small satellites alike.

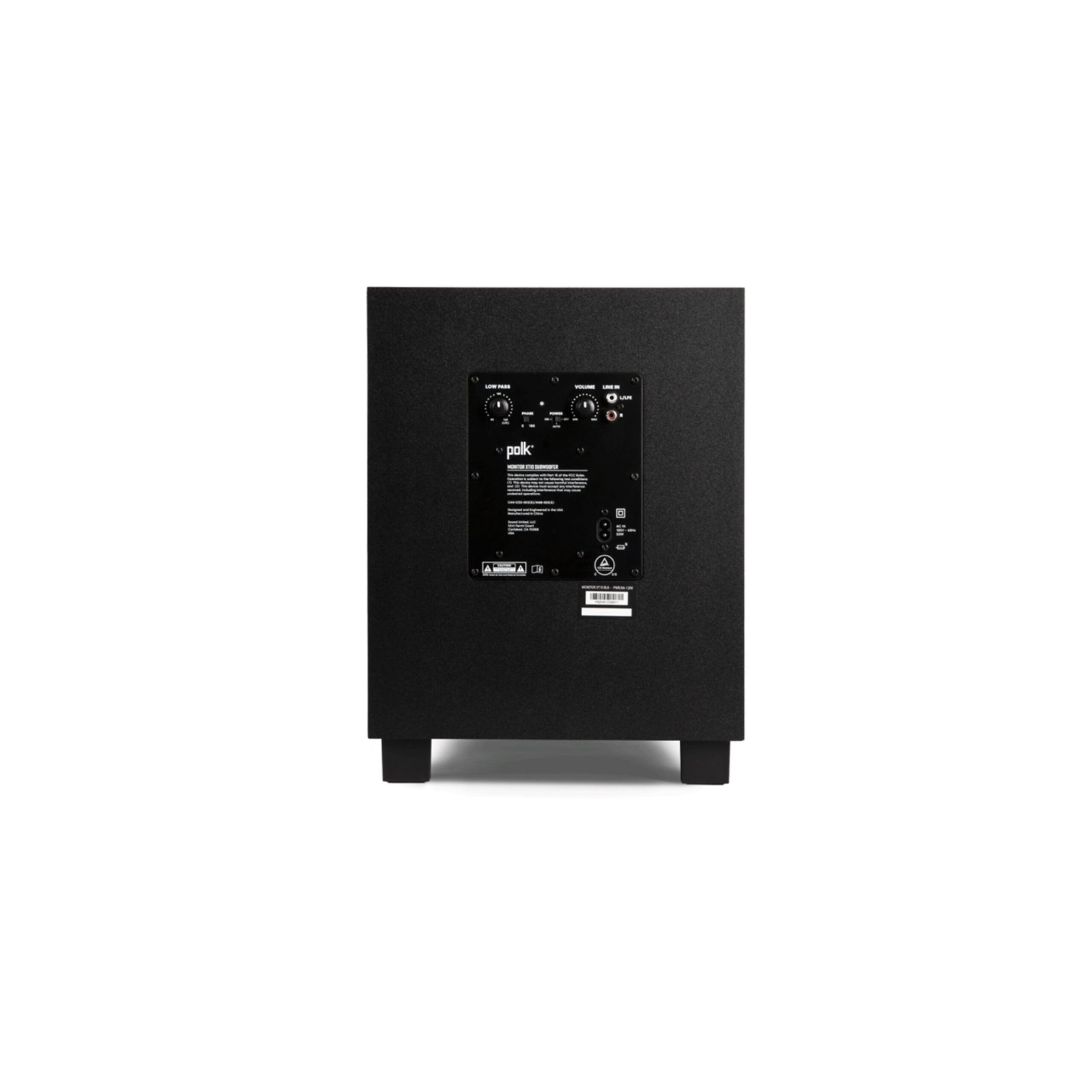

• Phase and volume controls: A 0/180-degree phase switch and level control on the rear panel allow proper integration at the listening seat.
• LFE and line-level inputs: Connect from a receiver’s subwoofer output or from a stereo amplifier’s line outputs.
• Auto power: The amplifier switches on with signal and sleeps when the system is idle.

Cabinet and driver engineering

Deep bass from a compact cabinet depends on controlling resonance. The XT10’s enclosure is critically braced so its panels do not add their own sound to the driver’s output, and the ported design extends low-frequency output efficiently rather than demanding more amplifier power. Down-firing both the woofer and the port loads the room consistently regardless of which way the cabinet faces, which simplifies placement in corners and along walls — and keeps the driver safely out of the way of feet, children and pets.

Setting up the blend

Start with the XT10 along the front wall between the main speakers, set the crossover near where the main speakers roll off (around 80 Hz suits most bookshelf systems, and the receiver’s bass management handles this automatically when the LFE input is used), then adjust level until bass lines and effects sound extended rather than added. The phase switch is set by ear at the listening seat: whichever position gives fuller, tighter bass at the crossover region is correct. Film listeners can run the LFE level a little hotter; music listeners usually prefer a more conservative setting.

Growing the system

A single XT10 transforms a Monitor XT stereo or 5.1 system; a second XT10, placed asymmetrically in the room, evens out seat-to-seat bass variation and adds headroom for larger spaces. Because the amplifier and controls are identical, matching two units takes minutes.

For systems built on Monitor XT speakers — or any compact speakers that run out of low end — the XT10 supplies the missing octave with control, at a size and simplicity that fit everyday rooms.
