TASCAM Sonicview 16DP 16-Channel Digital Mixing Console with Dual Power Redundancy and Dante

SKU TASCAM-16DP-16-CHANNEL-WITH

₹904,000

  • Price includes GST, invoice provided
  • Dispatched the same day
  • Cash on delivery up to ₹45,000
  • Money-back if it arrives damaged

Professional 16-channel digital mixing console with 54-bit FPGA engine, dual AC/DC power redundancy, 32-bit/96 kHz processing, and Dante network audio integration. Built for mission-critical live sound, broadcast, and studio environments where reliability and sonic excellence are non-negotiable.

Currently out of stock

Notify me when in stock

Tap to send us a WhatsApp message. We’ll reply as soon as it’s back in stock, and can suggest a similar model in the meantime.

100% secure checkout · Pay your way
We accept UPI, Google Pay, PhonePe, Paytm, RuPay, Mastercard, Visa and American Express
100% genuine, authorised stock
Official Indian warranty
Same-day dispatch · 7-day returns
Product highlights
  • Input Channels44 input channels (40 mono + 2 stereo) + 4 stereo FX returns
  • Mic Preamps16 HDIA mic/line inputs, +32 dBu maximum input level
  • Mix Engine96 kHz / 54-bit floating-point FPGA
  • Dante NetworkingBuilt-in 64 x 64 at 48 kHz, 32 x 32 at 96 kHz
  • Buses22 flexible buses + Main L/R with 31-band graphic EQ
  • Power SupplyDual power redundancy (DP) via optional PS-P2450 adapter

Description

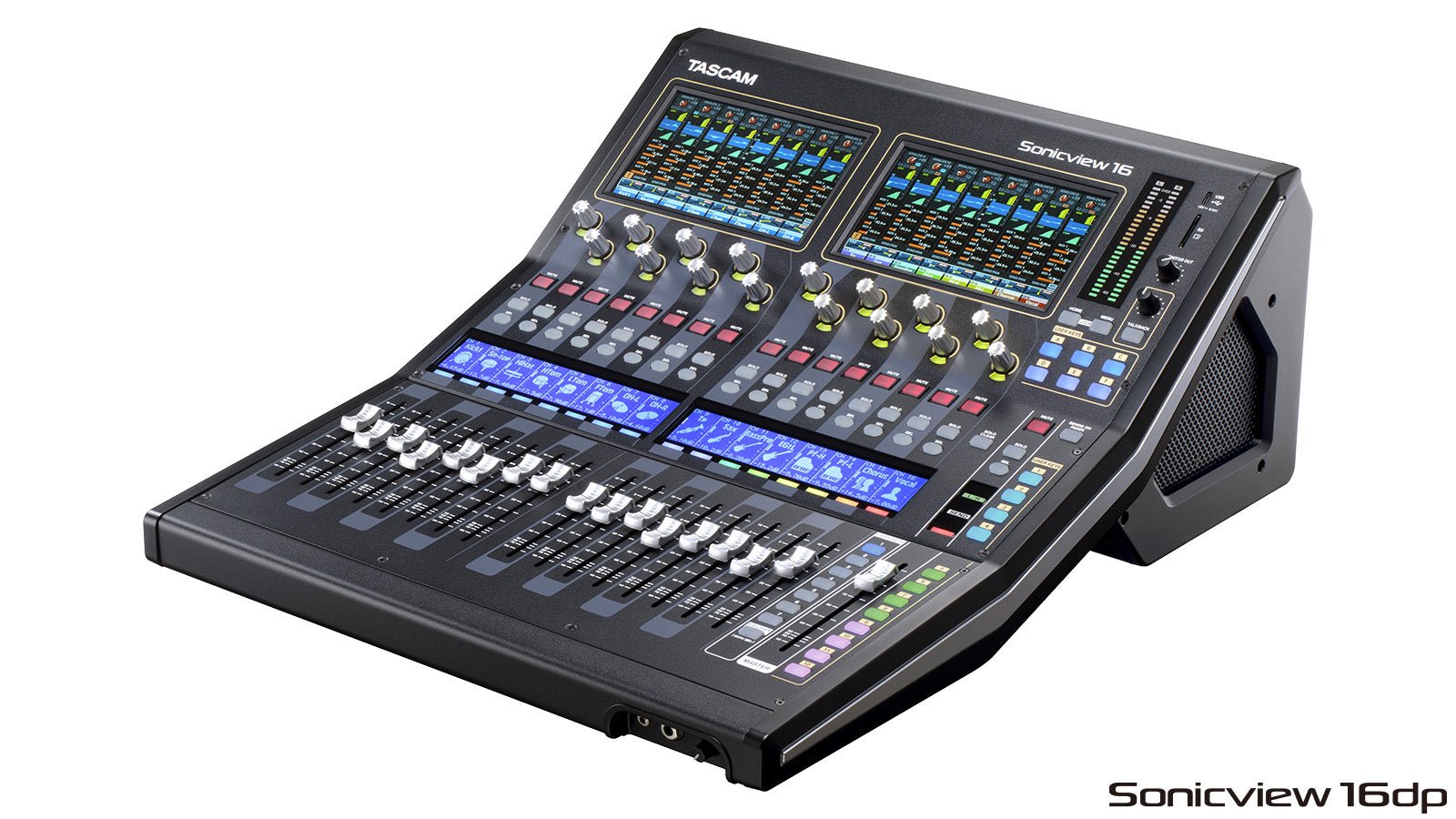

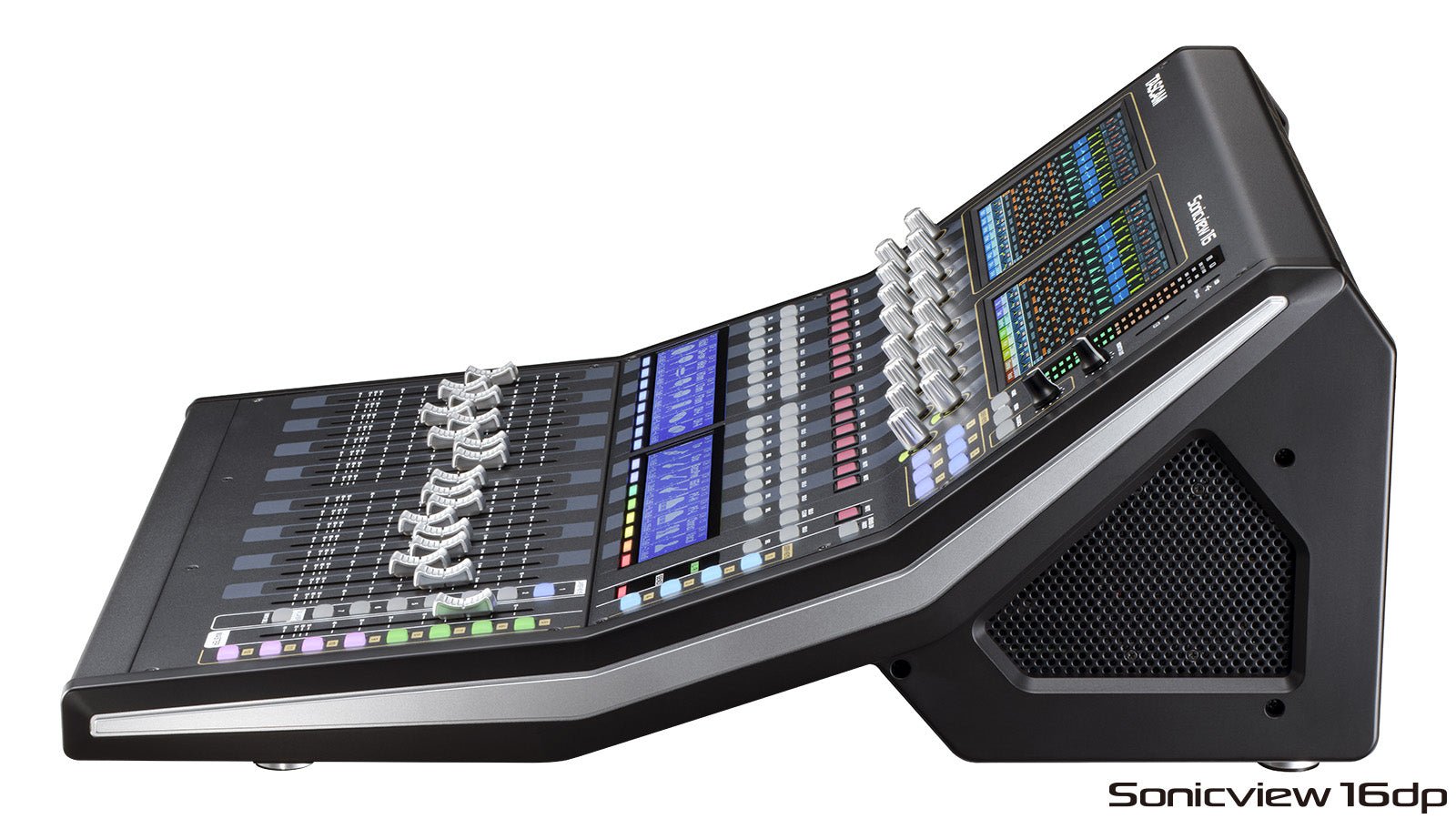

Tascam Sonicview 16DP Digital Mixing Console

The Tascam Sonicview 16DP is a professional digital mixing console built for live sound, broadcast and installation work where the show cannot stop for a reboot. It packs a 44-input mixing architecture, a 96 kHz FPGA mix engine and a built-in 64-channel Dante interface into a compact surface with sixteen motorised faders and two touchscreens. The DP suffix marks the dual-power version of the console: a second, redundant power feed can be connected through the optional PS-P2450 adapter, so a single PSU failure does not take the desk down mid-event.

Key features

  • 44 input channels (40 mono, 2 stereo) plus 4 stereo effects returns
  • 96 kHz, 54-bit floating-point FPGA mixing engine
  • 16 HDIA microphone preamps with up to +32 dBu input headroom
  • Built-in Dante audio networking, 64 x 64 channels at 48 kHz
  • 32-in / 32-out USB audio interface at up to 32-bit / 96 kHz
  • Dual power redundancy for mission-critical live and broadcast use
  • Two 7-inch touchscreens and 16 + 1 motorised 100 mm faders

Mix engine and channel architecture

Inside, the Sonicview 16DP processes audio on an FPGA engine running at 96 kHz with 54-bit floating-point resolution, which keeps internal headroom wide and analogue-to-analogue latency down to a measured 0.51 ms. The 44 input channels and 4 effects returns feed 22 flexible buses that can be configured as auxes, groups or matrices, plus a main L/R bus carrying a 31-band graphic EQ. Four internal multi-effects processors cover reverb, delay and modulation duties, and every bus offers the processing expected of a modern digital desk, including parametric EQ, dynamics and delay.

Local I/O and Dante networking

The rear panel carries 16 of Tascam’s HDIA (High Definition Instrumentation Architecture) mic/line inputs, designed for low noise and wide headroom, and 16 XLR line outputs. Dante is built in rather than optioned: 64 inputs and 64 outputs at 48 kHz, or 32 x 32 at 96 kHz, with support for redundant networking, AES67, Dante Domain Manager and SMPTE ST 2110 workflows. Two expansion slots accept Tascam’s optional interface cards, including MADI, AES/EBU and additional analogue output cards, and the SB-16D Dante stage box extends remote I/O over the network.

Control surface

Two 7-inch colour touchscreens sit above sixteen 100 mm motorised faders plus a master fader, giving a channel-at-a-glance workflow with direct touch control of EQ and dynamics. Custom layers and user keys let engineers build the surface around a show, while the Tascam Sonicview Control app mirrors the desk on a computer or tablet for remote mixing and offline show preparation.

Built for continuous duty

The 16DP variant is specified for venues and broadcast facilities that run around the clock. Its dual power arrangement accepts the optional PS-P2450 adapter to feed the console from two independent supplies, and the fan-conscious mechanical design suits control rooms and theatres where surface noise matters. The full manufacturer specification for this console is listed in the Additional Information tab.

Buying guide: Best Audio Mixer in India

Complete your setup: Pair the TASCAM Sonicview 16DP 16-Channel Digital Mixing Console with Dual Power Redundancy and Dante with the AKG P120 Cardioid Condenser Recording Microphone and the JBL 305P MkII Studio Monitor.

Additional Information

Specifications

Input Channels44 input channels (40 mono + 2 stereo) + 4 stereo FX returns
Mic Preamps16 HDIA mic/line inputs, +32 dBu maximum input level
Mix Engine96 kHz / 54-bit floating-point FPGA
Dante NetworkingBuilt-in 64 x 64 at 48 kHz, 32 x 32 at 96 kHz
Buses22 flexible buses + Main L/R with 31-band graphic EQ
Power SupplyDual power redundancy (DP) via optional PS-P2450 adapter
Line Outputs16 XLR line outputs
USB Audio Interface32-in / 32-out, 32-bit / 96 kHz
Faders16 + 1 motorised 100 mm faders
Displays2 x 7-inch colour touchscreens
Effects Processors4 multi-effects processors
Expansion Slots2 (MADI, AES/EBU, analogue output cards)
Latency0.51 ms analogue-to-analogue
BrandTascam
ModelSonicview 16DP
Model / SKUTASCAM-16DP-16-CHANNEL-WITH
CategoryDigital Mixers
ConditionBrand new, sealed box
WarrantyOfficial manufacturer warranty (India)
GST invoiceYes, input credit available
