Audio-Technica AT2020 Cardioid XLR Condenser Microphone

Audio-Technica AT2020 Cardioid Condenser Microphone

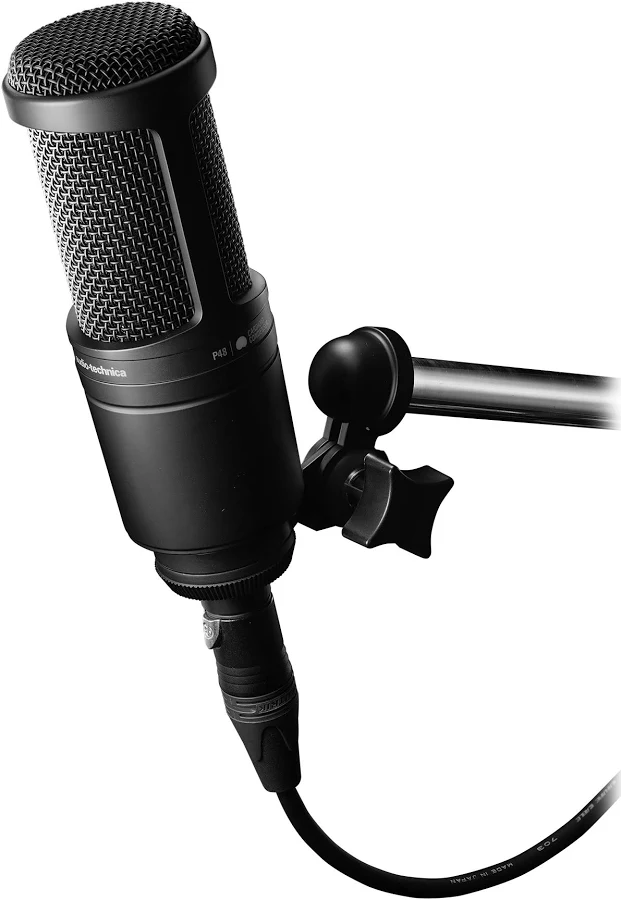

The Audio-Technica AT2020 is the condenser microphone that introduced a generation of home studios to real recording: a side-address, cardioid condenser with a low-mass diaphragm, a wide 20 Hz to 20 kHz response, and the headroom to handle 144 dB SPL. It remains a reference recommendation because it does the fundamental things right — low self-noise for its class, honest voicing, and construction that survives studio life.

The AT2020’s capsule is a fixed-charge back-plate condenser, permanently polarised, in a design prioritising flat response and fast transients. The cardioid pattern focuses on the source in front and rejects the room behind, which is precisely the behaviour a bedroom or project studio needs. It runs on 48 V phantom power — 11 to 52 V accepted — from any interface or mixer, and connects on a standard XLR.

Key features

• Side-address cardioid condenser microphone
• Frequency response of 20 Hz to 20 kHz
• Maximum input level of 144 dB SPL
• Dynamic range of 124 dB
• Low-mass diaphragm for extended, detailed response
• 100-ohm output impedance for easy preamp matching
• Runs on 48 V phantom power (11–52 V range)

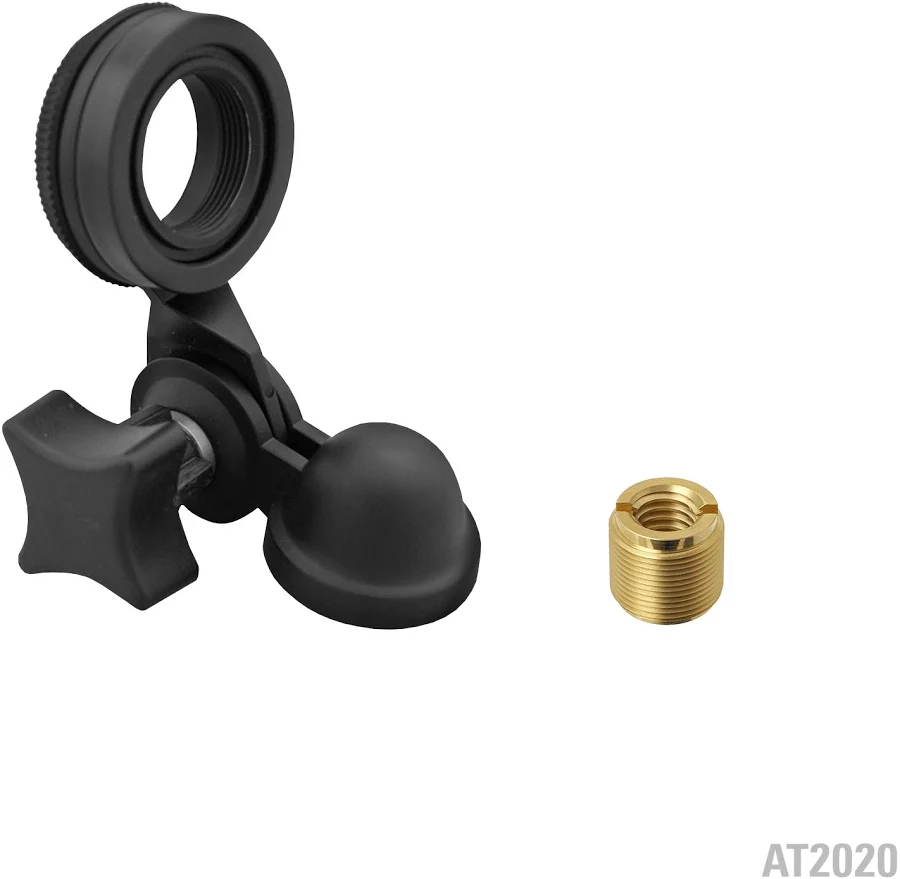

• Pivoting stand mount and protective pouch included

What it records well

Voice is the home ground: podcasts, voiceover, sung vocals and streaming, all with the clarity and presence listeners describe as “studio”. Acoustic guitar, piano and strings take the same detail. The high SPL ceiling means it also serves on guitar cabinets, toms and brass without a pad — one microphone covering the sources a small studio actually meets.

Studio practice

A condenser rewards a little care: record 15–20 cm from the capsule for voice with a pop filter, keep the room’s hard reflections behind the microphone where its pattern rejects them, and set preamp gain so peaks stay honest. The AT2020’s low self-noise means quiet sources — fingerstyle guitar, soft narration — stay clean without heroic gain.

Longevity

The AT2020 has been in continuous production for two decades because studios keep them: the metal body, the standard mount thread and the replaceable pouch-and-mount accessories make it a tool rather than a gadget. Many engineers who started on one still own it as a dependable second or third condenser.

If a studio can have only one condenser, this is the pattern — and at its price, the AT2020 is still the benchmark.

Ownership notes

Store the AT2020 in its pouch, away from damp and smoke, and let it reach room temperature before a session if it has travelled in the cold. Treat the capsule end with respect — no test taps, no blowing into the grille. A microphone stand, a cable and a pop filter are its whole supporting cast. Owners routinely keep an AT2020 for decades; the design’s simplicity is why so many first studios still have theirs.
