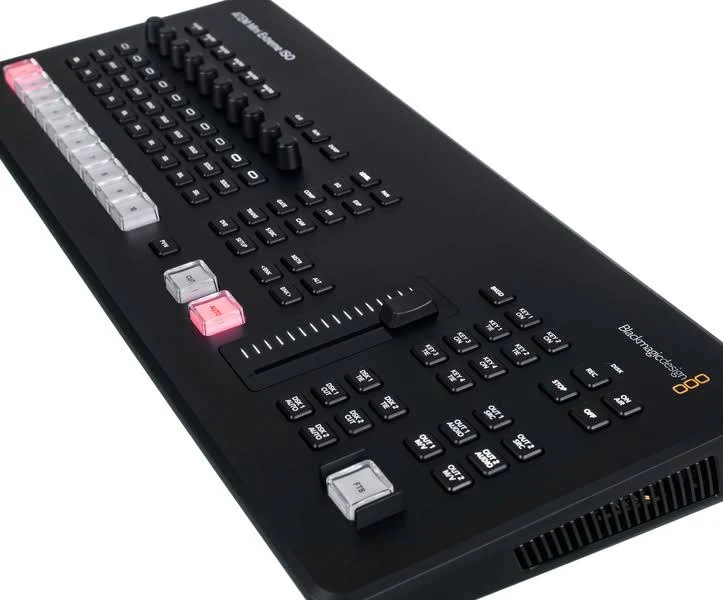

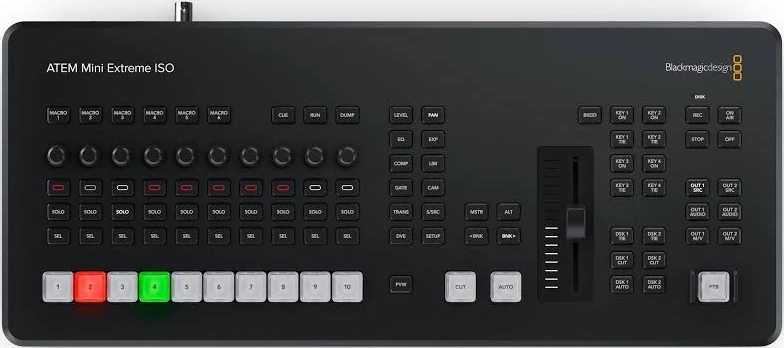

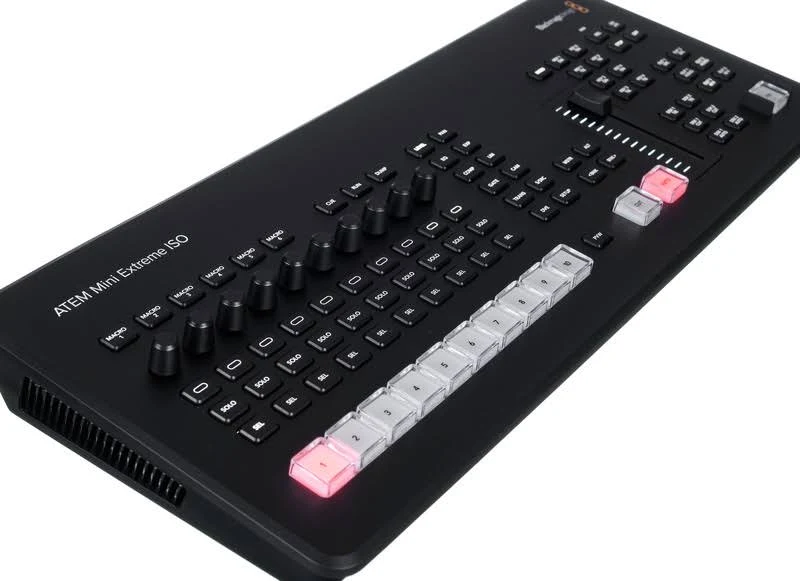

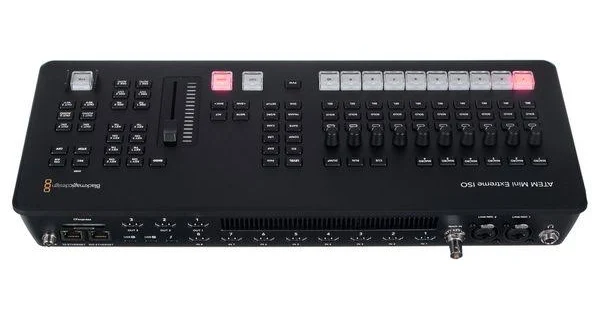

Blackmagic Design ATEM Mini Extreme ISO G2 Live Production Switcher
Blackmagic Design ATEM Mini Extreme ISO G2 Live Production Switcher
ATEM Mini Extreme ISO G2 is a live production switcher with 8 x HDMI inputs for a compatible HD camera and programme workflow. Why Choose ATEM Mini Extreme ISO G2? The G2 adds a revised connection and media arrangement, including CFexpress, Thunderbolt, 10G Ethernet storage access and balanced XLR combo audio inputs. It retains an HD live-production workflow despite those additional connections. Confirm the intended storage, computer and audio configuration rather than treating every USB-C-shaped port as the same interface. Key Features – 8 HDMI inputs and 3 HDMI outputs. – ISO input and programme recording. – CFexpress and USB recording options. – Thunderbolt, 10G Ethernet and XLR combo inputs. Best Suited For
Combining compatible cameras, computers and other sources into a live programme for events, teaching, interviews or streaming. Plan the input connector type and production resolution before counting cameras. An HDMI source and an SDI source may need a suitable converter to join the same system. Recording the finished programme differs from recording individual camera feeds, so select an ISO version when separate input files are required for later editing. Setup and Connection Guide
Connect supported video sources and a monitoring display with the equipment safely positioned and adequately ventilated. Set a compatible production standard and check every camera and computer input before going live. Configure audio levels, microphone or line-input settings and monitoring through the supported control software. For streaming, establish a stable network connection and enter the destination settings securely. For recording, use supported media with sufficient capacity and sustained write performance. Make a short test recording, replay it and verify synchronisation and sound. Label camera inputs and rehearse transitions. Keep a local operational plan for network interruptions; an internet connection and platform account are separate requirements. Frequently Asked Questions
Does Extreme ISO G2 switch a native 4K HDMI programme? Its documented HDMI production standards run up to 1080p60 HD. Thunderbolt and 10G Ethernet do not change that into the 4K8 model’s Ultra HD SDI production path. Does an ISO version record the same thing as programme-only recording? No. ISO recording adds separate input recordings for editing, subject to the specific model and media requirements. Programme recording saves the live switched result. Does a USB-C connector automatically mean Thunderbolt or 4K video support? No. Connector shape does not establish the protocol or supported picture format. Use the exact model specification for each port and production mode. Technical Specifications Specification
Detail Model
ATEM Mini Extreme ISO G2 Primary video inputs
8 x HDMI Production standard
HD up to 1080p60 Recording reference
8 HDMI ISO recordings plus switched programme Software
Compatible ATEM Software Control Media and cables
Confirm actual package and supported specifications Explore Related Equipment
Compare Blackmagic Design ATEM Mini Extreme Live Production Switcher when checking the model, connections and installation requirements for your system.
Additional Information
Specifications
Brand
Blackmagic Design
Model
ATEM Mini Extreme ISO G2
HDMI Inputs
8 x HDMI Type A, 10-bit HD, standards converted
HDMI Outputs
3
Video Standard
HD up to 1080p60
Streaming
Built-in direct streaming via RTMP and SRT
Recording
ISO recording of all 8 inputs plus program as H.264 MP4, to CFexpress or USB-C media
Audio Inputs
2 x XLR combo with 48 V phantom power, 1 x BNC 32-channel MADI
Audio Mixer
Fairlight 26-input mixer with 6-band parametric EQ and dynamics
Upstream Keyers
4
Multiview
1 output configurable to 16, 13, 10, 7 or 4 views
Computer Interface
2 x USB-C 3.1 Gen 1, 1 x Thunderbolt
Ethernet
1 x 1G Ethernet, 1 x 10G Ethernet
Power
External 12 V power supply, 120 W max
Dimensions
414 x 187 x 50 mm
Weight
1.86 kg
Model / SKU
BMD-ATEM-MINI-EXTREME-ISO-G2
Category
Video Mixer / Switcher / Converters
Condition
Brand new, sealed box
Warranty
Official manufacturer warranty (India)
GST invoice
Yes, input credit available
