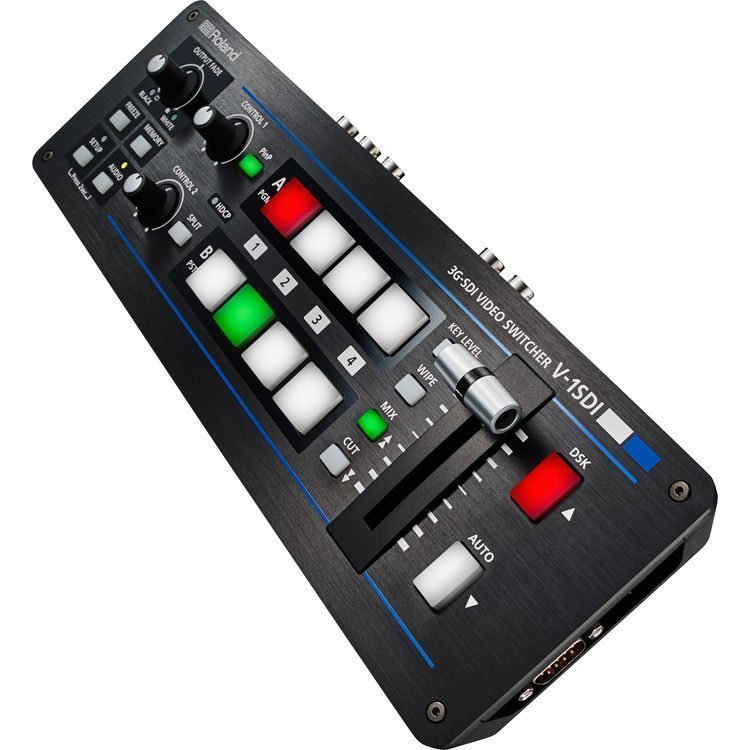

Roland V-1SDI 4-channel Hd Video Switcher
SKU ROLAND-V-1SDI-4-CHANNEL-HD
Original price was: ₹200,000.₹160,000Current price is: ₹160,000. Save ₹40,000 (20%)
- Price includes GST, invoice provided
- Dispatched the same day
- Cash on delivery up to ₹45,000
- Money-back if it arrives damaged
Roland V-1SDI 4-channel HD video switcher – 3G-SDI inputs, HDMI output, built-in audio mixer, compact broadcast-grade live production switcher.
Currently out of stock
Tap to send us a WhatsApp message. We’ll reply as soon as it’s back in stock, and can suggest a similar model in the meantime.

Product highlights
- Video inputs3 x 3G-SDI BNC and 2 x HDMI Type A
- Video outputs2 x 3G-SDI BNC program and preview, 1 x HDMI multi-view
- Supported formats1080p, 1080i and 720p HD
- Video processing4:2:2, 8-bit
- Composition effectsPinP, Split, Quad and DSK with luminance and chroma key
- TransitionsCut, Mix and Wipe with 30 wipe types
Description
Roland V-1SDI 4-channel Hd Video Switcher
Roland V-1SDI – 4-Channel SDI Video Switcher with Multi-View Monitor
The Roland V-1SDI is a compact professional video switcher designed for live event production, broadcast, house of worship, education, and corporate AV applications that require reliable, broadcast-quality SDI video switching in a portable, easy-to-operate format. Handling up to four 3G-SDI input signals including camera feeds, playback sources, and graphics, the V-1SDI allows live operators to switch between sources, create picture-in-picture compositions, and manage transitions with professional quality and minimal setup time. The integrated multi-view output displays all inputs simultaneously on a single monitor, giving the operator complete situational awareness during live productions.
Four 3G-SDI Inputs for Professional Sources
The V-1SDI accepts four independent 3G-SDI video inputs, the professional broadcast standard used by virtually all professional cameras, routers, and broadcast equipment. 3G-SDI supports video at resolutions up to 1080p60, making the V-1SDI suitable for all current HD broadcast and live production formats. The SDI inputs auto-detect the format of the incoming signal, supporting 1080p, 1080i, and 720p sources simultaneously without requiring manual format configuration. Each SDI input also carries embedded audio, which the V-1SDI can extract and route independently, simplifying the signal chain by eliminating the need for separate audio de-embedders in many installations.
Integrated Multi-View and Preview Monitor
One of the V-1SDI's most valuable features for live production operators is the integrated multi-view output, which displays all four inputs and the current program output simultaneously on a single monitor screen connected to the dedicated multi-view SDI output. This provides the operator with complete visibility of all camera feeds and the current on-air output without requiring a rack of separate monitors. Each source in the multi-view is labelled with customisable source names, and tally information is overlaid to indicate which source is currently on program output. The multi-view dramatically reduces the equipment footprint and cost of a live production setup.
Transitions, Compositions, and Picture-in-Picture
The V-1SDI provides a range of professional transition types including cuts, dissolves, wipes, and more, each selectable and adjustable via the front panel controls. The T-Bar fader provides manual control over transition speed for precise, audience-responsive switching during live events. Picture-in-picture compositing allows one source to be overlaid within a smaller window on another source, which is useful for comparing camera angles during live sports or for presentation applications where a presenter's camera is shown alongside slide content. The DSK (Downstream Keyer) allows graphical overlays such as lower-thirds and bugs to be applied over the program output.
Audio Integration and Connectivity
In addition to extracting embedded SDI audio, the V-1SDI includes an analogue audio input and output for external audio mixing integration, with a basic built-in audio mixer for managing levels between embedded and analogue sources. The output section provides a program SDI output, the multi-view SDI output, and an HDMI output for connection to projectors, confidence monitors, or recording equipment that accepts HDMI input. The compact chassis and straightforward front-panel controls make the V-1SDI operable by non-specialist staff with minimal training – a significant advantage for corporate AV environments where the operator changes frequently. For event producers, broadcast engineers, and AV professionals who need a reliable, compact SDI video switcher with an integrated multi-view display for live production environments, the V-1SDI delivers professional broadcast capability in a form factor and price point that makes it accessible to productions of all scales.
Complete your setup: Pair the Roland V-1SDI 4-channel Hd Video Switcher with the AVMATRIX PTZ1271 Full HD PTZ Camera and the Hollyland Mars 4K Wireless Video Transmitter.
Additional Information
Specifications
| Video inputs | 3 x 3G-SDI BNC and 2 x HDMI Type A |
|---|---|
| Video outputs | 2 x 3G-SDI BNC program and preview, 1 x HDMI multi-view |
| Supported formats | 1080p, 1080i and 720p HD |
| Video processing | 4:2:2, 8-bit |
| Composition effects | PinP, Split, Quad and DSK with luminance and chroma key |
| Transitions | Cut, Mix and Wipe with 30 wipe types |
| Brand | Roland |
| Model | V-1SDI |
| Switcher type | 4-channel HD video switcher |
| Audio mixer | 14-channel digital mixer |
| Audio processing | 24-bit, 48kHz linear PCM |
| Audio effects | EQ, delay, compressor, gate, reverb and mastering |
| Remote control | USB Type B and RS-232 |
| Power consumption | 25W |
| Dimensions | 313 x 108 x 59 mm |
| Weight | 1.2 kg excluding AC adaptor |
| Model / SKU | ROLAND-V-1SDI-4-CHANNEL-HD |
| Category | Video Mixer / Switcher / Converters |
| Condition | Brand new, sealed box |
| Warranty | Official manufacturer warranty (India) |
| GST invoice | Yes, input credit available |
