Epson EB-760W WXGA Laser Ultra-Short-Throw Projector

Epson EB-760W WXGA Laser Ultra-Short-Throw Projector

The Epson EB-760W WXGA Laser Ultra-Short-Throw Projector gives classrooms and meeting rooms a bright, maintenance-light laser image from just above the wall. The Epson EB-760W WXGA Laser Ultra-Short-Throw Projector delivers 4,100 lumens of WXGA 1280 x 800 projection, with a laser source rated at 20,000 hours normal and 30,000 hours extended, so the room keeps a bright picture for years without a lamp change. Its ultra-short-throw lens throws 60 to 150-inch images at 16:10 with no presenter shadow.

Why Choose Epson EB-760W WXGA Laser Ultra-Short-Throw Projector?

WXGA is the right resolution for rooms that live on laptops: the 16:10 image matches laptop screens without letterboxing, and 4,100 laser lumens keeps it readable with the lights on. The Epson EB-760W WXGA Laser Ultra-Short-Throw Projector switches on instantly, holds its brightness over a long service life, and carries a 16 W speaker plus three HDMI inputs, so a standard classroom needs nothing else. It is the non-interactive sibling of the EB-760Wi: same laser platform, without pens or touch.

Key Features

• 4,100 lumens laser brightness: WXGA image that stays bright in lit rooms, 2,800 lumens Extended
• Ultra-short-throw 0.27-0.37:1 lens: 60 to 150-inch images at 16:10 from centimetres away
• Laser life 20,000 / 30,000 hours: no lamp changes across years of daily use
• Over 5,000,000:1 dynamic contrast: deep blacks and clear detail in mixed content

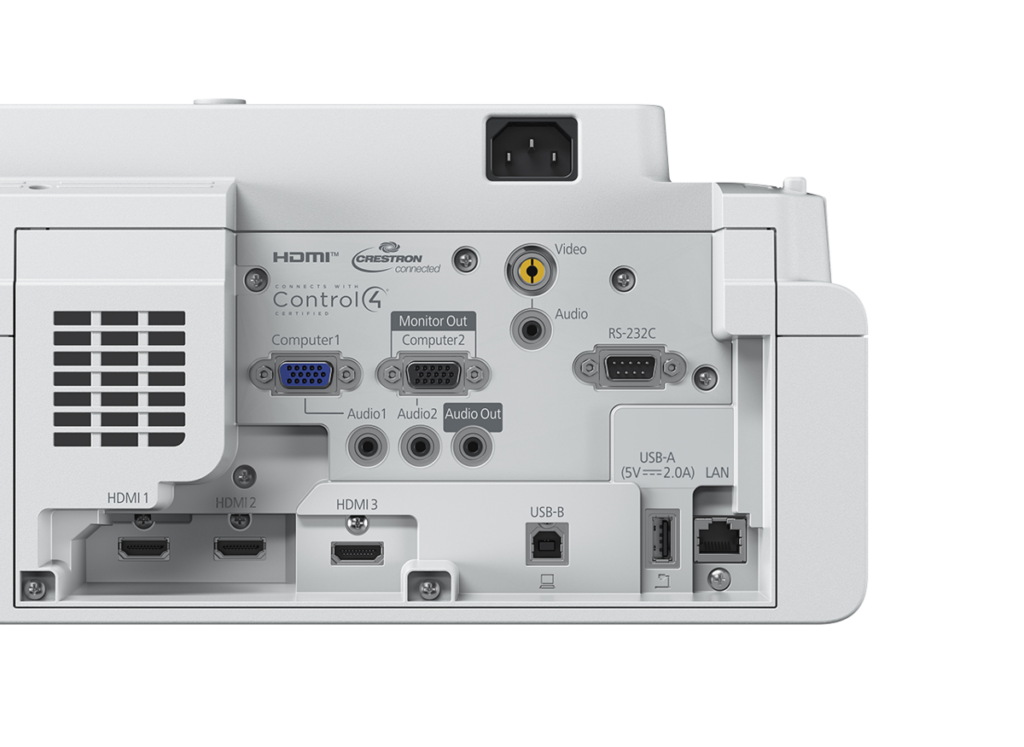

• Three HDMI inputs: PC, document camera and media player connected at once

Best Suited For

The Epson EB-760W WXGA Laser Ultra-Short-Throw Projector is best suited for classrooms, training rooms, meeting rooms and signage walls that run on laptop content and need a bright, low-maintenance image close to the wall. It fits schools standardising on laser, and rooms where interactivity is not required. It is also a good fit for digital signage walls that run all day.

Setup and Connection Guide

Wall-mount the projector above the display wall using the throw-distance table for a 60 to 150-inch image, connect sources over HDMI, and power on for an instant picture. Set focus and geometry from the menu, choose extended laser mode for maximum life in all-day use, and connect LAN for remote monitoring. Use the 16 W speaker for a typical room or route audio out to larger room speakers.

Frequently Asked Questions

Is the EB-760W interactive?

No. The Epson EB-760W WXGA Laser Ultra-Short-Throw Projector is not interactive. The interactive variant is the EB-760Wi, which adds pen and touch support.

What is the difference from the EB-770F?

The EB-760W is WXGA 1280 x 800 at 16:10, while the EB-770F is Full HD 1920 x 1080 at 16:9. Both share the same laser ultra-short-throw platform and 4,100 lumens.

How long does the laser last?

The laser source is rated at 20,000 hours in normal and quiet modes and 30,000 hours in extended mode.

Technical Specifications

Explore Related Products

If the Epson EB-760W WXGA Laser Ultra-Short-Throw Projector is not quite the right fit, compare it with the Epson EB-992F Full HD 3LCD Projector, also available from Pro Audio Video. For full manufacturer specifications, see the official reference page: Epson EB-760W specifications.
