Epson EB-L630SU WUXGA Short-Throw Laser Projector

Epson EB-L630SU WUXGA Short-Throw Laser Projector

The Epson EB-L630SU WUXGA Short-Throw Laser Projector is a 6,000-lumen short-throw installation laser projector for rooms where a long-throw unit cannot fit. The Epson EB-L630SU WUXGA Short-Throw Laser Projector delivers WUXGA 1920 x 1200 projection at a short 0.80-1.07:1 throw ratio, producing 50 to 200-inch images from close to the screen. With HDBaseT, wide lens shift and a 20,000 / 30,000-hour laser source, it is built for permanent installations in tight spaces.

Why Choose Epson EB-L630SU WUXGA Short-Throw Laser Projector?

Short throw at this brightness is unusual and valuable: large, bright images in rooms with low ceilings, short depths or audience seating close to the screen. The Epson EB-L630SU WUXGA Short-Throw Laser Projector keeps the long-throw L630U’s brightness class and WUXGA resolution while moving the projector much closer to the wall, and its lens shift of vertical plus-minus 50 percent and horizontal plus-minus 20 percent keeps placement flexible.

Key Features

• 6,000 lumens laser brightness: 4,200 lumens Extended, for large images in bright rooms
• Short-throw 0.80-1.07:1 lens: 50 to 200-inch images from close to the screen
• WUXGA 1920 x 1200 resolution: 16:10 image for documents, video and presentations
• Wide lens shift: vertical plus-minus 50 percent, horizontal plus-minus 20 percent
• HDBaseT and dual HDMI: long-distance video plus local sources, 4K input support

Best Suited For

The Epson EB-L630SU WUXGA Short-Throw Laser Projector is best suited for lecture halls, museums, exhibition spaces, retail and corporate rooms where throw distance is short but the image must be large and bright. It fits installations where a standard long-throw projector would sit in the audience or behind a wall.

Setup and Connection Guide

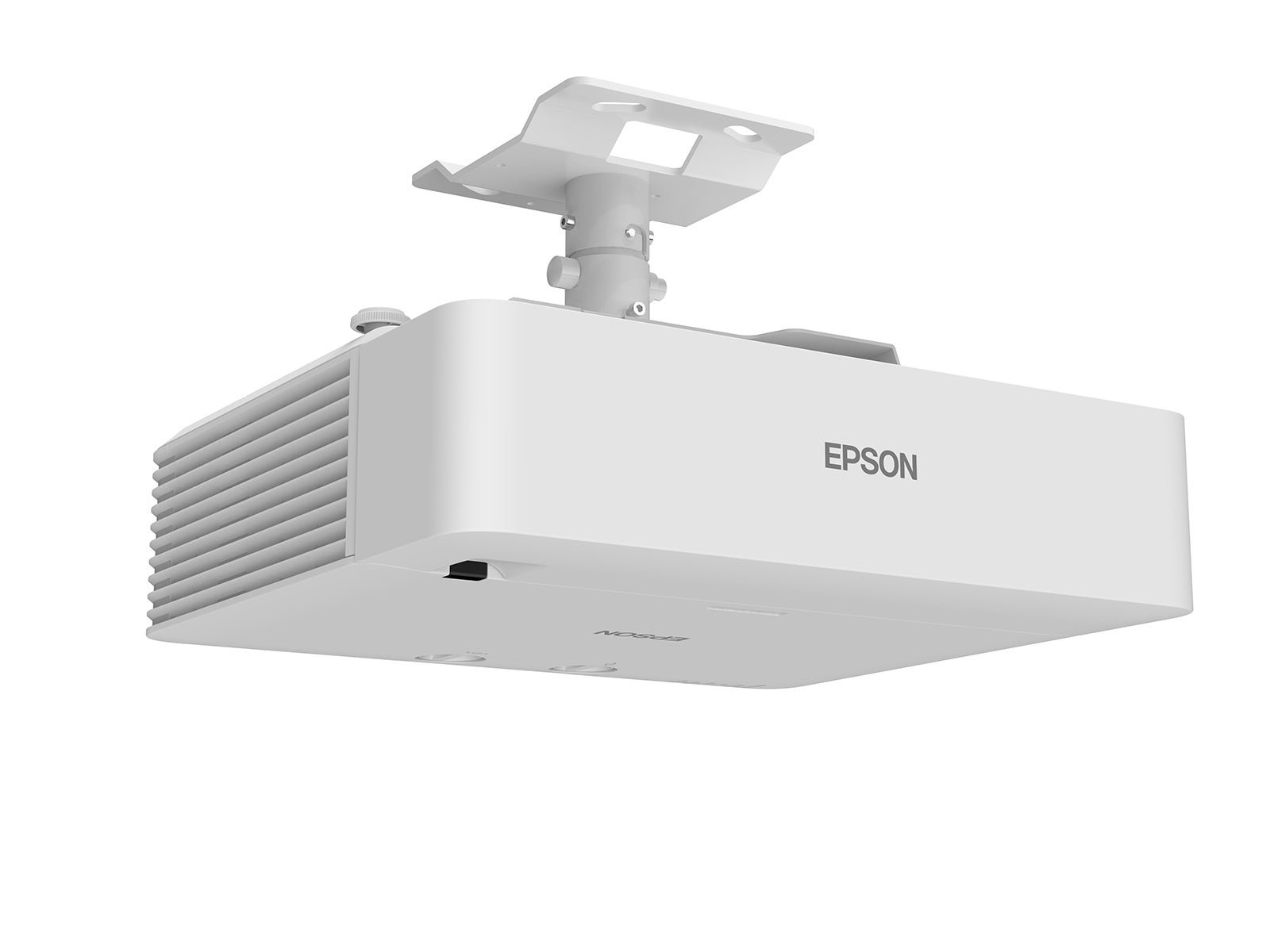

Ceiling- or shelf-mount the projector within its 0.80-1.07:1 throw range for a 50 to 200-inch image, run video over HDBaseT for long distances, and use lens shift to centre the picture without moving the mount. Set the laser to extended mode for maximum life, connect LAN for monitoring, and route audio to the venue system where the 10 W speaker is not enough. Note the sheet names no colour; this listing is colour-neutral, and the unit is also available in black per one source.

Frequently Asked Questions

What is the difference between the L630SU and the L630U?

The L630SU is the short-throw version at 0.80-1.07:1 and 6,000 lumens, while the L630U is the long-throw version at 1.35-2.20:1 and 6,200 lumens. The Epson EB-L630SU WUXGA Short-Throw Laser Projector is the choice when throw distance is limited.

What colours is it available in?

One source lists a black version as well as white. The sheet names no colour, so this listing does not pin a colour; confirm the unit colour before dispatch.

How long does the laser last?

The laser source is rated at 20,000 hours normal and 30,000 hours extended.

Technical Specifications
