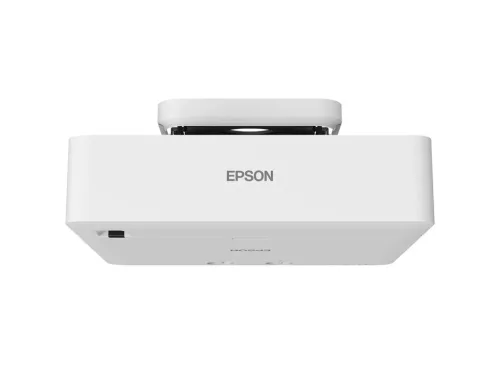

Epson EB-L630U WUXGA Laser Projector

Epson EB-L630U WUXGA Laser Projector

The Epson EB-L630U WUXGA Laser Projector is a 6,200-lumen long-throw installation laser projector for large halls, auditoriums and venues. The Epson EB-L630U WUXGA Laser Projector delivers WUXGA 1920 x 1200 resolution with a 1.6x optical zoom, wide lens shift and HDBaseT connectivity, producing 50 to 500-inch images from a standard throw distance. Its laser source lasts 20,000 hours normal and 30,000 hours extended, keeping a large venue bright with minimal maintenance.

Why Choose Epson EB-L630U WUXGA Laser Projector?

For a permanent large-room installation, the L630U’s combination of brightness, zoom and shift is hard to beat at this price: vertical plus-minus 50 percent and horizontal plus-minus 20 percent lens shift, a 1.35-2.20:1 throw range, and 4K input support. The Epson EB-L630U WUXGA Laser Projector steps up from the L530U’s 5,200 lumens to 6,200 lumens, which matters on very large screens or in rooms that cannot be darkened.

Key Features

• 6,200 lumens laser brightness: 4,340 lumens Extended, for very large screens and bright rooms
• WUXGA 1920 x 1200 resolution: 16:10 image with extra vertical space for documents
• 1.6x optical zoom plus lens shift: throw 1.35-2.20:1, vertical plus-minus 50 percent, horizontal plus-minus 20 percent
• HDBaseT and dual HDMI: long-distance video plus local sources, 4K input support
• Laser life 20,000 / 30,000 hours: minimal maintenance across years of venue use

Best Suited For

The Epson EB-L630U WUXGA Laser Projector is best suited for auditoriums, lecture halls, large conference rooms, museums and houses of worship with a permanent ceiling installation. It fits venues where the screen is very large, the room is bright, or the projector sits far from the screen. It also suits large conference centres running back-to-back events, since the laser source needs no lamp swaps between sessions and the wide lens shift adapts to different screen positions quickly. That reliability matters when downtime is not an option.

Setup and Connection Guide

Ceiling-mount the projector within its 1.35-2.20:1 throw range, run video over HDBaseT for long distances, and use lens shift plus the 1.6x zoom to position the image precisely. Set the laser to extended mode for maximum life, connect LAN for monitoring, and route audio to the venue system where the 10 W speaker is not enough. This is the long-throw model: rooms with limited depth should consider the short-throw L630SU instead.

Frequently Asked Questions

Long throw or short throw?

The Epson EB-L630U WUXGA Laser Projector is the long-throw model at 1.35-2.20:1. If the projector must sit close to the screen, the L630SU short-throw version is the right choice.

What is the difference from the L530U?

The L630U delivers 6,200 lumens versus the L530U’s 5,200 lumens, on the same WUXGA installation platform.

Does it accept 4K input?

Yes, the EB-L630U supports 4K input, downscaled to its WUXGA panel.

Technical Specifications
