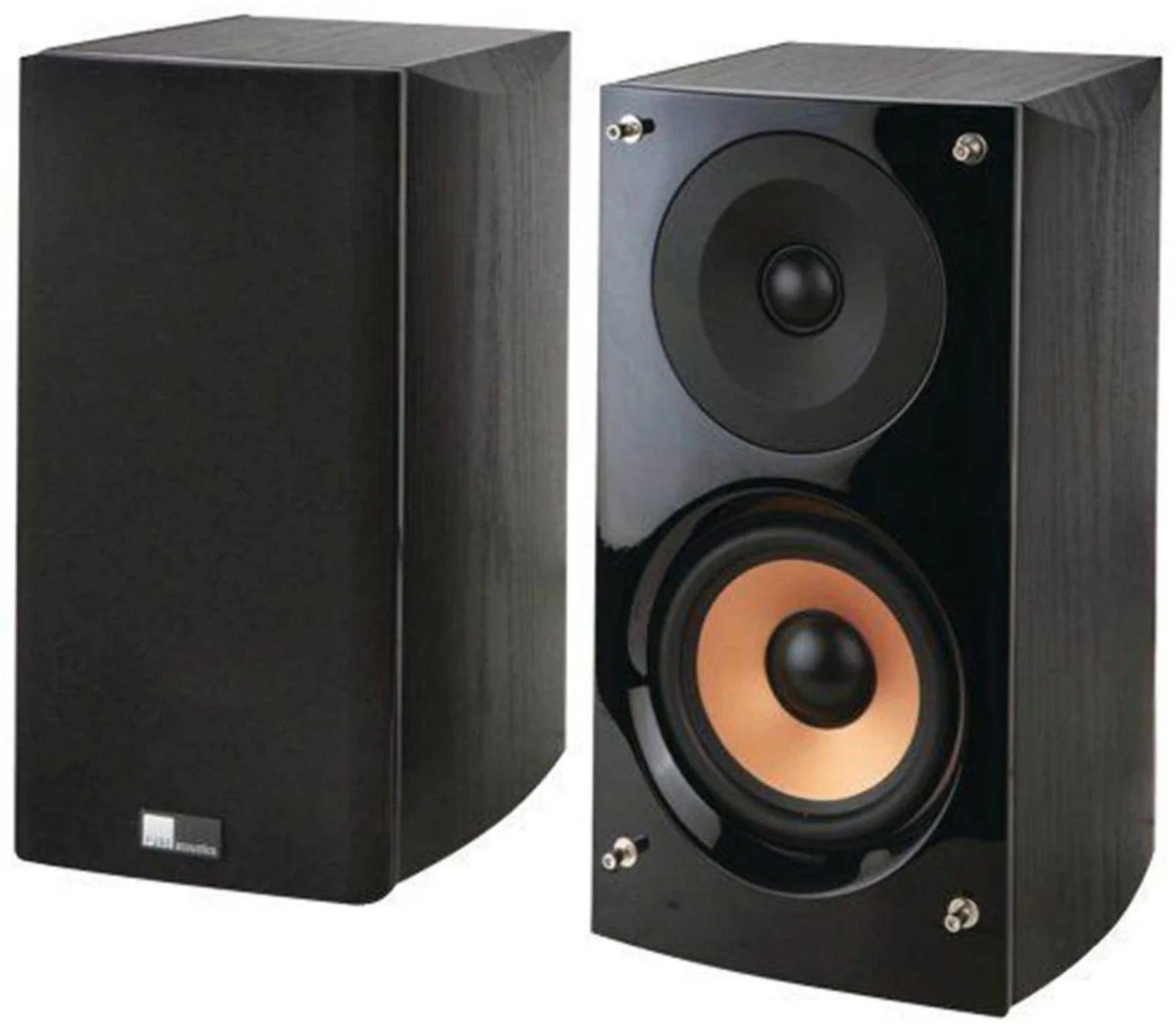

Pure Acoustics Supernova S Bookshelf Speaker

Pure Acoustics Supernova S Bookshelf Speaker

The Pure Acoustics Supernova S is the compact bookshelf and surround model in the Supernova series, a two-way passive speaker built around a single 5.25-inch high-efficiency woofer and a 1-inch silk dome tweeter. Pure Acoustics positions it as the series’ surround speaker, equally at home as a compact stereo pair on shelves or stands in a bedroom, study or small living room. The manufacturer’s owner’s manual rates the Supernova S at 150 watts RMS power handling with 250 watts peak, a frequency response of 65 Hz to 20 kHz, sensitivity of 89 dB and a nominal impedance of 8 ohms with a 4-ohm minimum. A 3,800 Hz crossover hands over from woofer to the oil-cooled silk dome tweeter, whose neodymium magnet keeps the assembly light. The cabinet wears the Supernova range’s black high-gloss front baffle with wood sides and a black grille, giving the small speaker a more finished look than most entry-level surround speakers. Sold as a pair in one carton, the Supernova S is voiced to match the Supernova floorstanders and the Supernova C centre, so a system can be built in stages around it.

Key features

• Two-way bookshelf and surround speaker, sold as a pair
• 5.25-inch high-efficiency woofer with 20 mm KSV voice coil and Y30 ferrite magnet
• 1-inch oil-cooled silk dome tweeter with neodymium magnet
• 150 W RMS power handling, 250 W peak, per the owner’s manual
• 89 dB sensitivity and 65 Hz to 20 kHz frequency response
• Black high-gloss baffle with wood sides, matched to the Supernova series

Driver design and crossover

The woofer is a 5.25-inch high-efficiency cone driven by a 20 mm KSV voice coil on a Y30 ferrite magnet, a specification Pure Acoustics repeats across the Supernova range. High efficiency matters in a small speaker: combined with the 89 dB sensitivity rating, it lets modest AV receivers and stereo amplifiers reach satisfying levels without strain. The tweeter is a 1-inch black silk diaphragm, oil-cooled and fitted with a neodymium magnet, chosen for smooth high frequencies that suit both film effects and long music sessions. A crossover at 3,800 Hz divides the work between the two drivers. Pure Acoustics describes the arrangement as a 2-way DRAV configuration in its series documentation, and the voicing is shared with the larger Supernova models, which is what allows the S to blend as a surround channel beside Supernova front speakers without a tonal step between channels.

As surround speakers and as a stereo pair

In a home theatre, the Supernova S handles side or rear surround duties in 5.1 and 7.1 layouts, where its compact cabinet, roughly 31 centimetres tall, fits on stands, shelves and wall-adjacent furniture that larger speakers cannot use. Its 65 Hz low-frequency limit integrates cleanly with the bass management of any AV receiver: set the channel to small with a crossover around 80 Hz and let a subwoofer carry the deep bass, as with any speaker of this size. As a stereo pair, the same qualities make a neat desktop-adjacent or small-room music system driven by a compact amplifier. The impedance specification, 8 ohms nominal and 4 ohms minimum, is compatible with the great majority of receivers and amplifiers, which simply need to be stable into 4-ohm dips as most modern units are.

Cabinet, finish and placement

The Supernova S cabinet combines a black high-gloss front baffle, described in Pure Acoustics’ catalogue as a piano-style finish, with wood-finish sides and a black grille. The gloss baffle gives the speaker a cleaner, more contemporary face than plain vinyl wraps at this level. Placement follows standard small-speaker practice: tweeters near ear height, the pair spaced symmetrically around the screen or listening position, and a little distance from rear walls to keep the bass tidy. For surround use, position the pair to the sides of or behind the seats as the layout dictates and re-run the receiver’s calibration after any move. The speakers connect with ordinary speaker cable to binding post terminals and require no power of their own, being fully passive.

Building a Supernova system

Pure Acoustics designs the Supernova range as a family: the 1F, 5F and 8F floorstanders for front channels, the C centre speaker with twin 5.25-inch woofers, and the S for surrounds or compact stereo. Starting with a pair of Supernova S speakers and adding the matching centre and a subwoofer later produces a coherent system, because the driver materials, tweeter design and voicing carry across the range. For buyers whose first priority is a small speaker that can start in stereo and later take surround duty without being replaced, that upgrade path is the Supernova S’s strongest practical argument, backed by power handling and sensitivity figures that ask very little of the electronics driving them.

Measured against its published specification, the Supernova S is a sensibly engineered compact speaker: efficient, tolerant of modest amplification, finished to match its bigger siblings and sized for the shelves and stands where surround and small-room stereo speakers actually live.
