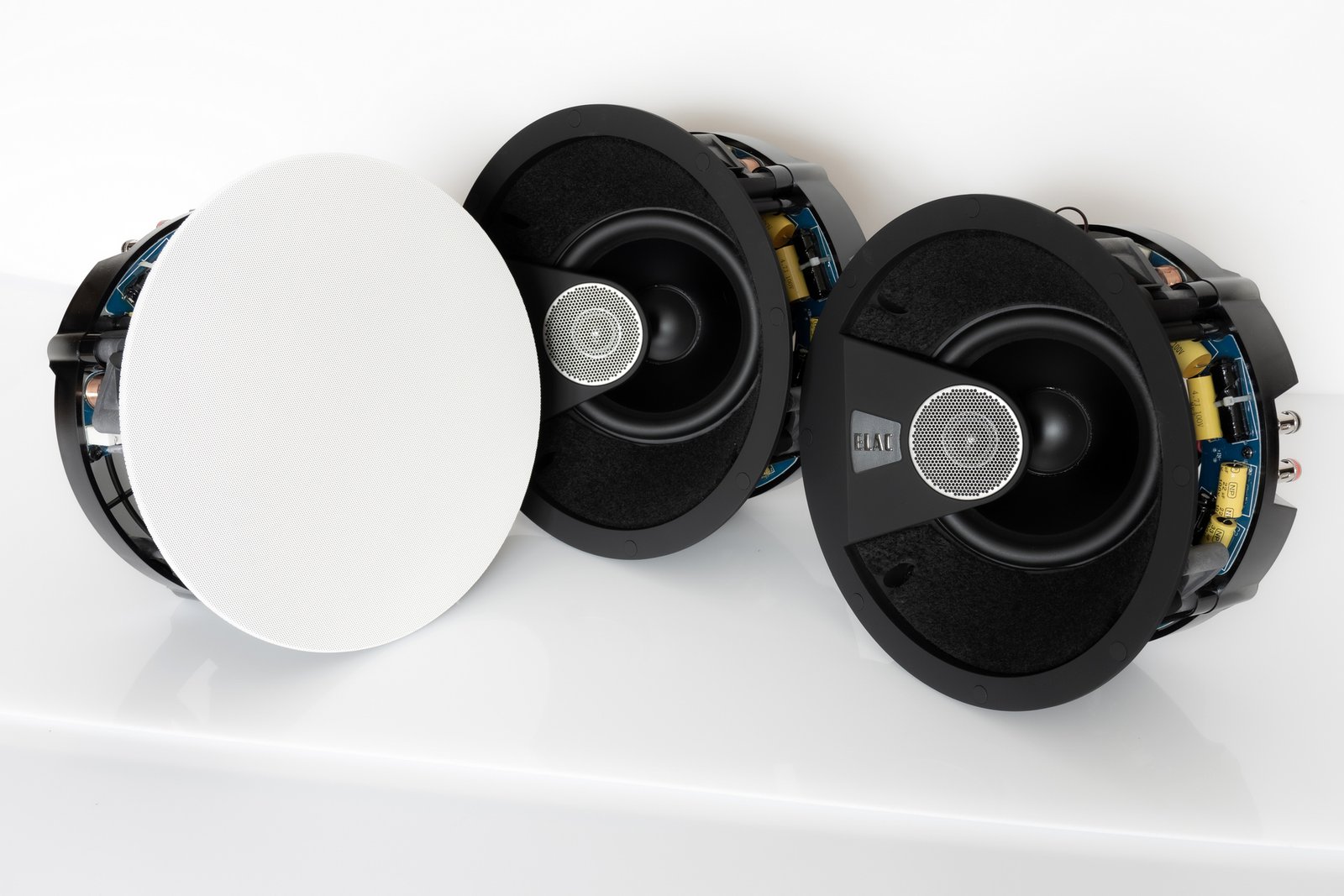

The ELAC IC-VT62-W Angled In-Ceiling Speaker is a Vertex Series II home theatre in-ceiling speaker whose woofer and tweeter are both mounted at a 30-degree angle, and the ELAC IC-VT62-W Angled In-Ceiling Speaker solves the classic ceiling-speaker problem: sound that fires straight down instead of at the listener. By aiming the whole driver array toward the seating area, it keeps dialogue, music and effects focused and natural, which is exactly what a ceiling-based home theatre needs from its front and surround channels.
A swivelling tweeter alone cannot fix ceiling-speaker directivity, because the woofer still fires at the floor, and the ELAC IC-VT62-W Angled In-Ceiling Speaker addresses both drivers at once with its angled baffle. The 6.5-inch aluminium cone and custom silk-dome tweeter come from the same Vertex II parts family as the matching in-wall models, so a full Vertex II theatre stays tonally matched from wall to ceiling, and the audiophile-grade crossover keeps the handover between drivers smooth. It is a proper theatre speaker that happens to live in the ceiling, not a background-music speaker pressed into theatre duty.
Key Features

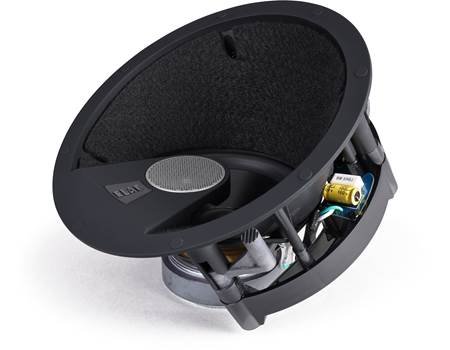

30-degree angled baffle: Both woofer and tweeter aim at the listening area instead of firing straight down.
6.5-inch aluminium woofer: Rigid, lightweight cone for dynamic, accurate midrange and bass.
1-inch cloth-dome tweeter: Custom silk-dome design for low mass and smooth, extended highs.
Matched Vertex II family: Shares components with the Vertex II in-wall range for a consistent theatre sound.
Paintable magnetic grille: Slim metal grille that disappears into the ceiling once painted.
Theatre-ready power handling: 50 watts nominal and 120 watts peak from 30 to 120 watt amplifiers.
Best Suited For
The ELAC IC-VT62-W Angled In-Ceiling Speaker suits ceiling-based home theatres, media rooms and living rooms where in-wall speakers are impractical and the front or surround channels must come from above. It is a passive speaker requiring an AV receiver or amplifier, and because it is sold singly, a full theatre needs one per channel position, all angled toward the seats.
Setup and Connection Guide
Plan the layout so each ELAC IC-VT62-W Angled In-Ceiling Speaker angles toward the main seating, not toward the walls, and mark the 242 mm cut-out with the included template, allowing 173 mm of depth for the angled assembly. Run speaker cable, connect to the spring-clip terminals with correct polarity, fit the speaker with its tabs folded in and tighten until firm, then press the magnetic grille into place. Set the receiver’s speaker layout to ceiling or height channels as appropriate, run room calibration, and check that dialogue stays anchored to the screen rather than floating overhead.
Frequently Asked Questions
Why angled instead of a normal in-ceiling speaker?
A normal ceiling speaker fires straight down, so listeners off to the side hear a dulled, distant sound. The angled baffle aims both drivers at the seats for a direct, focused presentation.
Is the ELAC IC-VT62-W Angled In-Ceiling Speaker sold singly or as a pair?
Singly, as one speaker per unit.
Does it match the Vertex II in-wall speakers?
Yes. It uses the same Vertex II driver family and crossover philosophy, so wall and ceiling channels stay tonally matched.
Technical Specifications
Brand
ELAC
Model
IC-VT62-W
Series
Vertex Series II
Type
2-way, rear side open in-ceiling speaker, angled baffle
2-way, rear side open in-ceiling speaker, angled baffle
Tweeter
1-inch cloth-dome tweeter
Woofer
6.5-inch aluminium cone
Driver angle
Woofer and tweeter mounted at 30 degrees
Crossover frequency
2,100 Hz
Frequency response
45 Hz to 20,000 Hz
Sensitivity
87 dB at 2.83 V/1 m
Recommended amplifier power
30 to 120 watts per channel
Power handling
50 watts nominal / 120 watts peak
Nominal impedance
6 ohms
Terminals
Heavy-duty metal spring clip
Finish
Black baffle / white grille
Grille
Metal, magnetic, paintable
Diameter
265 mm
Cut-out diameter
242 mm
Mounting depth
173 mm
Accessories included
Cutout template, manual
Model / SKU
ELAC-IC-VT62-W
Category
Ceiling Speakers
Condition
Brand new, sealed box
Warranty
Official manufacturer warranty (India)
GST invoice
Yes, input credit available
