Edifier T5 Powered Subwoofer – 70w Rms Active Woofer With 8 Inch Driver And Low Pass Filter

Edifier T5 Powered Subwoofer 70W RMS 8-inch

The Edifier T5 is a powered subwoofer built to give bookshelf speakers and home theatre systems the low-frequency foundation they cannot produce on their own. A built-in 70W RMS amplifier drives an 8-inch long-throw front-firing woofer, extending the response down to 38Hz so film effects, electronic music and the bottom octaves of acoustic instruments carry real weight. An adjustable low-pass filter and a phase switch let you blend the T5 with almost any main speakers, and stereo RCA inputs and outputs make it easy to insert into a system, including powered speakers with a sub out. The thick MDF cabinet keeps enclosure resonance out of the sound.

Key features

• 70W RMS built-in amplifier matched to the driver
• 8-inch long-throw front-firing woofer
• Frequency response from 38Hz to 200Hz
• Adjustable low-pass filter for blending with main speakers
• Phase switch (0 and 180 degrees) for correct timing with the system
• Stereo RCA input and RCA line output for flexible connection
• Thick MDF enclosure to reduce cabinet resonance
• Automatic standby to save power when no signal is present

Bass performance

Small and medium bookshelf speakers typically roll off somewhere between 55Hz and 70Hz. Everything below that — the rumble of a film soundtrack, the fundamental of a bass guitar’s lowest notes, the synth sub-bass in electronic music — is simply missing. The T5 fills that gap with a driver and amplifier designed only for low frequencies. The front-firing layout fires bass directly into the room, and the long-throw 8-inch cone moves enough air to give effects physical presence in small and medium rooms without the strain that comes from an undersized driver being pushed too hard. With a signal-to-noise ratio of 85dB(A) or better, the T5 stays quiet between passages.

Dialling in the crossover and phase

Good subwoofer integration is about the handover. The T5’s low-pass filter is adjustable across the bass range (50Hz to 150Hz), so you set the point where the subwoofer takes over from your main speakers: lower for large floorstanders, higher for compact satellites. The phase switch flips output between 0 and 180 degrees so the subwoofer’s wavefront arrives in step with the main speakers at your listening position; the correct setting is simply the one that sounds fuller at the crossover point. A volume control on the unit sets the subwoofer’s level against the rest of the system. Take ten minutes over these three controls and the subwoofer disappears as a separate box, leaving a single, larger-sounding system.

Connections and placement

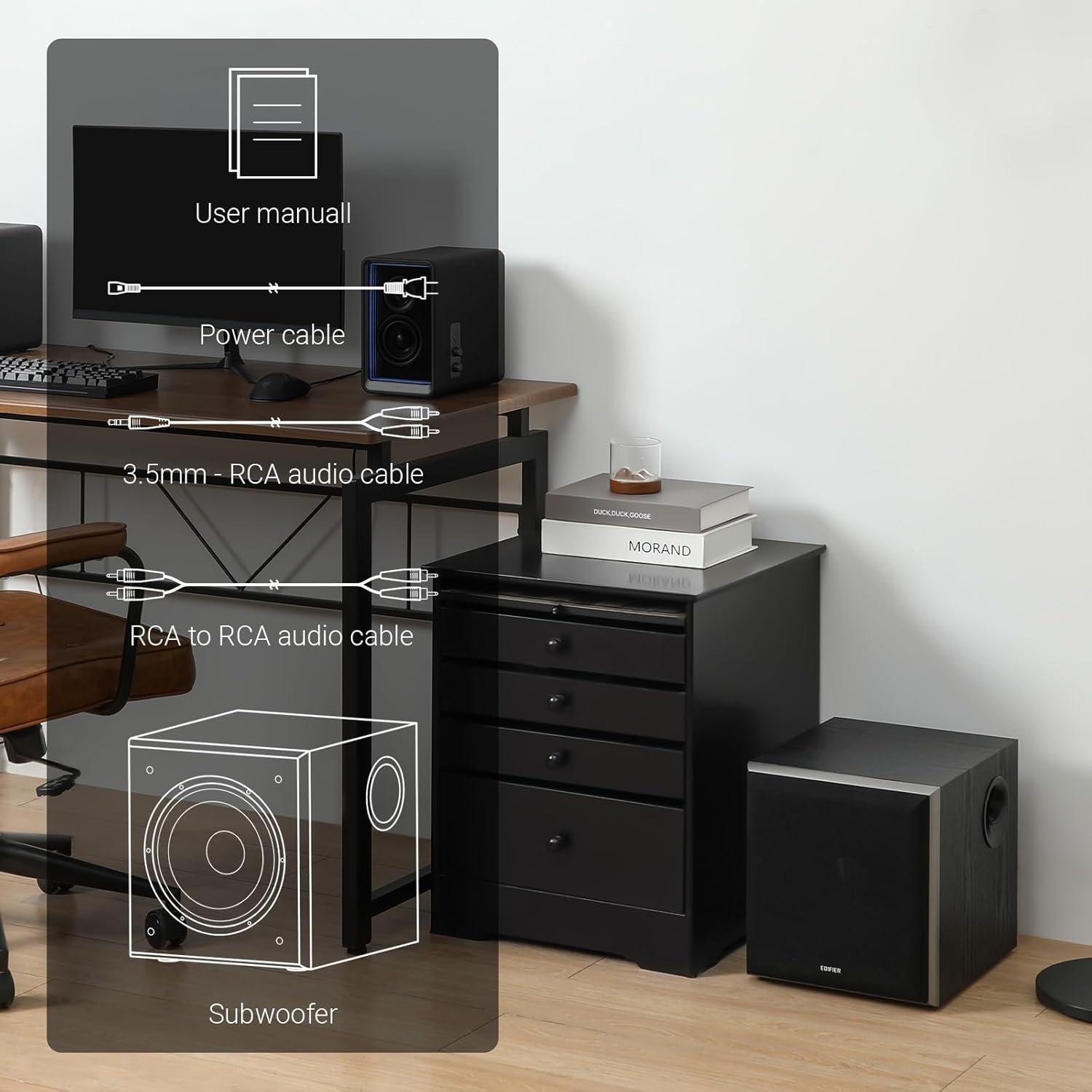

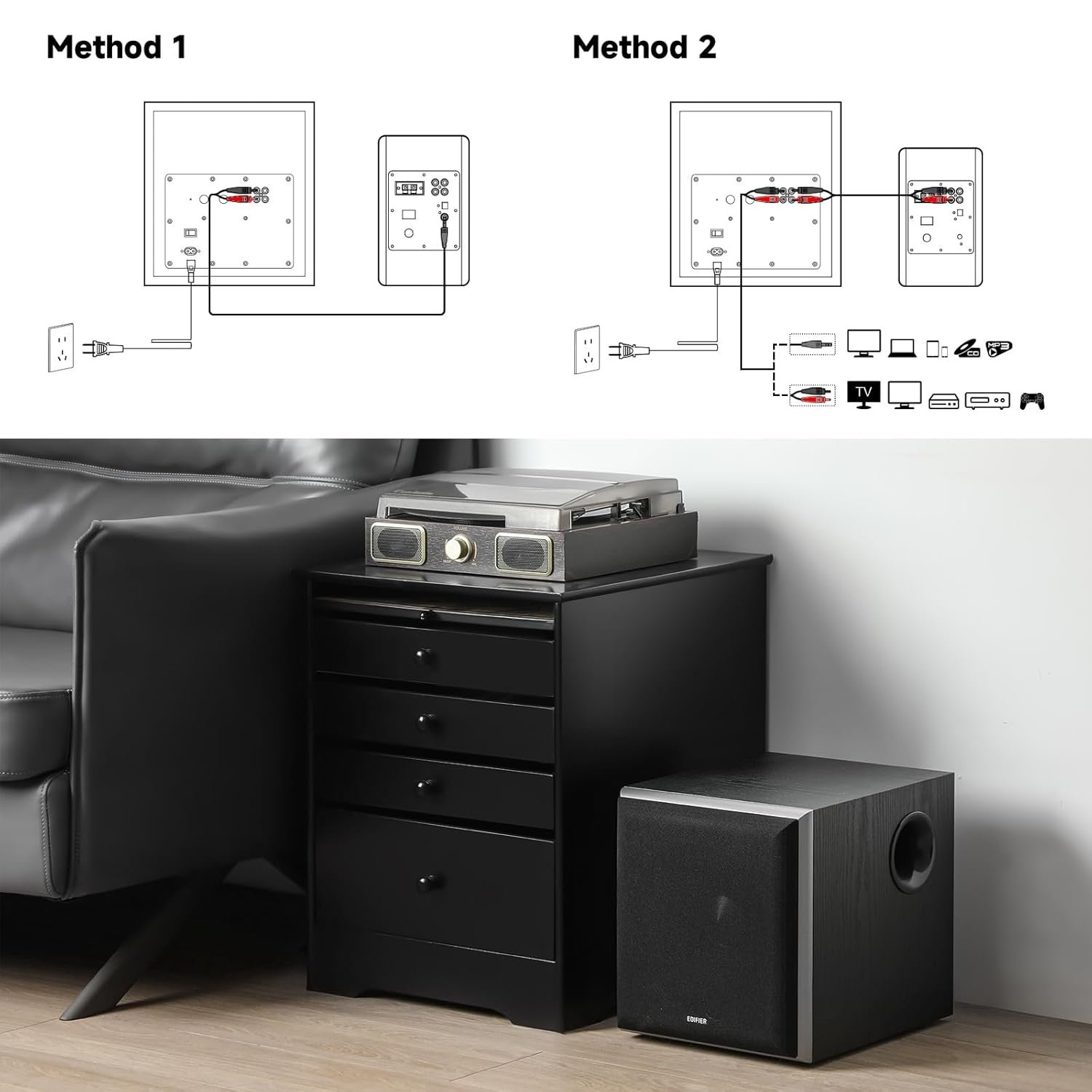

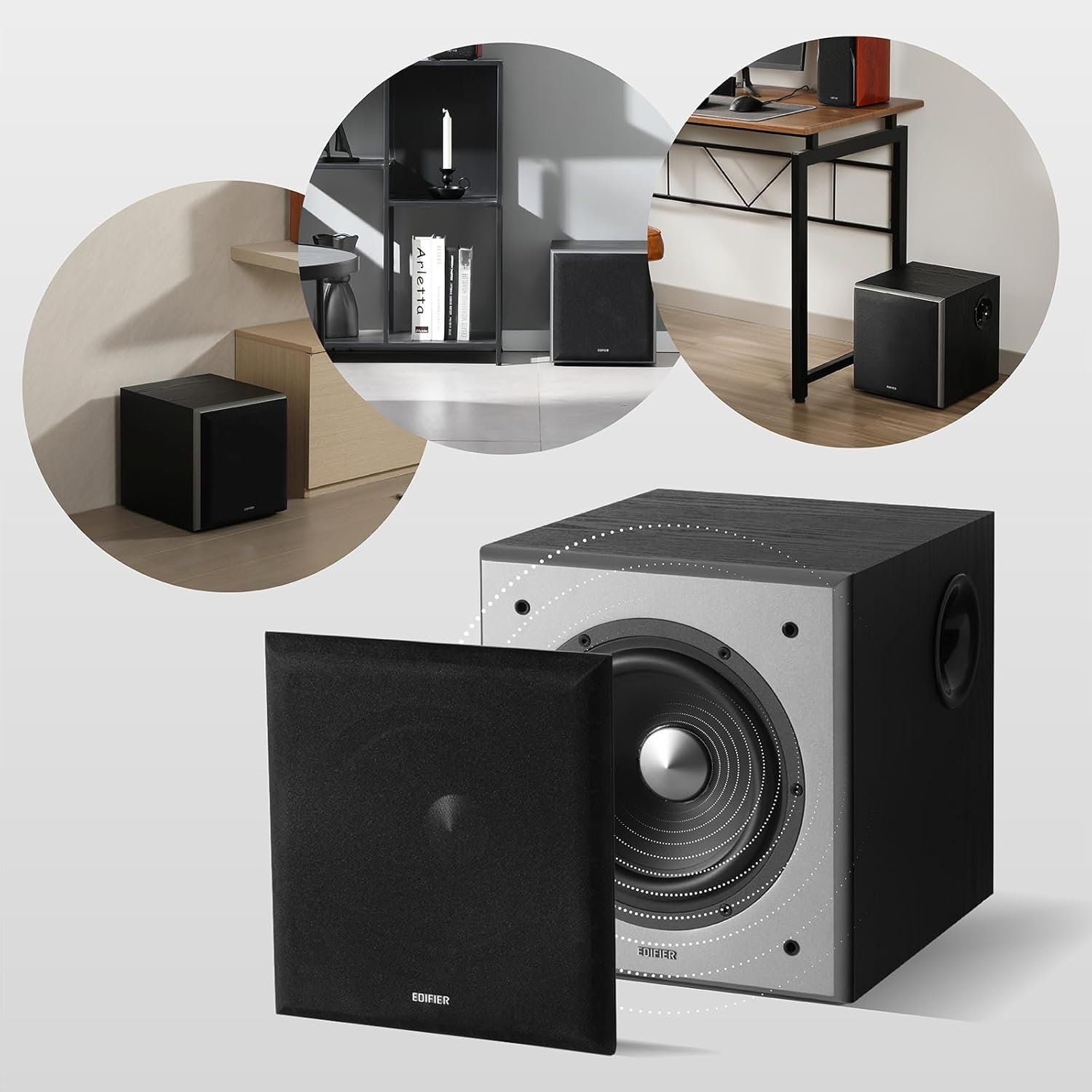

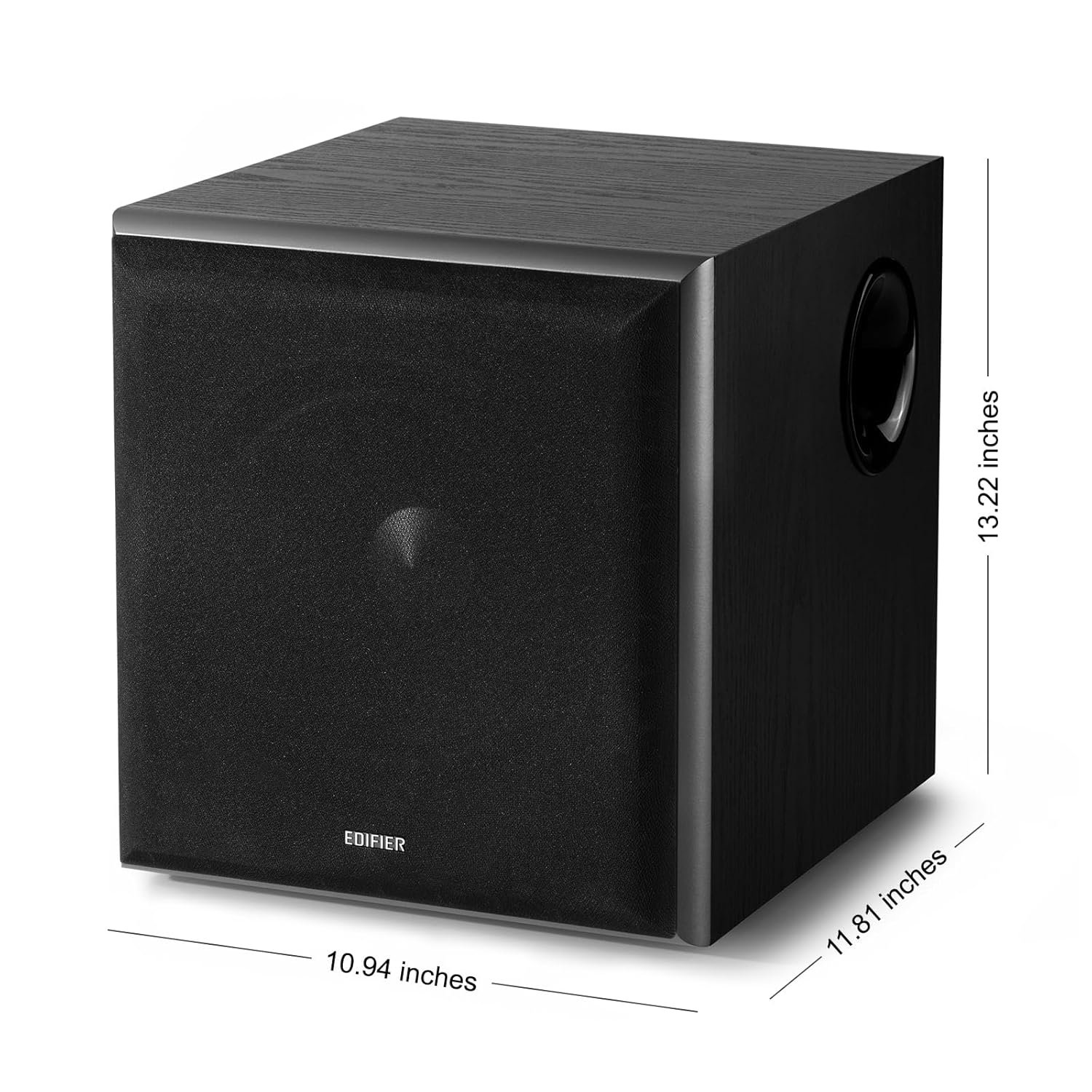

Connection is by stereo RCA. Use the sub out or pre-out of an AV receiver, amplifier or powered speaker, or feed a line-level source into the T5 and pass it on to powered speakers through the T5’s RCA line output. The cabinet measures 278 x 300 x 336 mm, compact enough to sit beside a media unit or under a desk. Floor placement near a wall adds natural reinforcement if you want more output; moving it out into the room tightens the sound. Automatic standby switches the amplifier to a low-power state when the music stops.

If your speakers sound good but feel light, the T5 is the straightforward fix: genuine extension to 38Hz, proper integration controls and a cabinet built to stay out of the sound.
