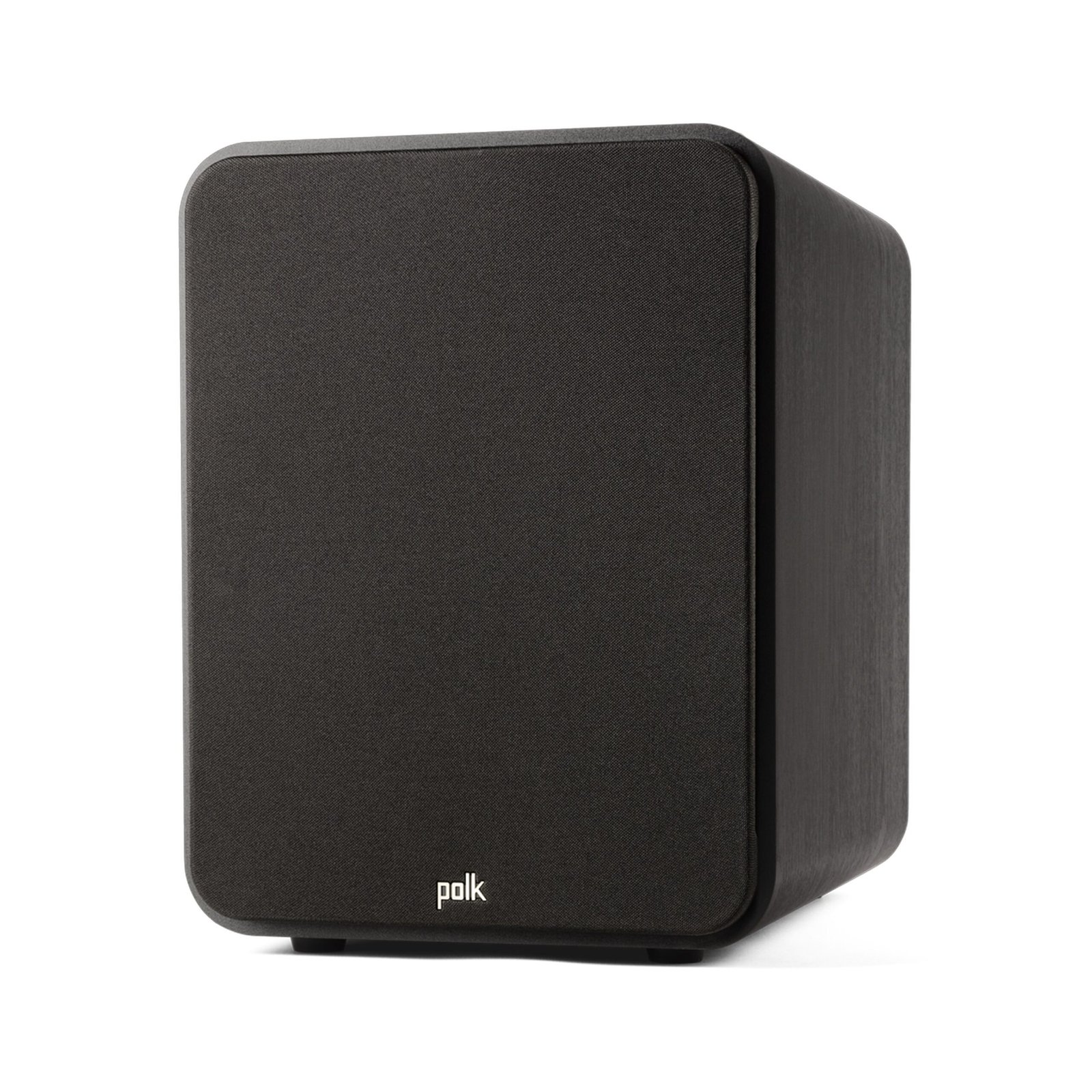

Polk Audio Signature Elite ES12 12-inch Powered Subwoofer

Polk Audio Signature Elite ES12 12-inch Powered Subwoofer

The Polk Signature Elite ES12 is the largest subwoofer in Polk’s Signature Elite range, made for full-size home theatre and music systems. A forward-firing, long-throw 12-inch woofer with a mineral-filled polypropylene cone is driven by a Class D amplifier rated at 300 watts RMS continuous. Polk publishes a frequency response of 22 Hz to 250 Hz at -3 dB and 18 Hz to 350 Hz at -10 dB, so the ES12 reaches the deep bass that film soundtracks use for weight and impact, while its control systems keep that output usable in a real room.

Key features

• Forward-firing long-throw 12-inch mineral-filled polypropylene woofer
• 300 W RMS continuous Class D amplifier
• Frequency response of 22 Hz to 250 Hz (-3 dB), extending to 18 Hz (-10 dB)
• Vented cabinet with dual internal Power Ports
• Time-Smart Phase Control in 45-degree steps with LED indicators
• 32-bit floating-point DSP with precision limiters
• Adjustable 4th-order low-pass filter, 50 to 160 Hz plus LFE setting

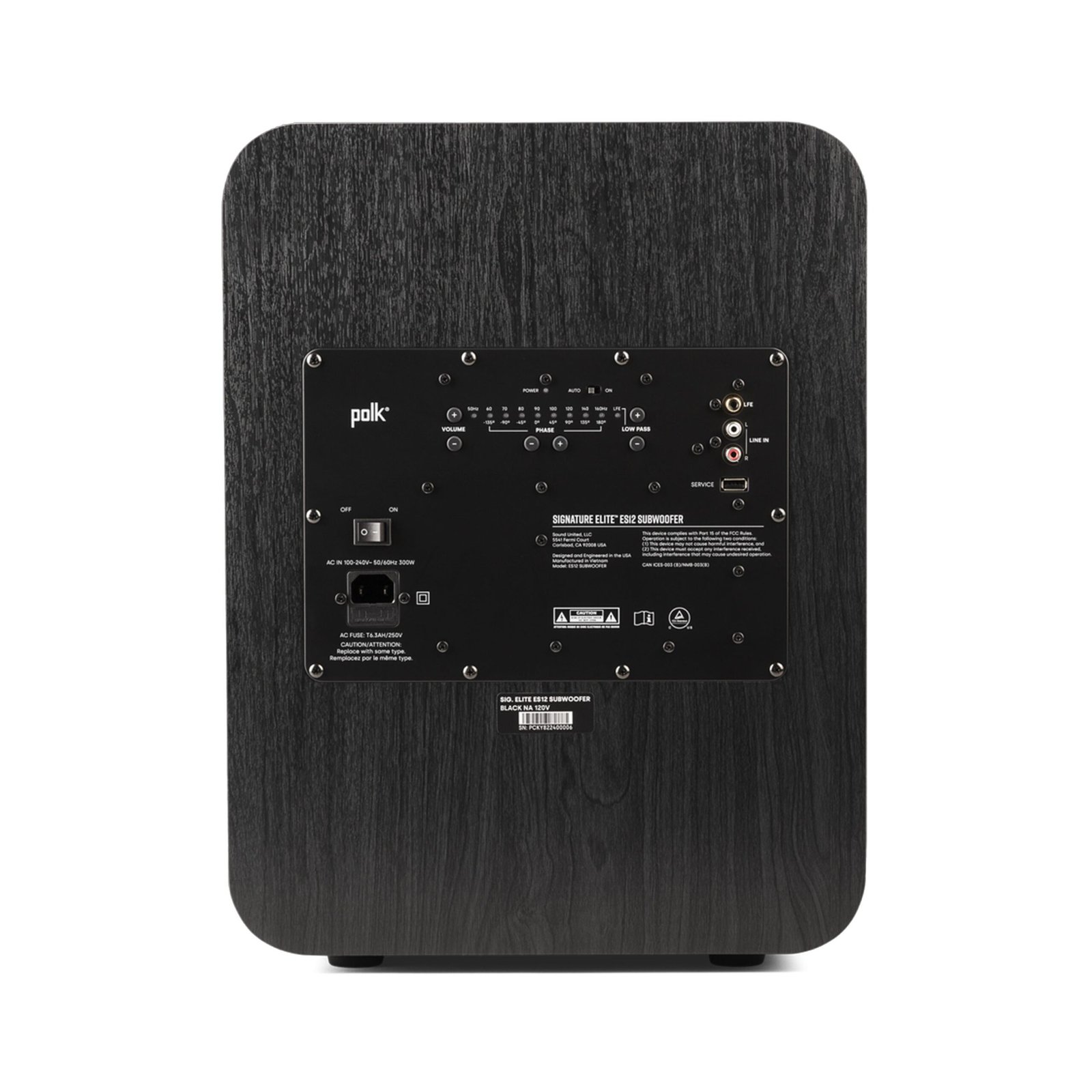

• Line-level RCA (left and right) and single RCA LFE inputs

Power Port: deep bass without port noise

A vented cabinet extends low-frequency output, but at high levels the air moving through a conventional port becomes turbulent and adds noise of its own. Polk’s Power Port design shapes the airflow to keep it smooth, and the ES12 uses two internal Power Ports. The result is deeper, cleaner bass with less distortion from a cabinet that can sit close to a wall, because the woofer fires forward and the ports work inside the enclosure. The cabinet itself is acoustically optimised, with a rigid structure that keeps panel vibration from colouring the output, and it weighs 21.6 kg.

Time-Smart Phase Control and DSP

Whether a subwoofer sounds integrated or detached is mostly a question of timing: its output has to arrive in step with the main speakers at the crossover. Time-Smart Phase Control provides 360 degrees of phase adjustment centred on the low-pass filter setting, in 45-degree steps from -135 degrees to +180 degrees, shown on LED indicators. The controls are pushbuttons for volume, low-pass filter and phase, so settings are repeatable rather than approximate. Behind them, 32-bit floating-point processing with group-delay-minimising filters and precision limiters keeps transients crisp and protects the woofer at high output.

Connections and everyday use

An AV receiver connects to the single RCA LFE input, which bypasses the internal filter, while stereo line-level RCA inputs serve two-channel systems using the adjustable 50 to 160 Hz low-pass filter. The auto power function switches the ES12 on when a signal arrives and returns it to a low-power state when the system is idle, with an always-on option on the main power rocker. The feet are permanently installed, and the narrow 362 mm width helps the cabinet fit beside furniture in rooms where a wide subwoofer would not.

Where the ES12 fits

The ES12 is the low-frequency partner for Signature Elite speakers in larger rooms, handling the LFE channel of a surround system or the bottom octaves of a stereo setup. Its output and extension suit rooms where the smaller ES8 and ES10 models run out of headroom.

Full specifications are listed in the Additional Information tab.
