MX 1723 4-Pole EP Stereo Male Connector (3.5 mm)

MX 1723 4-Pole EP Stereo Male Connector (3.5 mm)

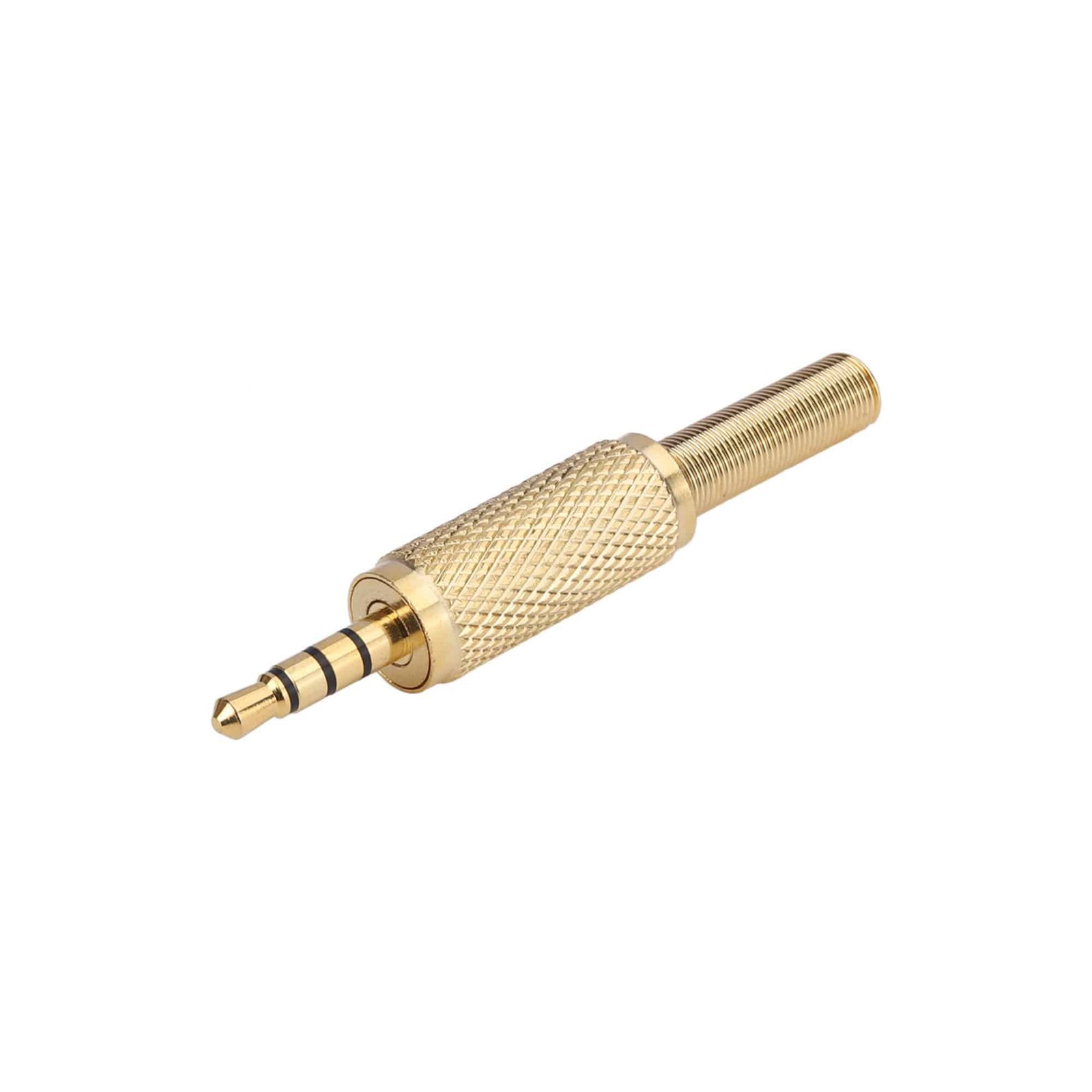

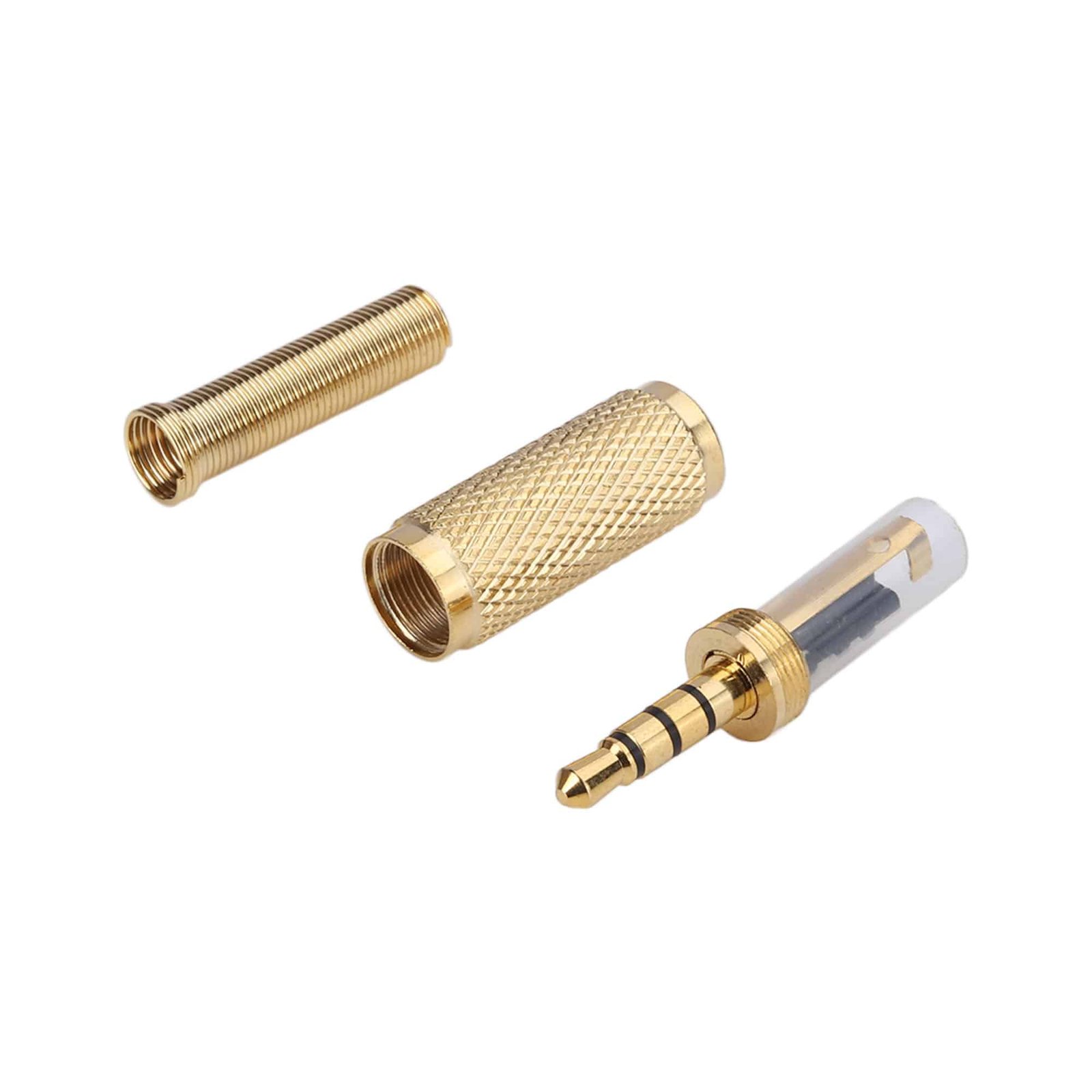

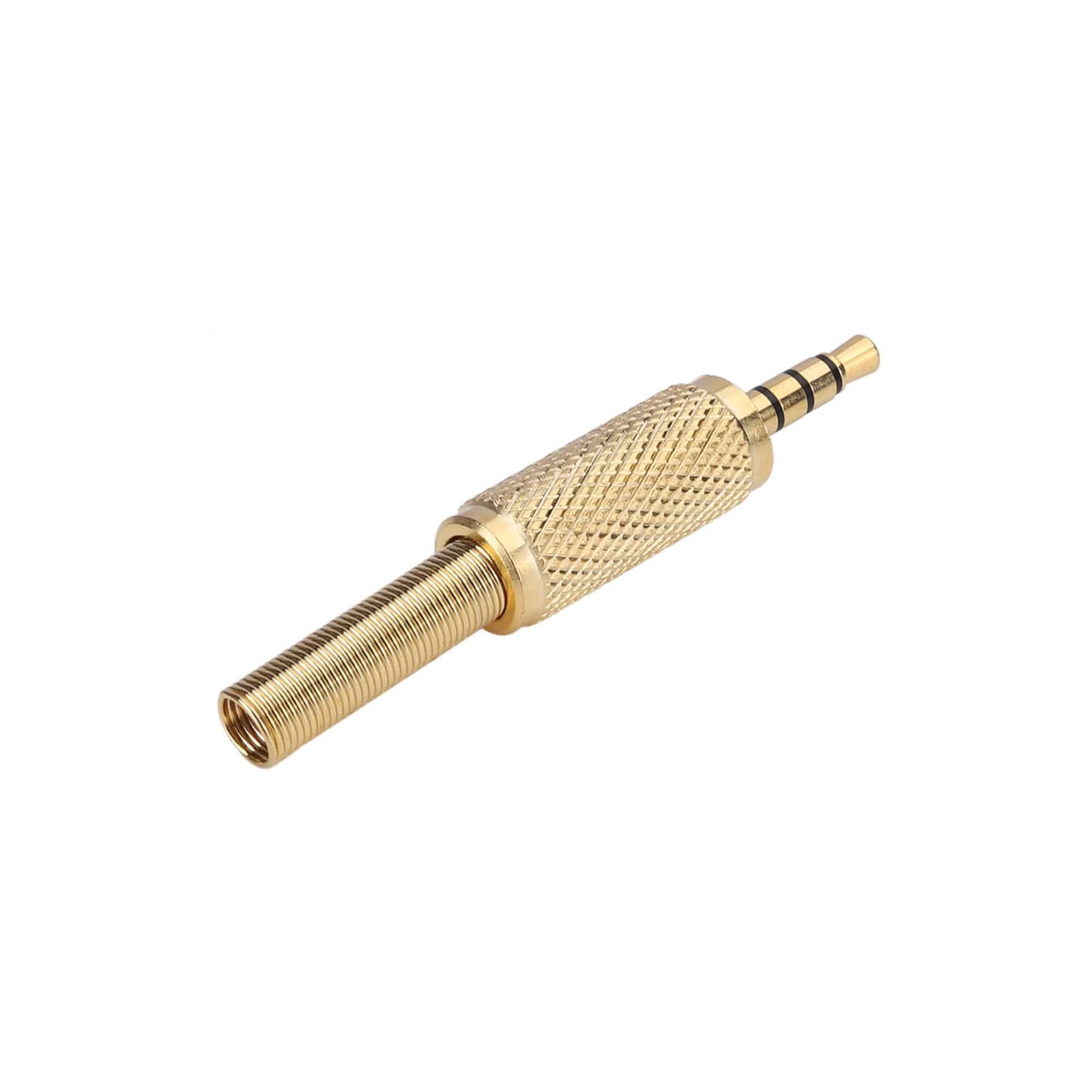

The MX 1723 is a bare 3.5 mm 4-pole stereo plug – the connector itself, with solder terminals, for making your own cables or repairing damaged ones. Four poles (tip, two rings and sleeve, the TRRS layout) carry left audio, right audio, ground and the microphone/control channel, which is why this is the plug used on phone headsets and any cable that must carry a mic signal as well as sound.

Key Features

• 3.5 mm 4-pole (TRRS) male plug
• Carries stereo audio plus microphone or in-line control channel
• Solder terminals for a permanent, serviceable connection
• Standard size – fits the 3.5 mm sockets on phones, laptops and headsets
• Ideal for repairs and custom-length cable builds

When a Bare Connector Is the Right Answer

Most headphone and aux cables fail at the plug, not in the middle: the moulded strain relief gives up after thousands of bends and one channel starts cutting out. Replacing the whole cable is one option – but for a good headset or a custom installation, fitting a fresh plug restores the original cable for a fraction of the cost. Technicians and installers also build with bare connectors when the job needs a length no shop sells, or a cable dressed exactly to a panel or desk layout. The 4-pole layout matters here: a 3-pole stereo plug would pass music but drop the microphone line, so headsets, gaming cables and phone cords must be repaired with a TRRS plug like this one to keep call and control functions alive.

Fitting Notes

Solder the four conductors to the terminals in the standard TRRS order for your headset’s wiring standard (CTIA is the common one for modern phones), test continuity and channel identity before closing the barrel, and add heat-shrink or the plug’s own strain relief so the repair outlasts the original. A low-wattage iron and a steady hand are all the tooling required.

Full specifications are listed in the Additional Information table.
