The JBL Studio 6 66LCR is a dual-woofer in-wall loudspeaker built for the front stage of a dedicated home cinema. The LCR designation describes its role precisely: a single model that can serve as the left, centre or right channel, mounted vertically for left and right duty or horizontally for the centre channel beneath or above a screen. Because all three front positions use identical drivers, crossover and voicing, dialogue, music and effects pan across the screen with consistent timbre instead of changing character as they move. Once installed, only a slim, paintable grille remains visible, so the room keeps a clean architectural finish while the soundstage itself stays full-sized.

The design draws directly on JBL’s professional cinema heritage. A 1-inch high-frequency compression driver loaded by a High Definition Imaging (HDI) waveguide handles the top end, a combination JBL uses to deliver wide, even dispersion and clear dialogue intelligibility across a broad seating area. Below it, two 6.5-inch PolyPlas woofers share the midrange and bass workload, giving the 66LCR the output and dynamic headroom that a single-woofer in-wall speaker cannot match in a larger theatre room.

Key features

• True LCR flexibility: One model covers left, centre and right channels, installed vertically or horizontally for a perfectly matched front stage.
• Dual 6.5-inch PolyPlas woofers: Two 165 mm woofers deliver articulate midrange and bass output suited to demanding film soundtracks.
• 1-inch compression driver: High-frequency compression driver keeps dialogue crisp, detailed and easy to follow at cinema levels.
• HDI waveguide: High Definition Imaging waveguide technology provides smooth, uniform response across a wide listening area.
• 45 Hz to 20 kHz response: Full-range coverage from a 45 Hz low-frequency extension through to 20 kHz.
• Front level controls: Tweeter and woofer level adjustments on the baffle allow the response to be trimmed for the room and mounting position.

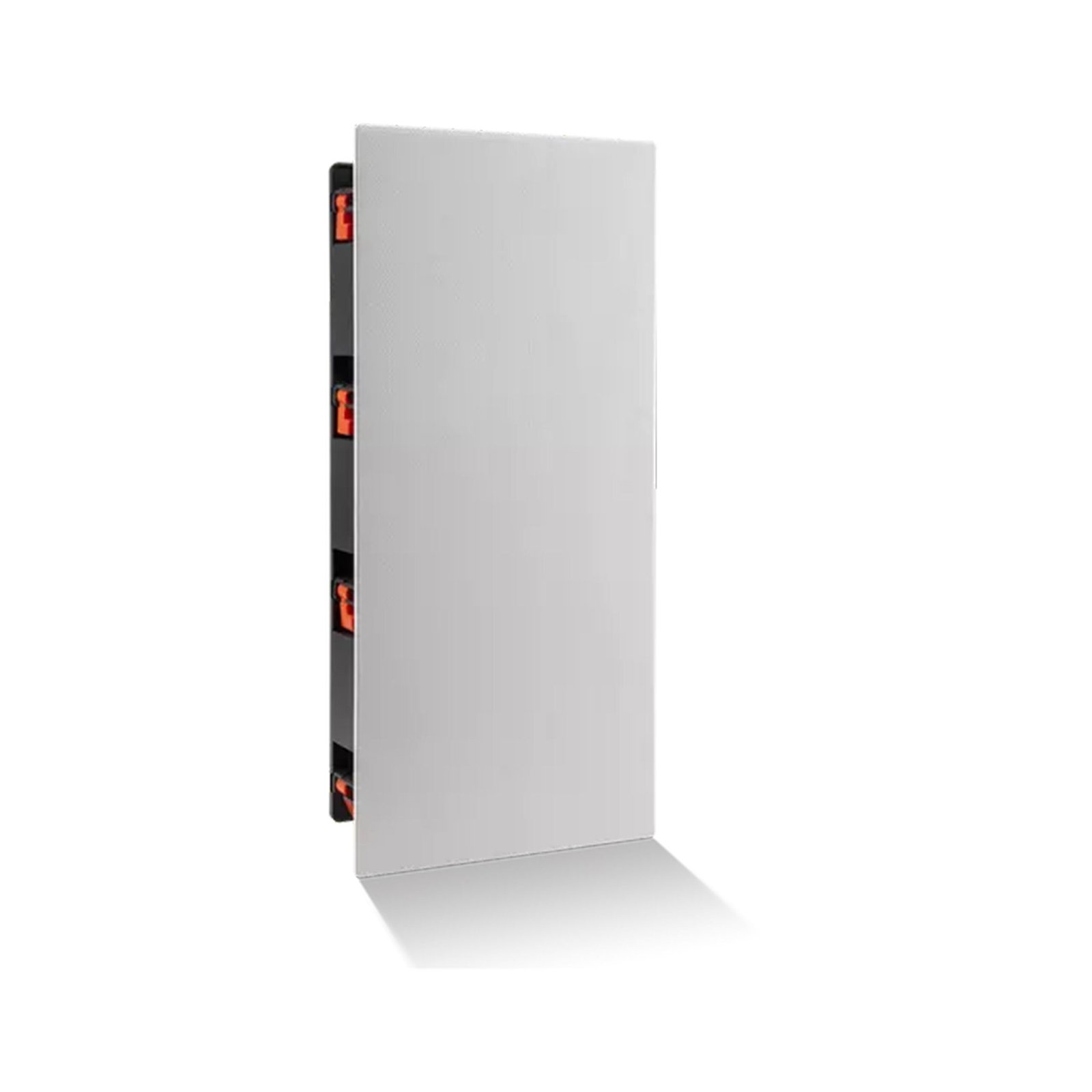

• Zero-bezel magnetic grille: Paintable, magnetically attached grille sits almost flush for a visually discreet installation.
• Shallow mounting depth: 95 mm mounting depth fits standard wall cavities without special construction.

Driver design and sound character

Compression drivers are standard in commercial cinemas because they combine efficiency with control, and the 66LCR brings that approach into the home. The HDI waveguide shapes the driver’s output so that high frequencies spread evenly rather than beaming at a single seat, which means viewers sitting off to the sides still hear balanced dialogue and effects. The twin PolyPlas woofers use a treated cone material chosen for stiffness and low distortion, and working as a pair they move more air with less excursion per driver. The result is a front stage that stays composed during loud action sequences while retaining the detail needed for quiet, dialogue-led scenes. A 2.5 kHz crossover hands over between woofers and compression driver in a region where the waveguide maintains consistent directivity.

Tuning for the room

In-wall speakers interact strongly with their surroundings, so JBL fits level controls behind the grille. The tweeter control offers cut and boost positions to compensate for reflective or absorbent rooms, while the woofer control can reduce low-frequency output when the speaker sits close to a corner or boundary that would otherwise thicken the bass. With 91 dB sensitivity and a 6-ohm nominal impedance, the 66LCR does not demand exotic amplification; JBL rates power handling at 50 W RMS and 200 W peak, with a recommended amplifier range of 25 to 150 W, which covers most multichannel AV receivers and dedicated power amplifiers used in custom installations.

Installation

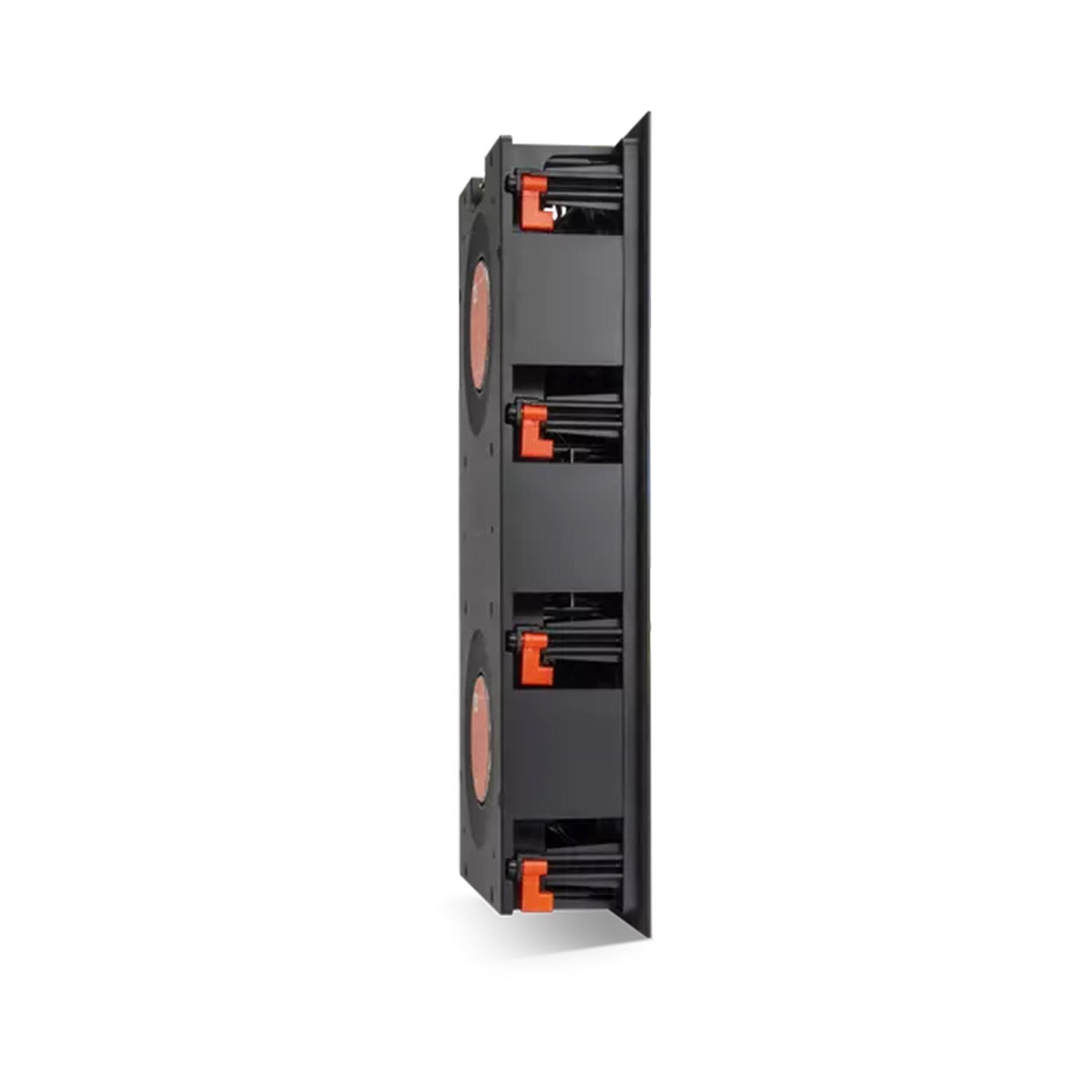

The speaker uses a dog-leg clamping mounting system designed for straightforward fitting into a prepared cutout of 180 mm by 443 mm, with a finished grille size of 209 mm by 473 mm. The shallow 95 mm mounting depth suits typical stud-wall construction. Because the same unit works in either orientation, installers can stock and specify one model for the entire front wall, simplifying both the build and any future matching of surround channels from the Studio 6 architectural range.

For dedicated theatre rooms where visible loudspeakers are not wanted but front-channel performance cannot be compromised, the Studio 6 66LCR offers a coherent answer: matched LCR voicing, compression-driver clarity and dual-woofer dynamics, all concealed behind a paintable zero-bezel grille.
