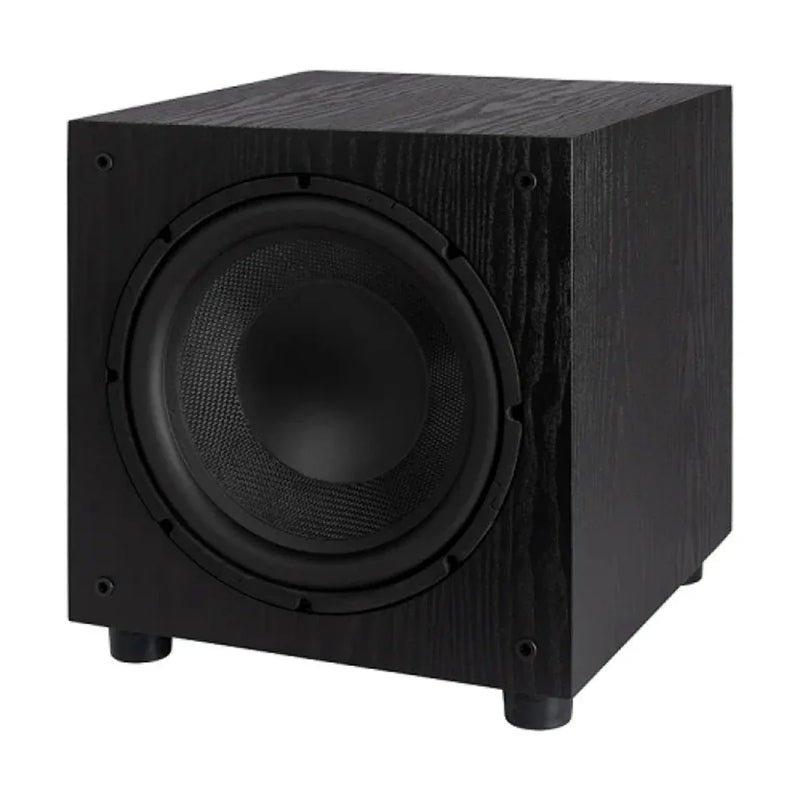

ELAC AJ1020 10-inch Powered Subwoofer

ELAC AJ1020 10-inch Powered Subwoofer

The ELAC AJ1020 is a compact powered subwoofer built to give stereo and home theatre systems the low-frequency foundation that bookshelf and satellite speakers cannot produce on their own. It pairs a 10-inch high-excursion woofer with a built-in Class AB amplifier rated at 120 watts peak (60 watts RMS), so it connects straight to the subwoofer or pre-out of an AV receiver or stereo amplifier with no external power amp required. Bass response extends down to 37 Hz, which is deep enough to add real weight to film soundtracks and to fill in the bottom octaves of music.

The AJ1020 comes from ELAC’s Debut line of loudspeakers, a range designed to deliver measured, honest performance at accessible prices. Everything about this subwoofer follows that approach: a rigid CARB2-rated MDF cabinet, a dual flared-port bass reflex design and controls that let you blend the sub precisely with your main speakers rather than simply turning the bass up.

Key Features

• 10-inch high-excursion woofer for long-throw, low-distortion bass
• Built-in Class AB amplifier, 120 W peak / 60 W RMS
• Frequency response of 37 Hz to 200 Hz
• Continuously variable crossover from 40 Hz to 150 Hz for a seamless blend with main speakers
• Bass reflex enclosure with dual flared ports to reduce port noise

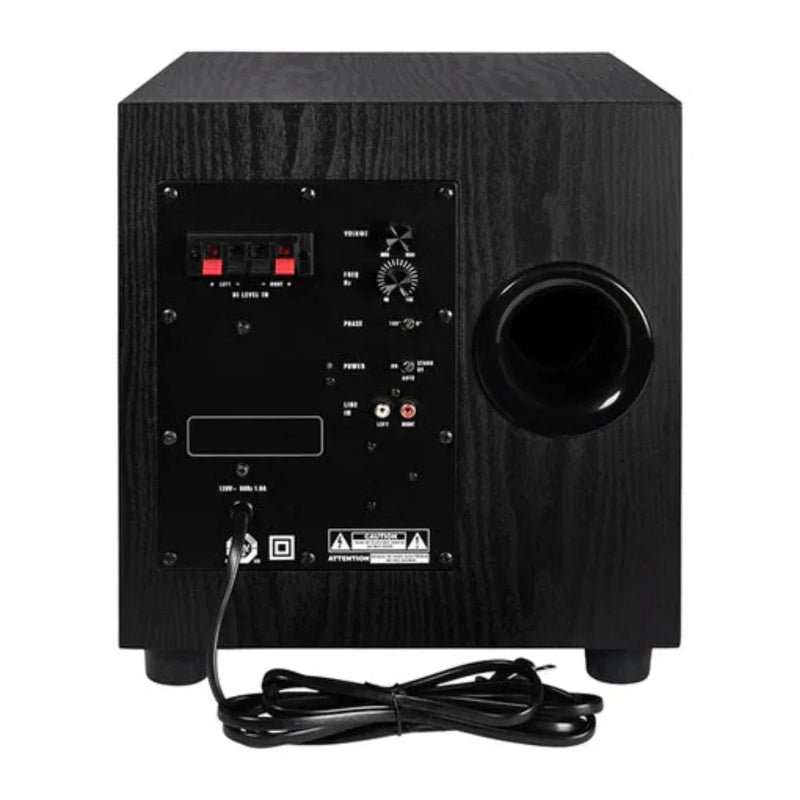

• LFE / line-level RCA input for AV receivers and stereo amplifiers
• Compact CARB2-rated MDF cabinet in a Black Ash vinyl finish

Why a Separate Subwoofer Matters

Most bookshelf speakers roll off well above the deepest bass in a recording, so the lowest octaves of a film score, a kick drum or an organ pedal note simply never reach the listener. A powered subwoofer takes over that entire range with a driver and amplifier designed only for low frequencies. With its crossover set where your main speakers naturally fade, the AJ1020 fills in underneath them, which also relieves your main speakers and amplifier of the hardest part of the signal and lets them play cleaner at higher levels.

Placement and Setup

The variable 40–150 Hz crossover and level control make it straightforward to integrate the AJ1020 with almost any speaker package. Start with the subwoofer near a front corner of the room, where boundary reinforcement adds output, set the crossover to around 80 Hz with a typical AV receiver (or let the receiver’s bass management handle it over the LFE input) and adjust the level so the bass supports the system without drawing attention to itself. The compact footprint — roughly 31 cm wide and 36 cm tall — makes it easy to tuck beside a media unit or sofa in smaller rooms.

Where It Fits

The AJ1020 suits compact home theatre systems built around Debut or similar bookshelf speakers, stereo setups in apartments where a large subwoofer would dominate the room, and desktop-to-living-room upgrades where the goal is fuller, more physical sound rather than maximum output. The full technical specification is listed in the Additional Information tab.
